CK22/CK22H
HST
MANUAL

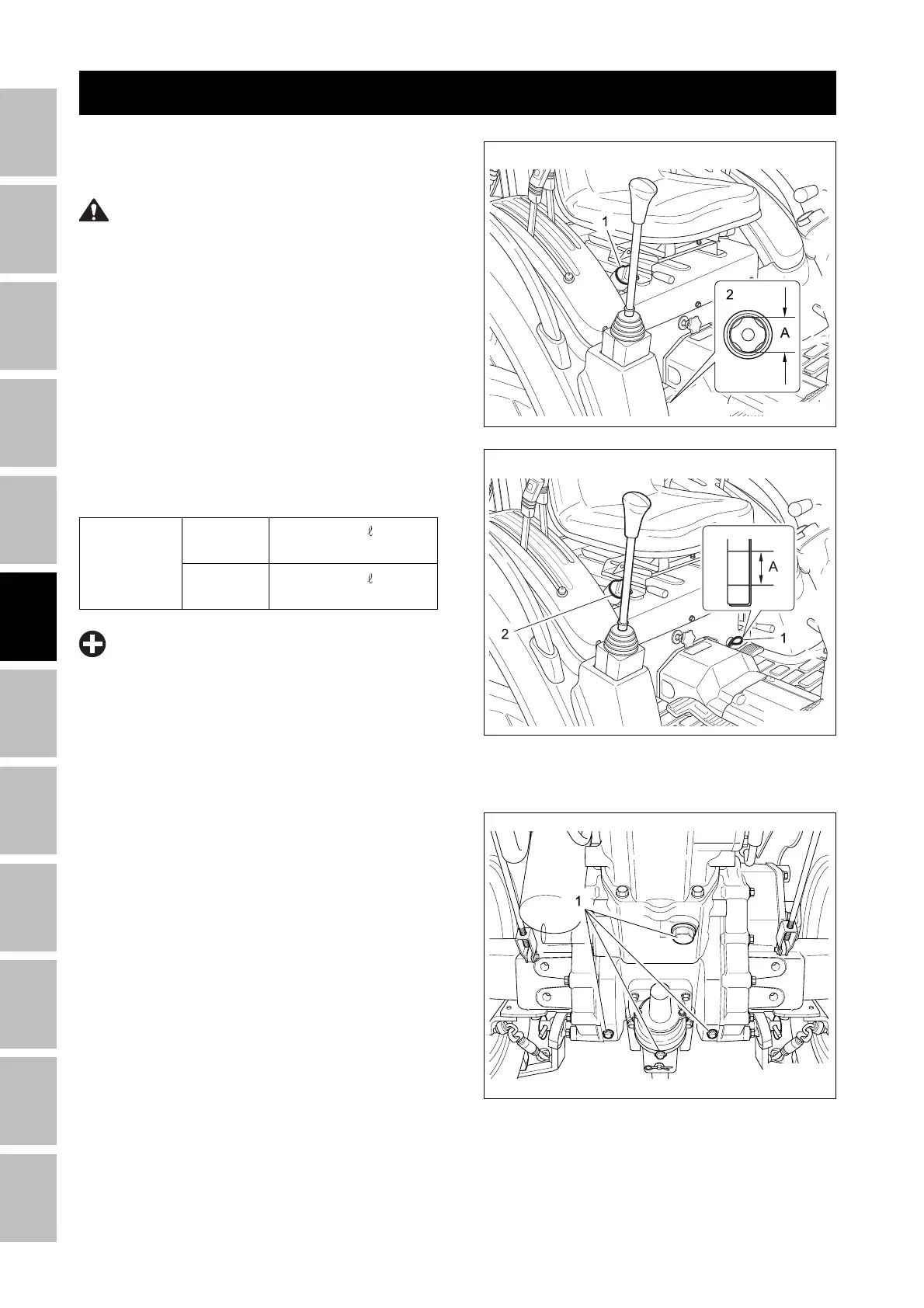

(1) Gauge (2) Oil filling plug
(A) Oil level is acceptable within this range
(1) Drain plugs
196W502A
196W147B
196W512A
1. To drain the used oil, remove the drain plug at the
bottom of the transmission case and drain the oil
completely into the oil pan.
2. After draining reinstall the drain plug.
3. Fill with the new DAEDONG TF65 fluid up to the up-
per line of the gauge.
(See “LUBRICANTS” in Maintenance Section)
4. After running the engine for a few minutes, stop it
and check the oil level again; add oil to prescribed
level.
• Do not operate the tractor immediately after
changing the transmission fluid.
Run the engine at medium speed for a few min-
utes to prevent damage to the transmission.
IMPORTANT
To avoid personal injury:
• Allow engine to cool down sufficiently, oil can be
hot and can burn.
CAUTION
4.1 DRAINING THE TRANSMISSION
FLUID
Oil capacity
18.5
(4.89 U.S.gal.)
CK22H
21.6
(5.71 U.S.gal.)
CK22
4. SERVICING
REAR AXLE - SERVICING
