CK22/CK22H

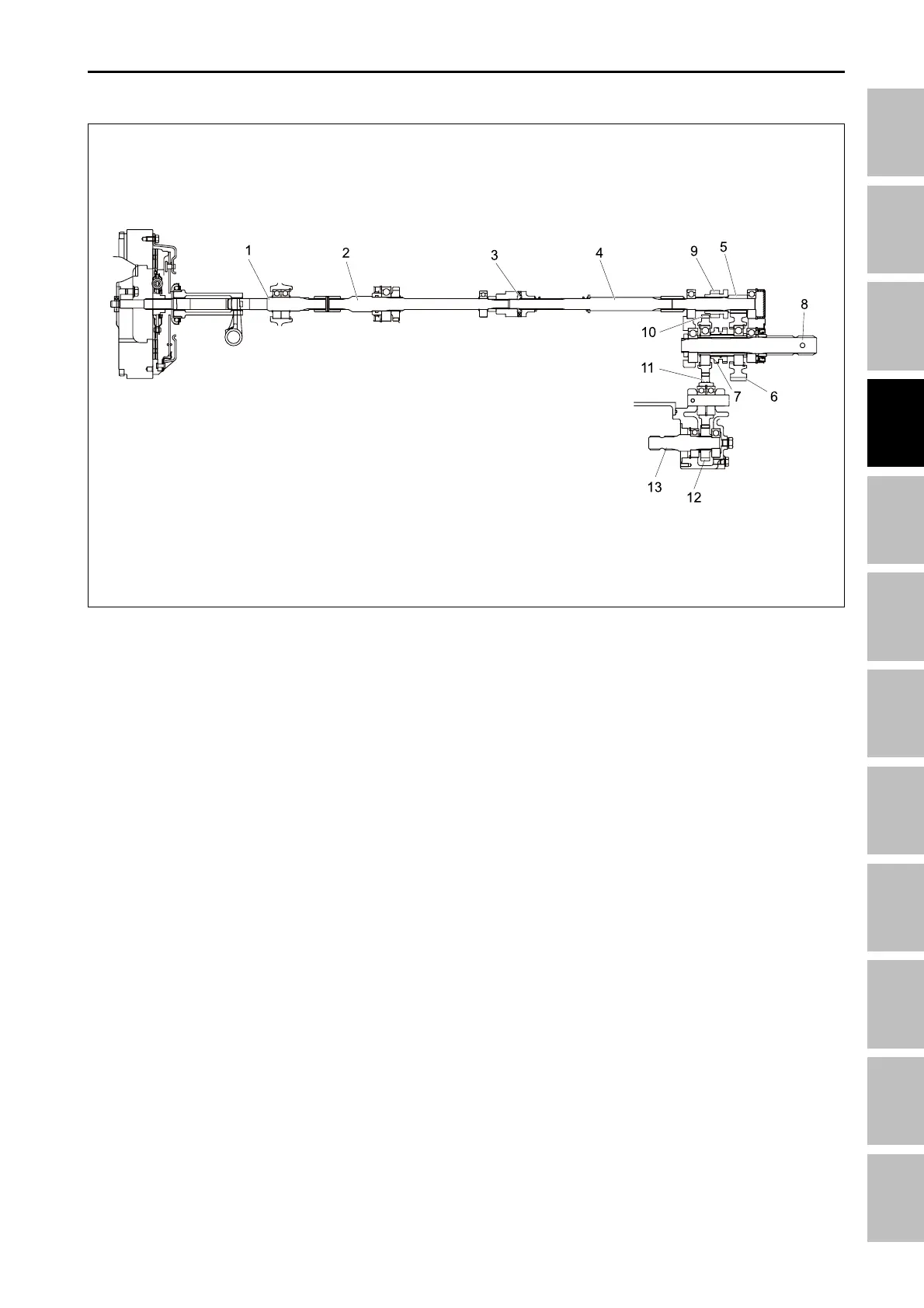

2.2.4 TRANSMISSION PTO SECTION
(1) Main shaft
(2) PTO drive shaft 1 (CK22), HST shaft (CK22H)
(3) Overrunning clutch
(4) PTO drive shaft 2
(5) PTO drive shaft 3
(6) 49T gear
(7) PTO shifter
196W408B
(8) PTO shaft
(9) 17T gear
(10) 42T gear
(11) 37T gear
(12) 23T gear
(13) Mid PTO shaft
6204
TRANSMISSION - OPERATING PRINCIPLE
