CK22/CK22H
A. MID PTO
The power can be taken out from the mid case by in-
stalling the mid PTO system.
ff
ff

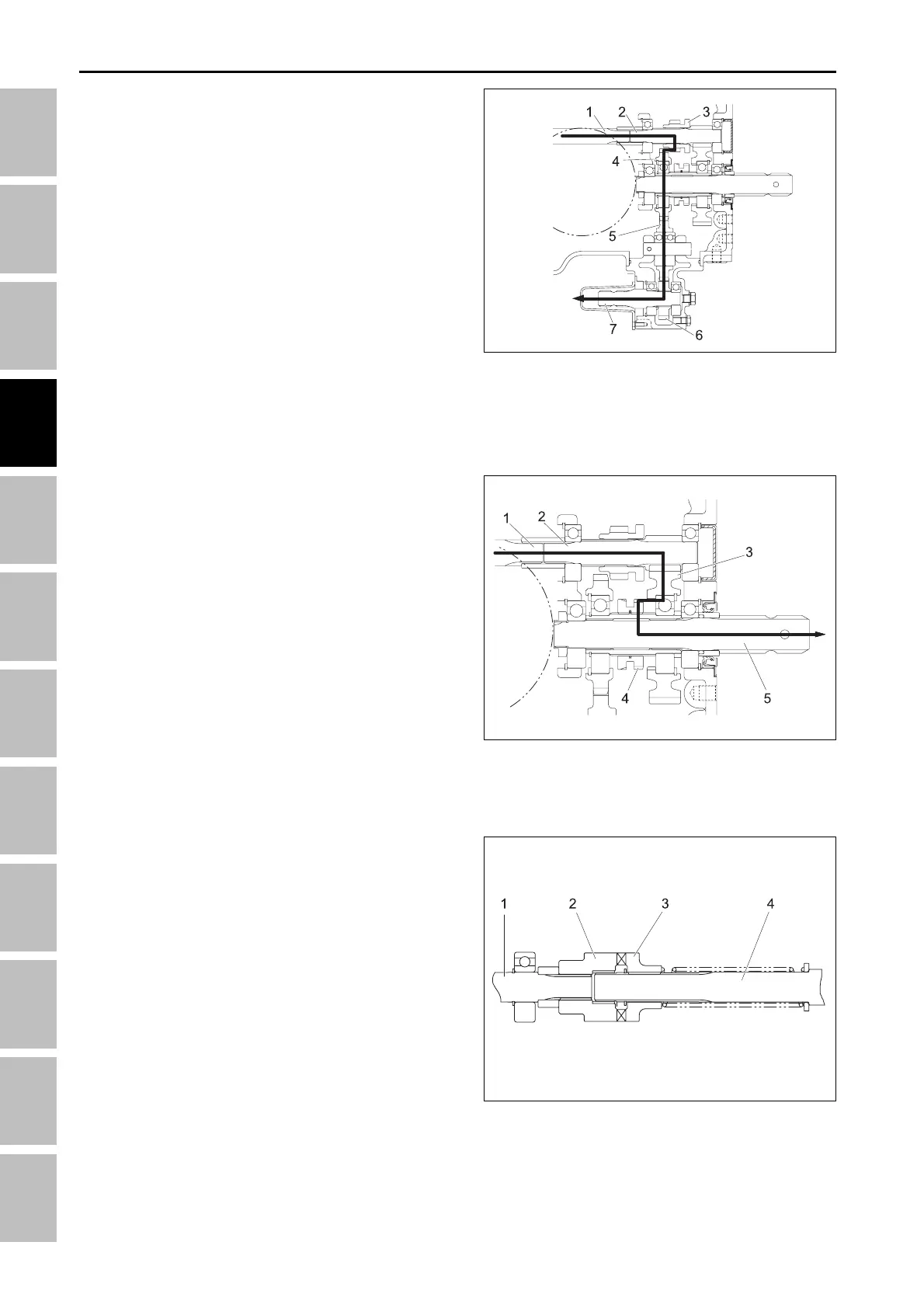

f MID PTO ENGAGEMENT
PTO drive shaft 2 (1) → PTO drive shaft 3 (2) → 17T
gear (3) → 42T gear (4) → 37T gear (5) → 23T gear (6)
→ Mid PTO shaft (7)
(1) PTO drive shaft 2 (5) 37T gear
(2) PTO drive shaft 3 (6) 23T gear
(3) 17T gear (7) Mid PTO shaft
(4) 42T gear
B. REAR PTO
The rear power take-off is available on the CK22,
CK22H model tractors equipped with either the 6 x 2
mechanical gear transmission or the hydrostatic
transmission.
ff
ff
f REAR PTO ENGAGEMENT
PTO drive shaft 2 (1) → PTO drive shaft 3 (2) → 49T
gear (3) → PTO shifter (4) → PTO shaft (5)
(1) PTO drive shaft 2 (4) PTO shifter
(2) PTO drive shaft 3 (5) PTO shaft
(3) 49T gear
C. ONE-WAY CLUTCH (OVERRUNNING
CLUTCH)
A one-way clutch is utilized on the PTO output shaft of
the 6 x 2 gear transmission model tractor.
The one-way clutch transmits power in one direction
only and is free wheeling in the other.
(1) PTO drive shaft 1 (CK22), HST shaft (CK22H)
(2) CAM clutch A (4) PTO drive shaft 2
(3) CAM clutch B
196W411A
196W410A
196W409A
