CK22/CK22H

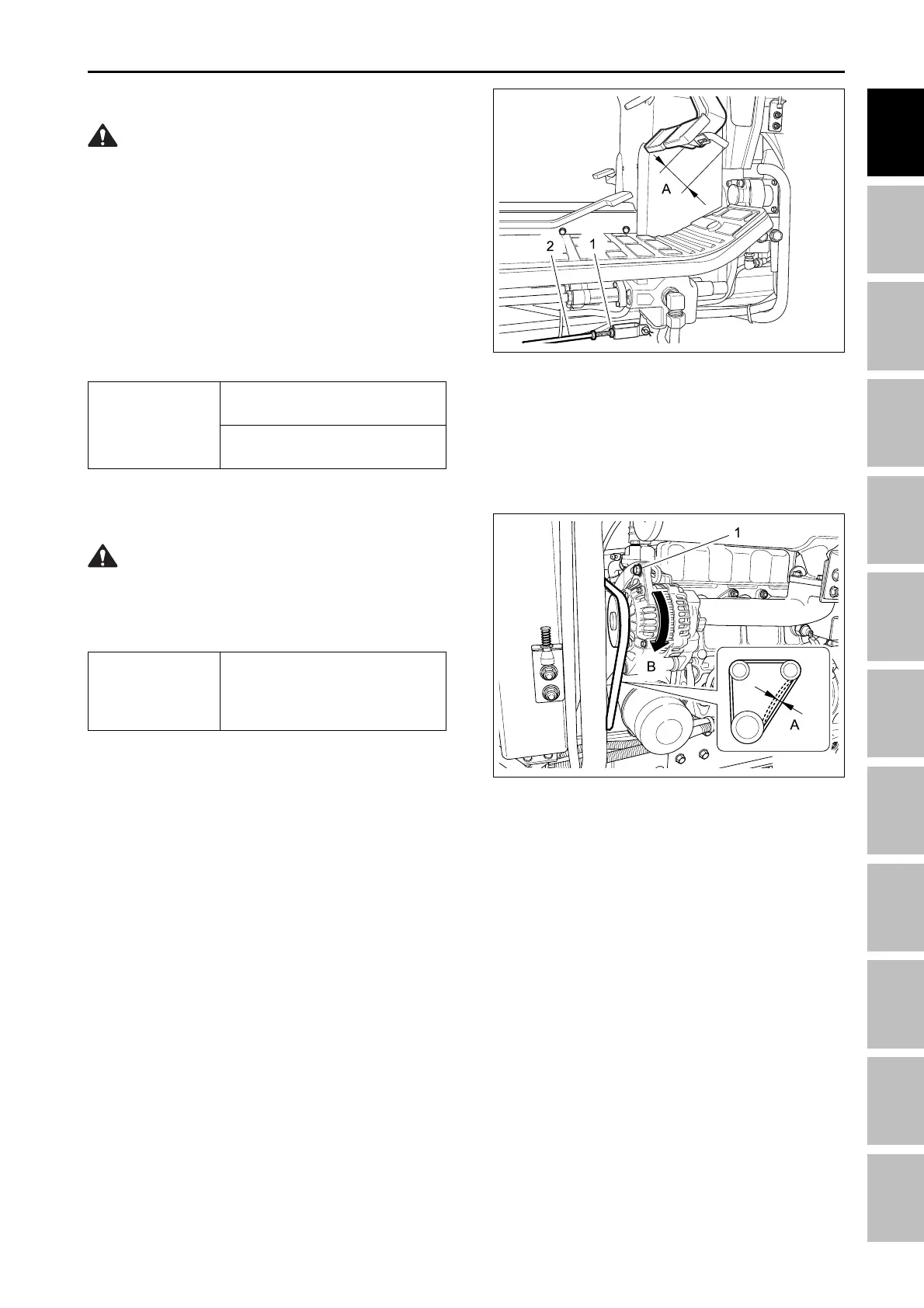

8.3.6 ADJUSTING BRAKE PEDAL
(1) Lock nut (A) Free travel
(2) Turnbuckle
Proper brake
pedal free travel
20 ~ 30 mm (0.8 ~ 1.2 in.)
on the pedal.
Keep the free travel in the right
and left brake pedals equal.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free
travel at top of pedal stroke.
3. If adjustment is needed, loosen the lock nut and
turn the turnbuckle to adjust the rod length within
acceptable limits.
4. Retighten the lock nut.
196W133A
To avoid personal injury:
•
Stop the engine and chock the wheels before
checking brake pedal.
CAUTION
8.3.7 ADJUSTING FAN BELT TENSION
(1) Bolt
(A) Check the belt tension
(B) To tighten
Proper fan belt
tension
A deflection of between
8 mm (0.32 in.)
when the belt is pressed in the
middle of the span.
1. Stop the engine and remove the key.
2. Apply moderate thumb pressure to belt between
pulleys.
3. If tension is incorrect, loosen the alternator mount-
ing bolts and, using a lever placed between the al-
ternator and the engine block, pull the alternator
out until the deflection of the belts falls within ac-
ceptable limits.
4. Replace fan belt if it is damaged.
196W130A
To avoid personal injury:
•
Be sure to stop the engine before checking belt
tension.
CAUTION
GENERAL - CHECK AND MAINIENANCE
