CK22/CK22H

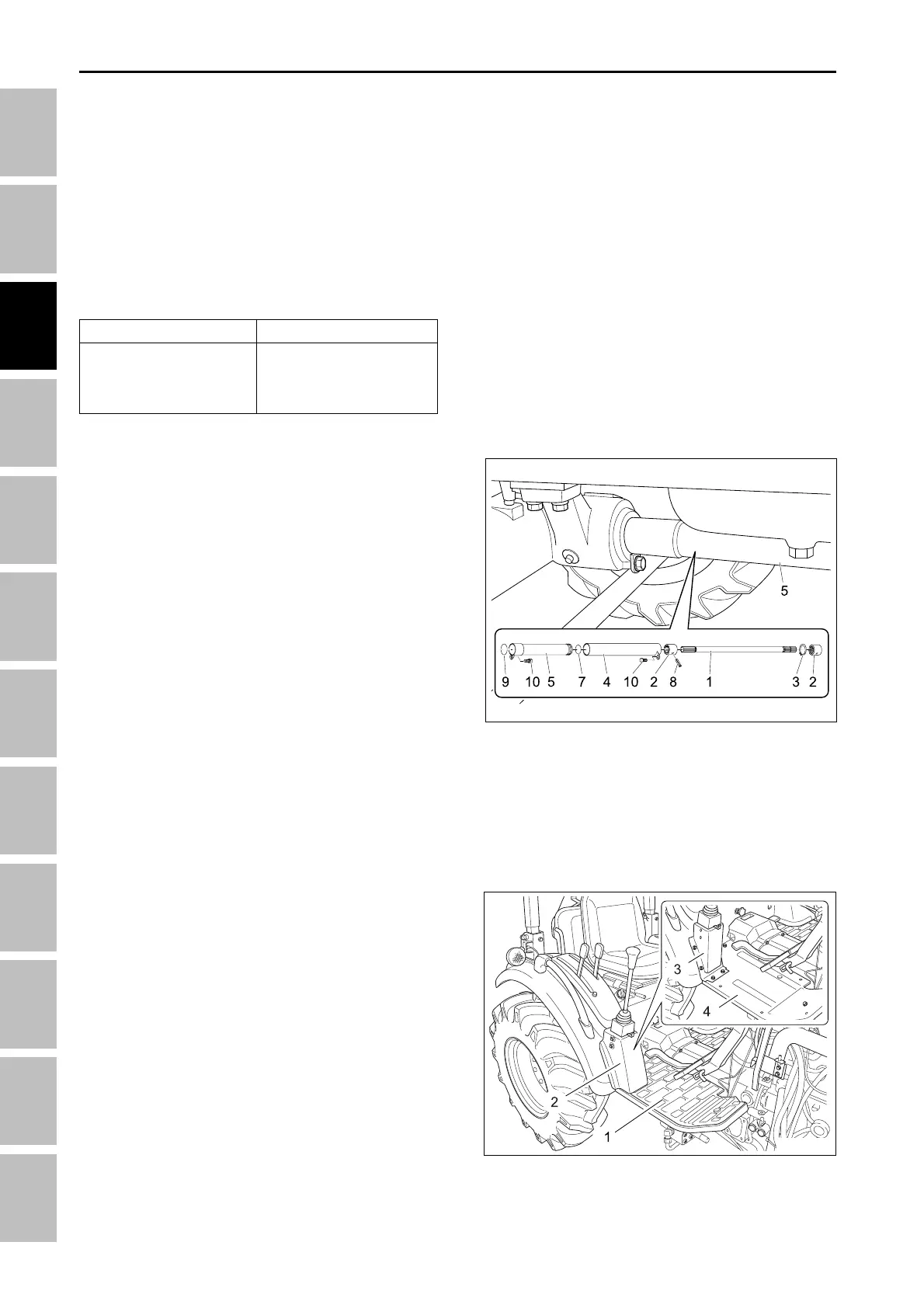

5.1.5 PROPELLER SHAFT
1. Slide the propeller shaft cover (5), (4) after remov-
ing the bolts (10).
2. Tap out the spring pin (8), and then slide the cou-
pling (2) to the rear.
(When reassembling)
• Apply grease to the splines of the propeller shaft.
(1) Propeller shaft
(2) Coupling
(3) Cir-Clip
(4) Propeller shaft cover 1
(5) Propeller shaft cover 2
196W309A
(6) O-ring
(7) O-ring
(8) Spring pin
(9) O-ring
(10) Bolt
(When reassembling)
• Make sure to connect each hose to the correct loca-
tion by identifying its tag.
• Hose identification
- Steering hose P: A red tag attachment
- Steering hose R: A white tag attachment
- Steering hose L: A yellow tag attachment
- Steering hose T: No tag
Item
Steering hose P, R, L
Tightening torque
24.5 ~ 29.4 Nm
2.5 ~ 3.0 kgf-m
18.1 ~ 21.7 lb-ft
5.1.6 STEP
1. Remove the step mat (LH/RH) (1).
2. Remove the joystick mounting bolts and disconnect
the cover (2).
3. Remove the frame (3).
4. Remove the step (LH/RH) (4).
196W310A
(1) Step mat (3) Frame
(2) Cover (4) Step
