Daedong CK22 - Removing Clutch

3-10
DS35-W00 May. 2007
CLUTCHCLUTCH CLUTCHCLUTCH
CLUTCH
TRANSMISSIONTRANSMISSION TRANSMISSIONTRANSMISSION
TRANSMISSION
ENGINEENGINE ENGINEENGINE
ENGINE
HSTHST HSTHST
HST
FRONT AXLEFRONT AXLE FRONT AXLEFRONT AXLE
FRONT AXLE
STEERINGSTEERING STEERINGSTEERING
STEERING
BARKEBARKE BARKEBARKE
BARKE
ELECTRICELECTRIC ELECTRICELECTRIC
ELECTRIC
INDEXINDEX INDEXINDEX
INDEX
HYDRAULICHYDRAULIC HYDRAULICHYDRAULIC
HYDRAULIC
GENERALGENERAL GENERALGENERAL
GENERAL
REAR AXLEREAR AXLE REAR AXLEREAR AXLE
REAR AXLE
CK22/CK22H
196W314A
NOTE:
• Do not allow grease and oil on the clutch disc facing.
Item
Clutch mounting screws
Tightening torque
23.5 ~ 27.5 Nm
2.4 ~ 2.8 kgf-m
17.4 ~ 20.3 lb-ft

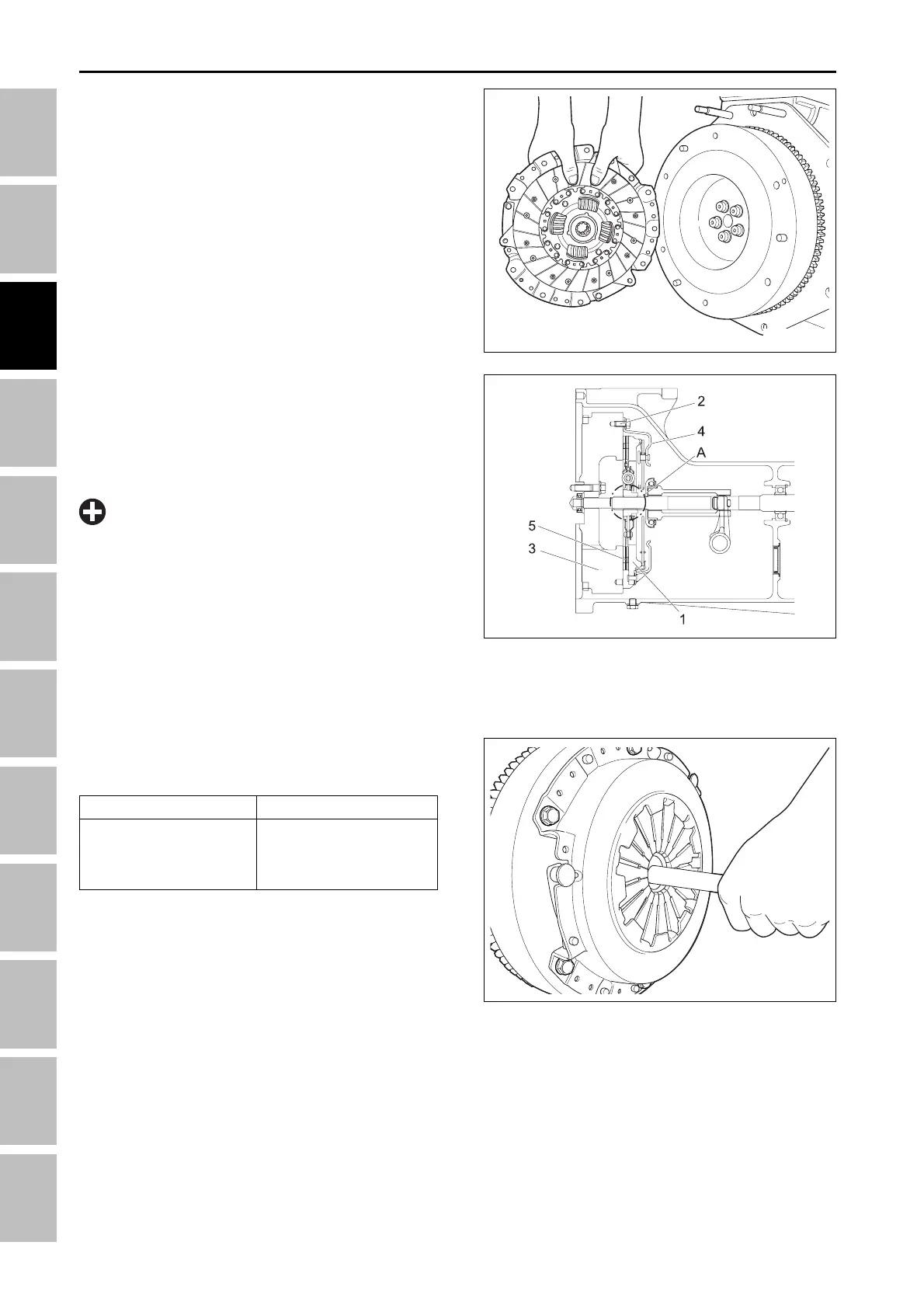

5.1.9 REMOVING CLUTCH
1. Remove the clutch from the flywheel.
196W312A
(When reassembling)
• Take care of assembly direction. The shorter spline
boss (A) should be located toward flywheel when
assembling clutch disc.
• Take care to treat clutch disc and clean each fiction
surface of flywheel and clutch pressure plate.
(1) Clutch assembly (4) Clutch cover
(2) Bolt (5) Clutch disc
(3) Flywheel (A) Spline boss
196W313A
• When attaching clutch cover (4) and clutch disc
(5) with flywheel, you should set the clutch disc
(5) on the right position. And then, tight bolt equally
to the diagonal.
IMPORTANT
CLUTCH - SERVICING
