CK22/CK22H

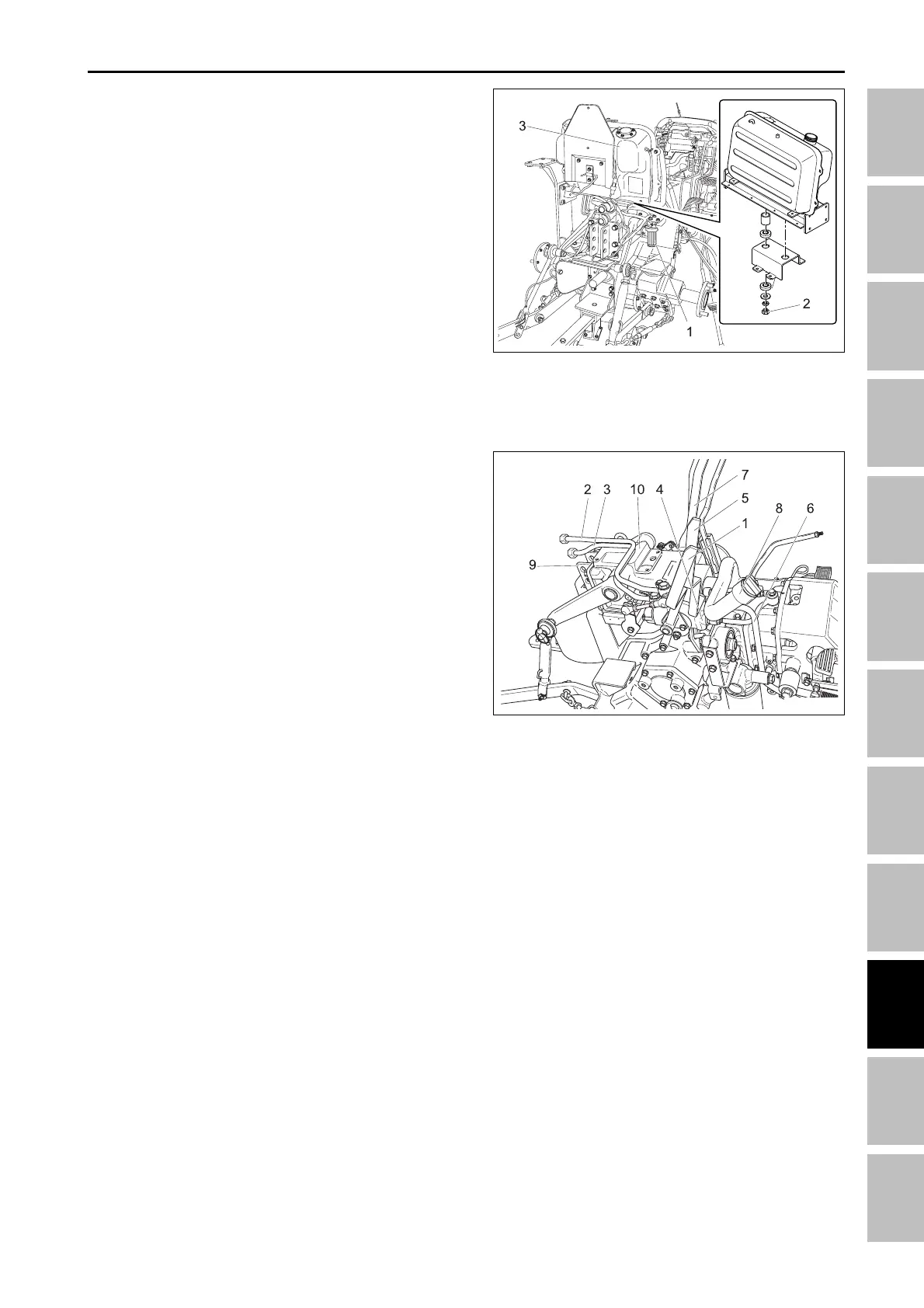

4.3.8 LIFE COVER/HYDRAULIC CYLINDER
1. Remove the position lever (1).
2. Remove the joint bolt and the hydraulic tube a (2) &
b (3).
3. Remove the double acting valve (4) & the lever (5).
4. Remove the hydraulic tube (p) (6).
5. Remove the PTO lever (7).
6. Remove the oil filling tube (8).
7. Remove the top link bracket (9).
8. Remove the mounting bolt from the hydraulic cylin-
der (10).
196W9B3A
(1) Position lever
(2) Hydraulic tube a
(3) Hydraulic tube b
(4) Double acting valve
(5) Lever
(6) Hydraulic tube (P)
(7) PTO lever
(8) Oil filling tube
(9) Top link bracket
(10) Oil filling tube
4.3.7 FUEL TANK
1. Drain the fuel tank.
2. Disconnect the fuel hose from the engine.
3. Disconnect the fender wire harness.
4. Remove the fuel filter (1).
5. Remove the nuts (2).
6. Remove the fuel tank assembly (3) & the socket
fixture.
196W9A9A
(1) Fuel filter (2) Nut
(3) Fuel tank ass’y
HYDRAULIC SYSTME - SERVICING
