CK22/CK22H
The traveling system consists of main gear shift
section, reverse gear shift section, high-low range shift
section.
The main shift section used a synchro-mesh and a
constant mesh.
Rotary power is transmitted from engine to gear shaft
through a tie.
Clutch can be changed three ways by the main shift
lever, and transmits to the counter shaft.

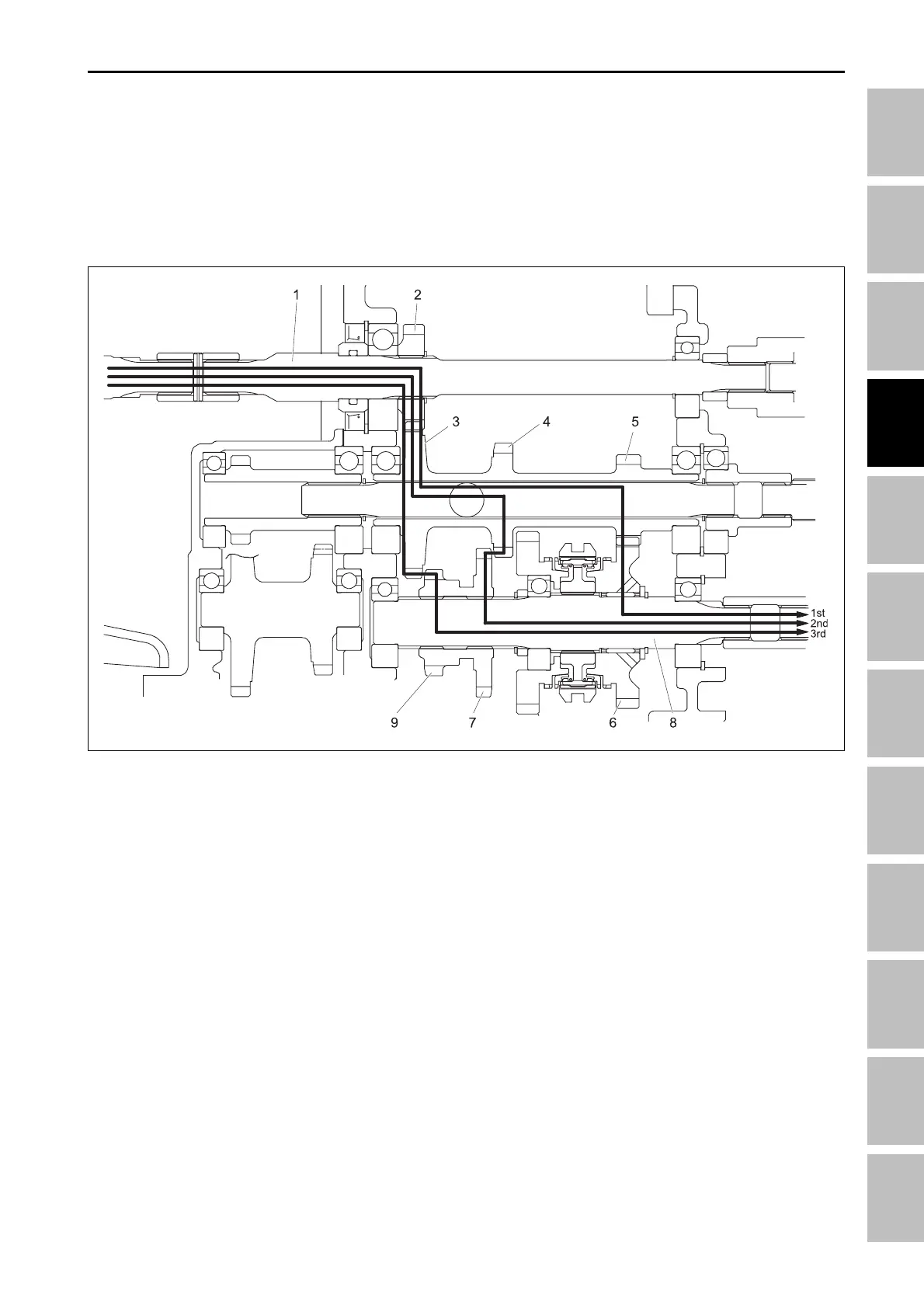

(1) Main shaft
(2) 22T gear
(3) 34T gear
(4) 24T gear
(5) 18T gear
(6) 37T gear
(7) 32T gear
(8) Counter shaft
(9) 22T gear
A. THE POWER IS TRANSMITTED AS FOLLOWS.
1st speed
Main shaft (1) → 22T gear (2) → 34T gear (3) → 18T
gear (5) → 37T gear (6) → Counter shaft (8)
2nd speed
Main shaft (1) → 22T gear (2) → 34T gear (3) → 24T
gear (4) → 32T gear (7) → Counter shaft (8)
3rd speed
Main shaft (1) → 22T gear (2) → 34T gear (3) → 22T
gear (9) → Counter shaft (8)
196W402B
The transmission consists of a series of gears and shaft shown previously. It offers the most suitable speed for
traveling and operation by combination of these gears. It transmits power to the front axle, rear axle and PTO shaft.
CK22 is equipped a transmission with 6 forwards and 2 reverses.
2.2.1 MAIN GEAR SHIFT SECTION (CK22)
2.2 POWER TRAIN
TRANSMISSION - OPERATING PRINCIPLE
