CK22/CK22H
Weight
Differential Lack

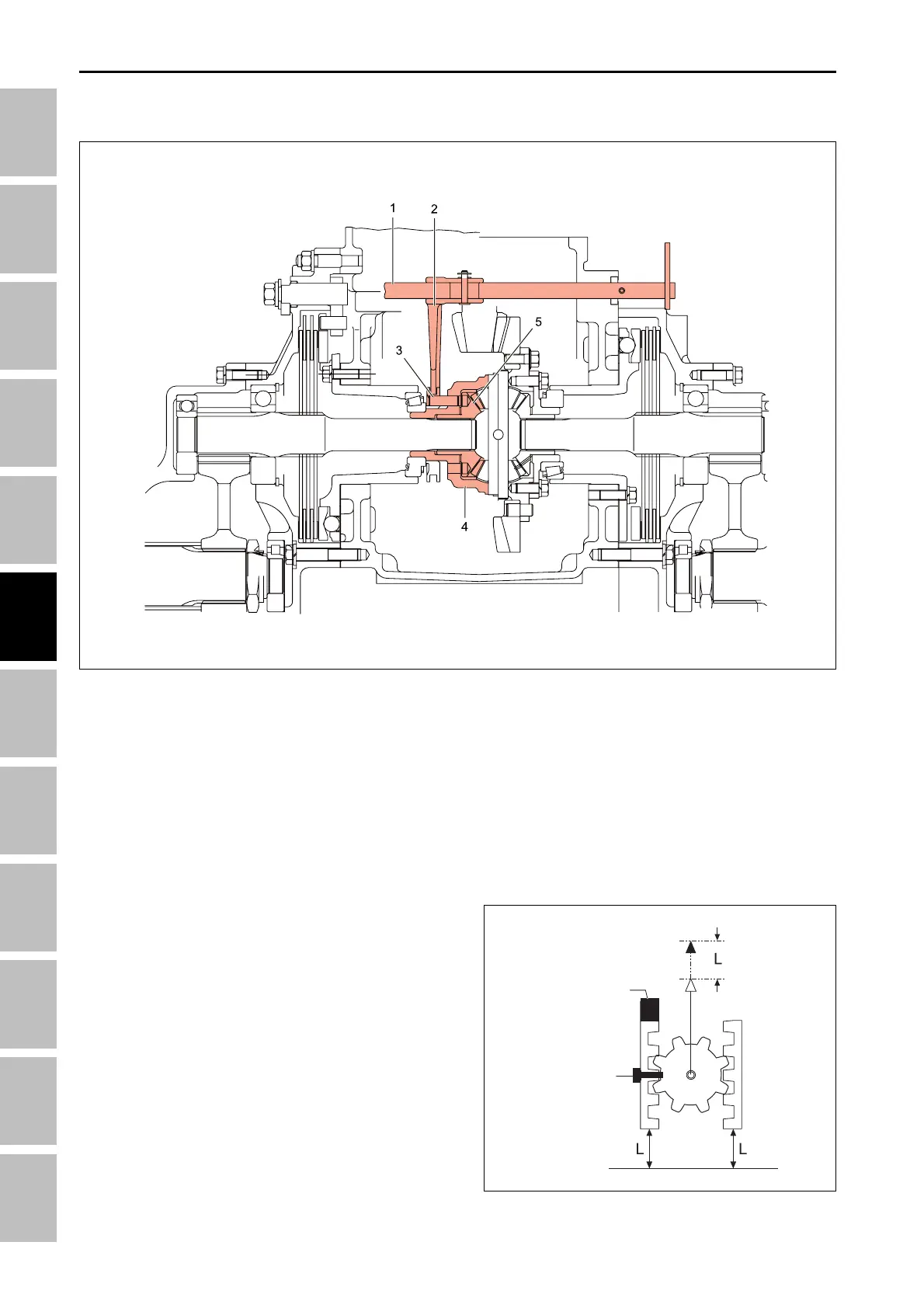

2.3 DIFFERENTIAL LOCK SYSTEM
The differential lock system is to solve such problems
as described on the previous page. When the differen-
tial lock lever is depressed, the differential fork shaft
(1) rotates and the differential fork (2) moves to lock the
differential system.
The differential lock is designed to operate the differ-
ential lock shift pin (3) to lock the differential case (4)
and one differential side gear (5).
As the differential case (4) and one differential side
gear (5) rotate at the same speed, the other differential
side gear rotates at the same speed.
When one rack is fixed to the pinion and the pinion is
lifted, the other rack is lifted in the same height (L) as
shown in the figure on the left.
If the differential lock system is unnecessarily used on
the road with sufficient friction, excessive load is ap-
plied to the differential side gears or the differential
pinion and the internal gears or the components of the
differential lock system can be damaged unless the
tractor is moving straight forward.
Therefore, the steering wheel should be set to the
middle position when using the differential lock system.
T46W607B
T46W606A
6
37
12
20
REAR AXLE - OPERATING PRINCIPLE
