3.6.4 PCV VALVE
A. PCV (POSITIVE CRANKCASES
VENTILATION)
The PCV system is a system that prevents air pollution
by returning the blow-by gas to the intake manifold
through the bleeding pipe of the cylinder head cover for
recirculation of the gas. (However, the turbo charged
engine has the open crankcase type that discharges
the blow-by gas to the air.)

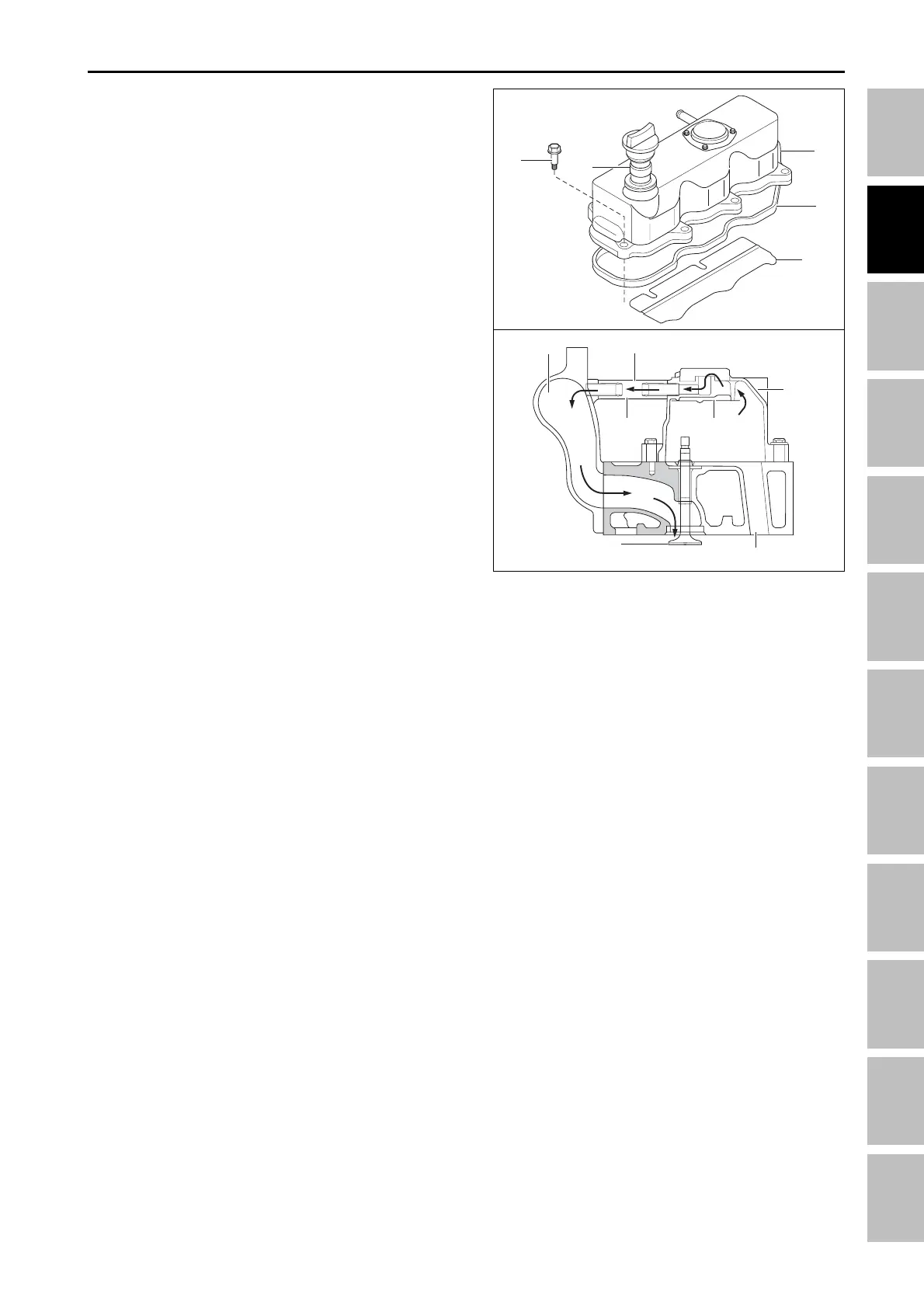

T46W248A
(1) Head cover bolt
(2) Oil filler flange
(3) Oil baffle plate
(4) Head cover gasket
(5) Cylinder head cover
(6) Intake manifold
T46W249A
(7) Bleeding pipe
(8) Intake valve
(9) Cylinder head
(10) Cylinder head cover
(11) Oil baffle plate
(12) Bleeding pipe
connection
