CK22/CK22H

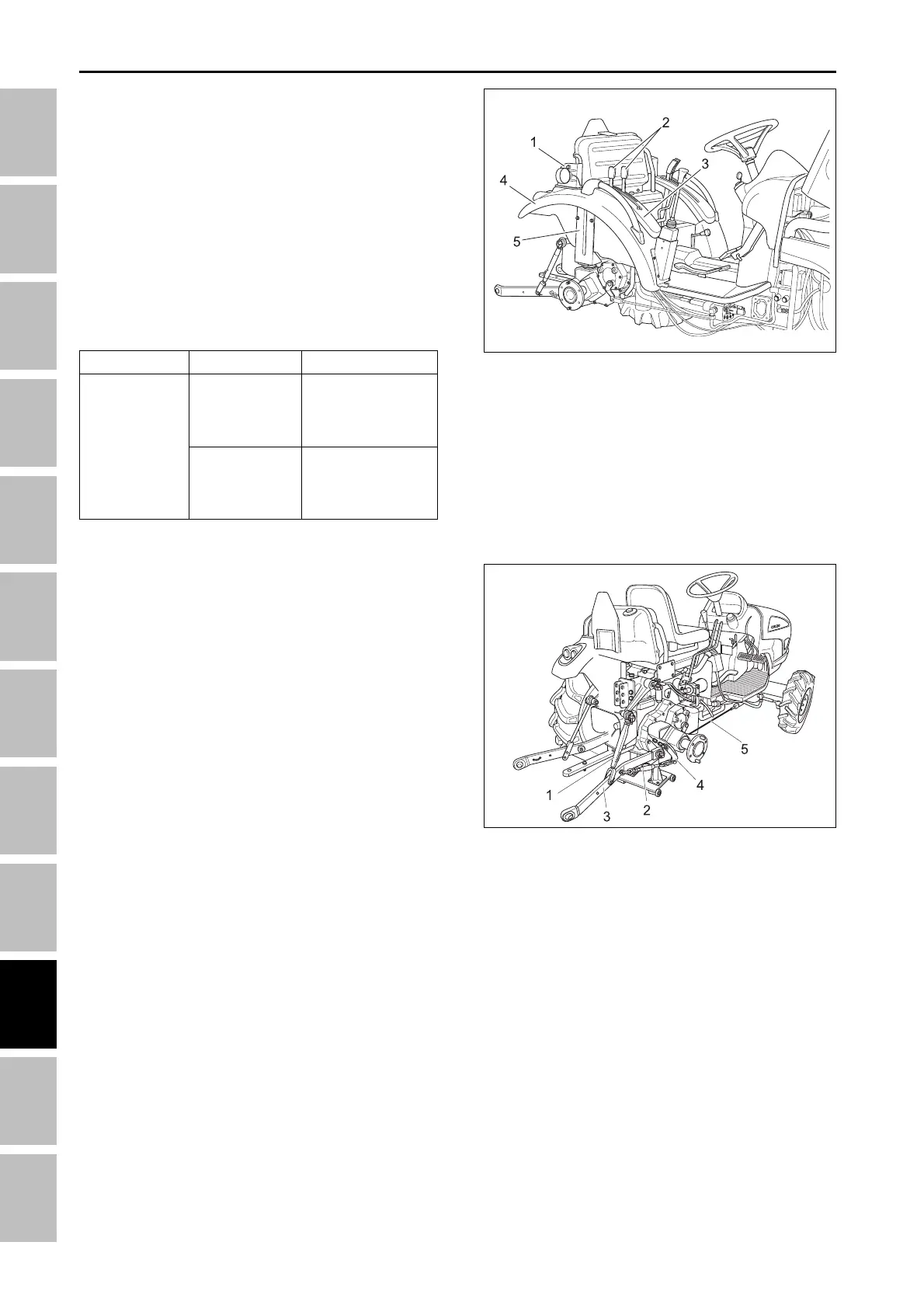

4.3.5 FENDER
1. Rmove the connectors to the rear combi lamp, turn
sigal lamp and working lamp.
2. Remove the ROPS mounting bracket (1).
3. Remove the grip (2) from the levers and then re-
move the lever guide (3).
4. Remove the fender support (5).
5. Remove the fender (4).
NOTE:
• For installation, follow the same procedure in re-
verse order.
196W9A8A
(1) Bracket (4) Fender
(2) Handle grip (5) Fender support
(3) Lever guide
4.3.6 LOWER LINKS
1. Remove the check chain (2).
2. Remove the lift rod (1).
3. Remove the lower link (3).
4. Remove the check change bracket (4).
5. Disconnect the brake rod (5) if necessary.
196W9B2B
(1) Lift rod (3) Lower link (5) Brake rod
(2) Check chain (4) Bracket
Item
Fender
support bolt
Tightening torque
77.5 ~ 90.1 Nm
7.9 ~ 9.2 kgf-m
57.2 ~ 66.5 lb-ft
124 ~ 147 Nm
12.6 ~ 15.0 kgf-m
91.2 ~ 108 lb-ft
Spec.
M12
M14
HYDRAULIC SYSTME - SERVICING
