CK22/CK22H
C. REMOVING CONNECTING ROD CAP
1. Remove the connecting rod bolts from connecting
rod cap.
2. Detach the connecting rod caps.
(1) Connecting rod cap
(a) Align the marks with each other
(b) Face the marks toward the injection pump
196W292A
7.1.10 PISTON

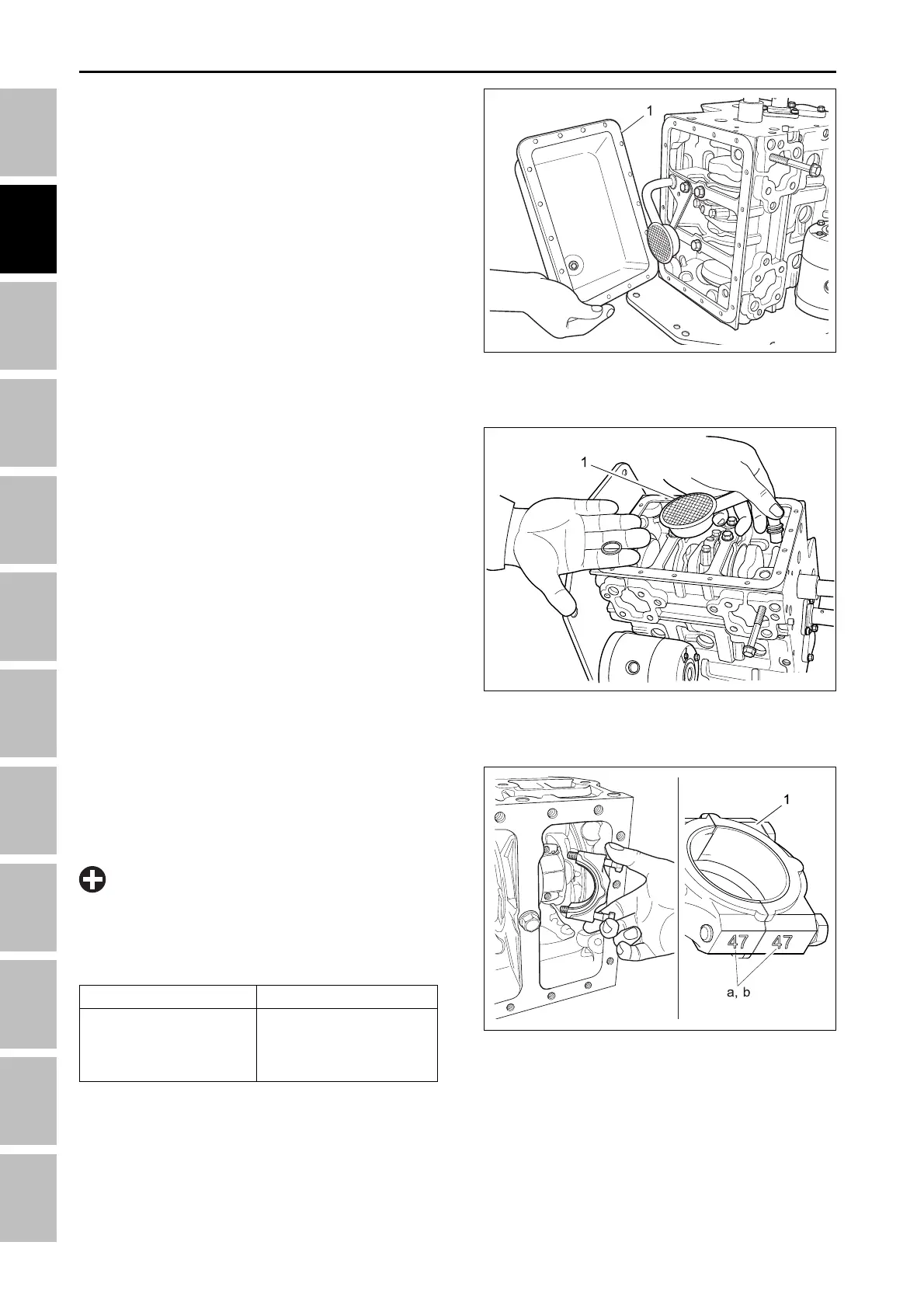

A. REMOVING OIL PAN
1. Lay the engine on the engine cradle on its side.
2. Remove the eighteen oil pan mounting bolts.
3. Detach the oil pan by lightly tapping the groove of
the pan with a wooden hammer.
(Note for reassembling)
• Wipe off oil on the oil pan mounting surface, apply a
non-drying adhesive, and install the oil pan.
• To avoid uneven tightening, tighten mounting bolts
in diagonal order from the center.
• Ensure that the drain plug is tight.
(1) Oil pan
(1) Oil strainer
196W290B
196W291A
B. REMOVING OIL STRAINER
1. Remove the mounting bolt of oil strainer.
2. Detach oil strainer, being careful of the O-ring.
(Note for reassembling)
• After cleaning the oil strainer, check to see that the
strainer mesh is clean, and install it.
• Visually check the O-ring, apply engine oil, and in-
stall it.
• After checking to see that the O-ring is securely
installed, attach the oil strainer.
•
Apply engine oil to the connecting rod bolt.
•
Align the marks with each other.
•
Face the marks toward the injection pump.
IMPORTANT
Item
Connecting Rod
Tightening torque
26 ~ 30 Nm
2.7 ~ 3.1 kgf-m
20 ~ 22 lb-ft
ENGINE - SERVICING
