CK22/CK22H

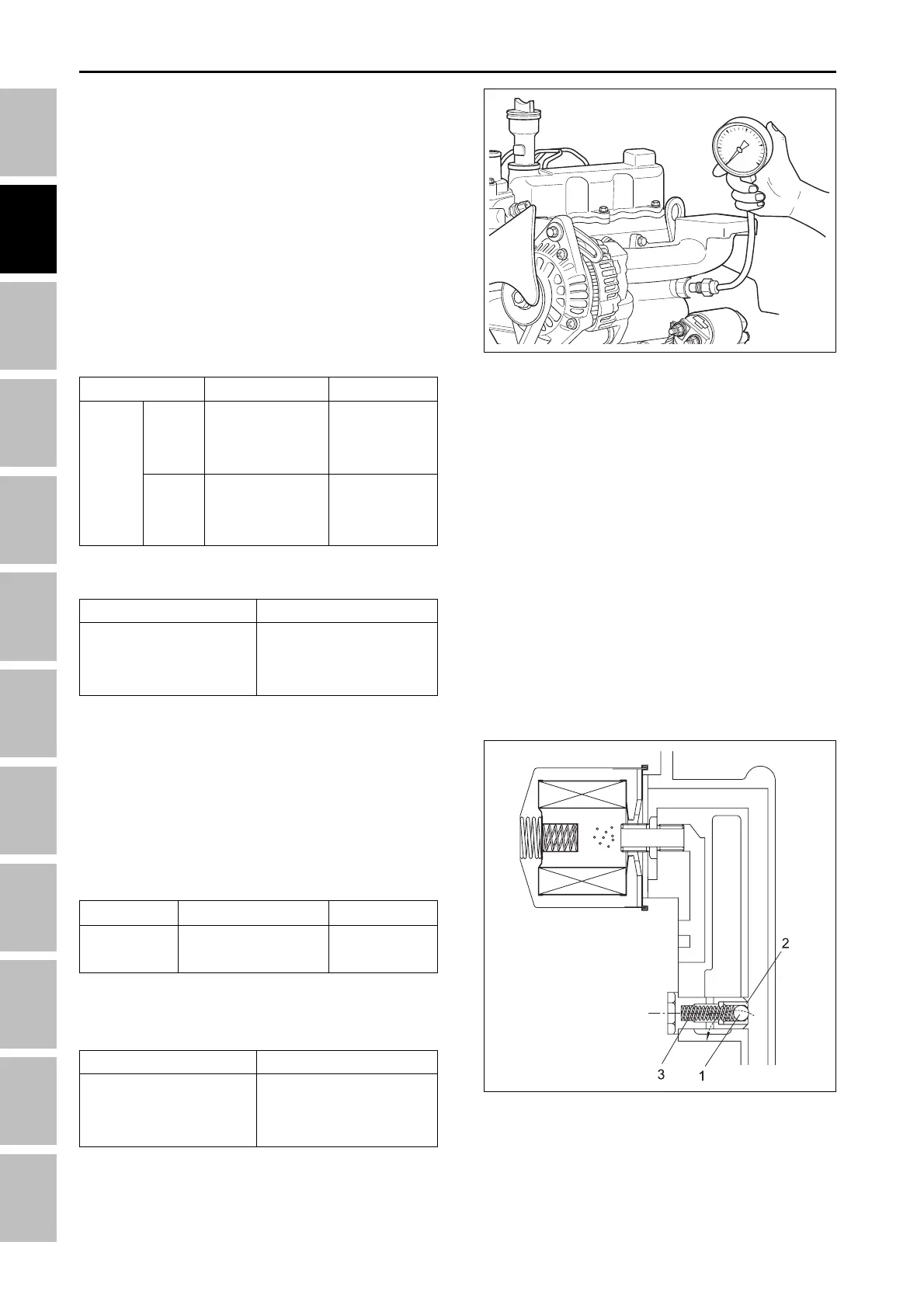

B. RELIEF VALVE
1. Remove the relief valve.
2. Check the relief valve for dirt, and the seat (2) and
ball (1) for damage.
3. If damaged, replace.
4. Check the free length of spring (3).
5. If less than the allowable limit, replace.
NOTE:
• Install the relief valve cover with the mark Sup.
196W2F5A
Item
Spring free
length
Factory spec.
35 mm
1.38 in.
Allowable limit
30 mm
1.18 in.
Item
Relief cover screw
Tightening torque
32.4 ~ 36.3 Nm
3.3 ~ 3.7 kgf-m
23.9 ~ 36.8 lb-ft
(1) Relief valve ball
(2) Relief valve seat
(3) Relief valve spring
(Reference)
196W2F4B
At idle
speed
At
rated
speed
Item
Factory spec.
More than 49 kPa
0.5 kgf/cm
2
7.11 psi.
245 ~ 441 kPa
2.5 ~ 4.5 kgf/cm
2
36 ~ 64 psi.
Allowable limit
-
245 kPa
2.5 kgf/cm
2
36 psi.
Engine
oil
pressure
Item
Oil pressure switch
Tightening torque
14.7 ~ 19.6 Nm
1.5 ~ 2.0 kgf-m
10.8 ~ 14.5 lb-ft
7.2.8 LUBRICATING SYSTEM
A.ENGINE OIL PRESSURE
1. Remove the oil pressure switch and install adap-
tors and pressure tester.
2. Start the engine and run it until it is warmed up, and
measure the oil pressure both at idling and rated
speed.
3. If the oil pressure is less than the allowable limit,
check the amount of oil, oil filter, oil pump relief
valve, oil passages and oil clearances.
(When reassembling)
• Supply the specified amount of recommended oil.
• The oil filter must not be clogged or broken.
ENGINE - SERVICING
