CK22/CK22H
196W2F0A

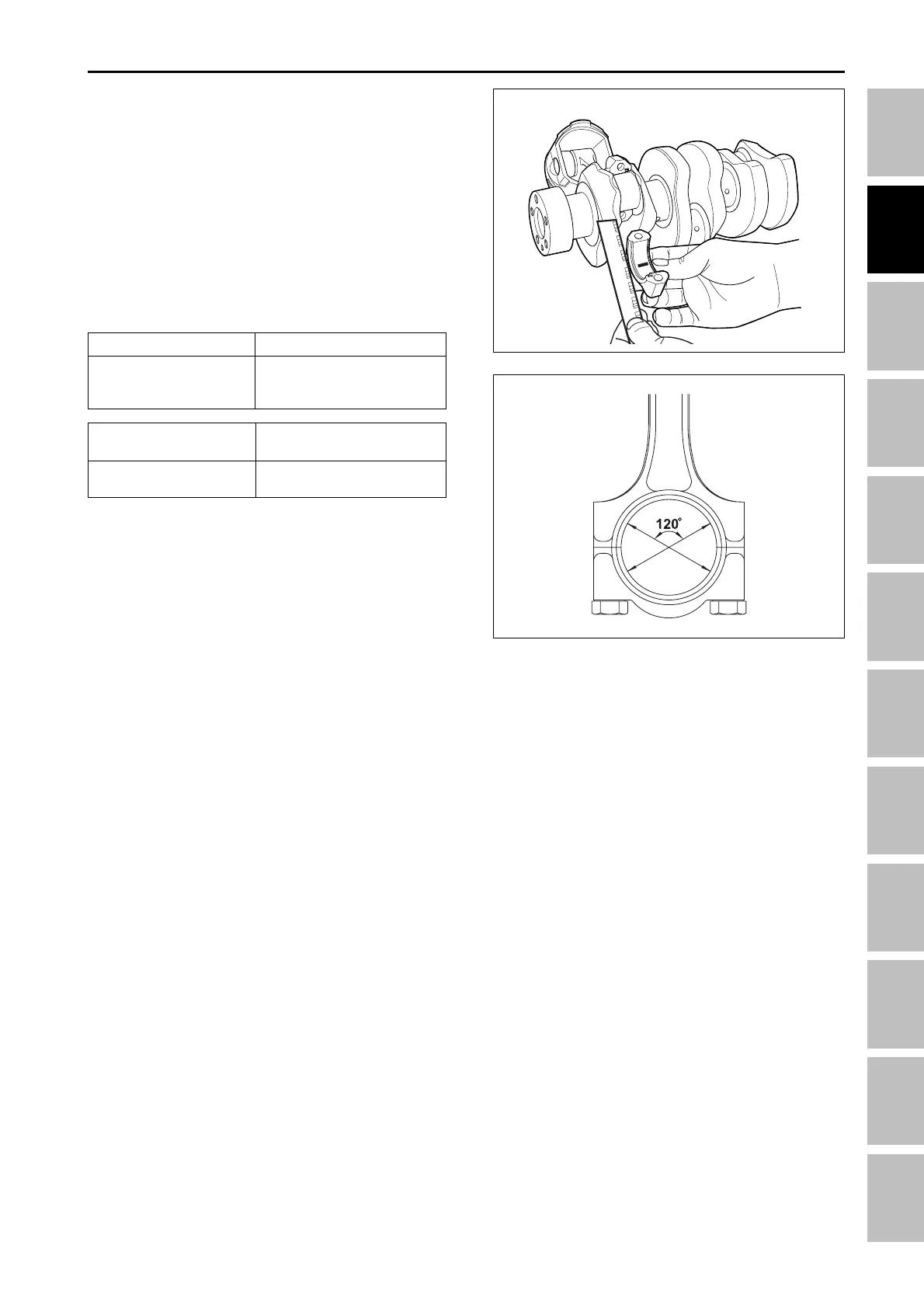

F. CRANKPIN AND CONNECTING ROD BEAR-
ING OIL CLEARANCE
1. Paste a press gauge onto the crank pin bearing
with grease.
2. Install the connecting rod cap and tighten the screws
to the specified torque once, and remove the cap
again.
3. Remove the connecting rod gently, and measure
the depression of the press gauge with a sheet of
gauge (paper).
4. If the clearance exceeds the allowable limit, replace
the bearing.
(Note for measuring)
• Fasten the crankshaft so that it does not turn.
• Do not insert the press gauge into the crank pin
hole.
• Crankpin bearing measuring points are shown
below.
196W2F1A
Item
Connecting rod cap
Tightening torque
26.5 ~ 30.4 Nm
2.7 ~ 3.1 kgf-m
19.52 ~ 22.42 lb-ft
Reference value
Allowable limit
0.029 ~ 0.091 mm
0.0011 ~ 0.0036 in.
0.20 mm
0.0079 in.
ENGINE - SERVICING
