CK22/CK22H
8.7 EVERY 800 HOURS
8.7.1 ADJUSTING ENGINE VALVE CLEAR-
ANCE
Consult your local DAEDONG Dealer for this service.
8.6 EVERY 600 HOURS
8.6.1 ADJUSTING FRONT AXLE PIVOT
If the front axle pivot pin adjustment is not correct, front
wheel vibration can occur causing vibration in the steer-
ing wheel.
8.6.2 ADJUSTING PROCEDURE
Loosen the lock nut, tighten the adjusting screw all the
way, and then loosen the screw by 1/6 turn. Retighten
the lock nut.

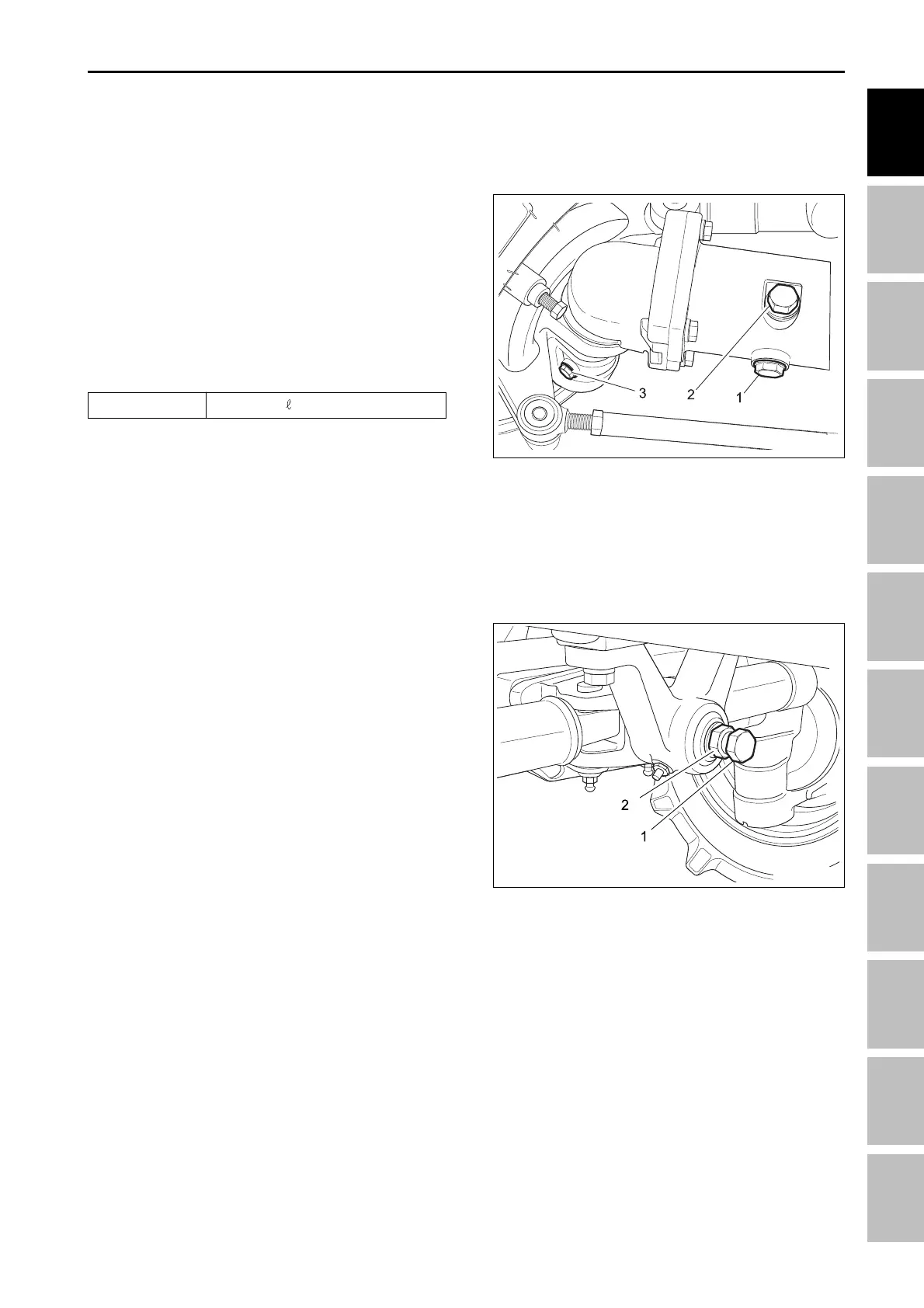

(1) Adjusting screw
(2) Lock nut
196W150A
8.5.2 REPLACING FUEL FILTER ELEMENT
(See “Replacing fuel filter” in every 200 hours
maintenance.)
(1) Check plug (3) Drain plug
(2) Filling plug
196W149B
8.5.3 CHANGING FRONT AXLE CASE OIL
1. To drain the used oil, remove the right and left drain
plugs and filling plug at the front axle case and drain
the oil completely into the oil pan.
2. After draining reinstall the drain plugs.
3. Remove the oil level check plug.
4. Fill with the new oil up to the check plug port.
(See “LUBRCANTS” in Maintenance Section)
5. After filling reinstall the filling plug and check plug.
Oil capacity 3.1 (0.82 U.S.gal.)
GENERAL - CHECK AND MAINIENANCE
