CK22/CK22H
196W261B

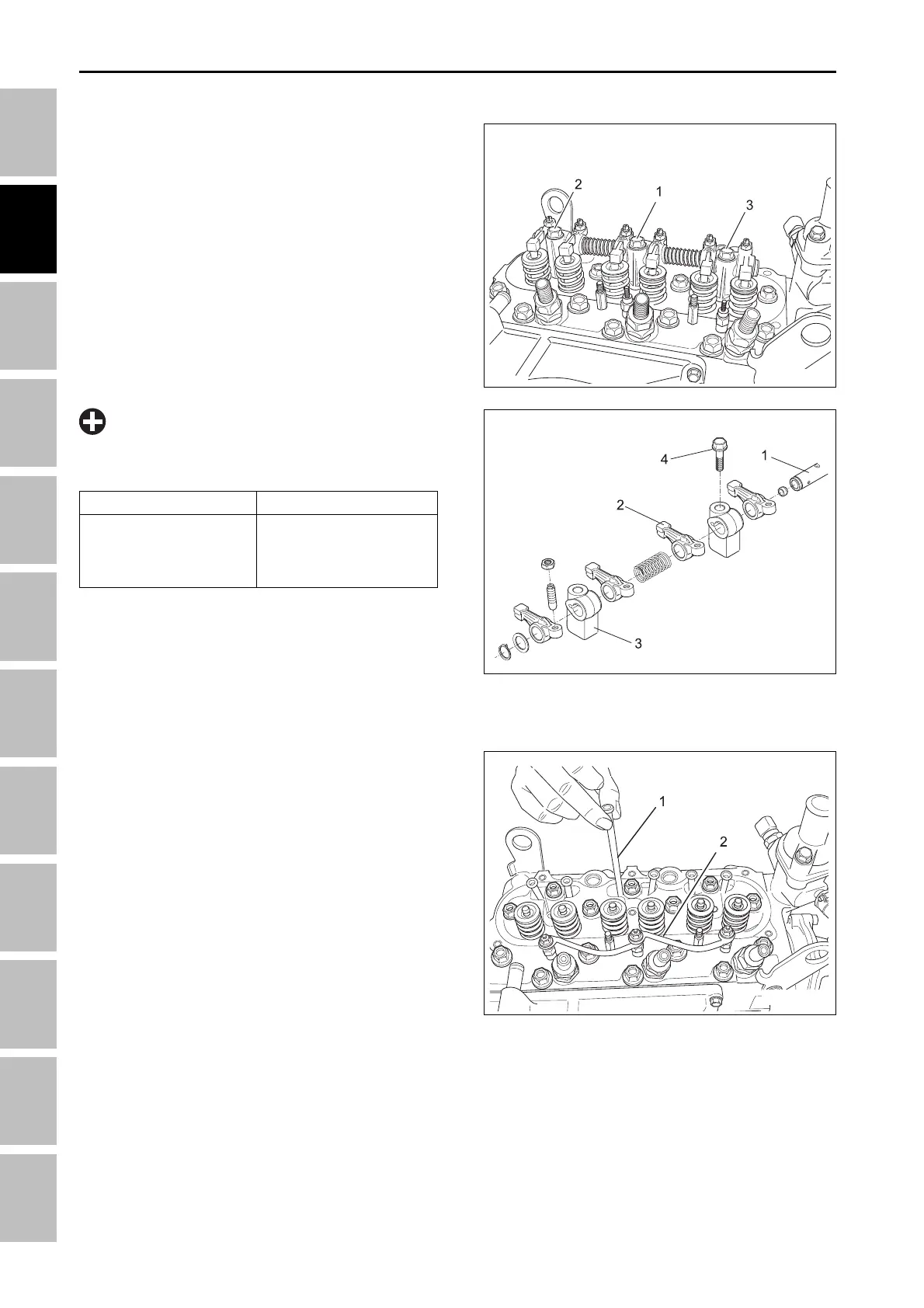

A. ROCKER ARM ASSEMBLY
1. Loosen the nuts in several steps and the specified
sequence shown in the figure and remove them.
• To loosen (3) to (1).
• To tighten (1) to (3).
2. Remove the rocker arm and shaft assembly.
(When reassembling)
• Rest the end of push rod at the indent of tappet and
install the rocker arm assembly.
• Tighten the bolts in several steps and the specified
sequence shown in the figure to the specified torque.
• Adjust the valve clearance after assembling the
rocker arm assembly.
(1) Rocker arm shaft (3) Rocker arm bracket
(2) Rocker arm (4) Bolt
B. REMOVING PUSH-RODS
1. Remove the six push-rods.
(Note for reassembling)
• Before inserting the push rods into the tappets,
check to see if their ends are properly engaged with
the grooves. If a push rod is roughly inserted, it may
hit the shoulder of the tappet and be damaged.
196W260B
196W262B
Item
Rocker arm shaft on
stud bolt
Tightening torque
16.7 ~ 20.6 Nm
1.7 ~ 2.1 kgf-m
12.3 ~ 15.2 lb-ft
• When assembling the rocker arm assembly, lo-
cate groove of rocker arm shaft on stud bolt.
IMPORTANT
(1) Push-rod (2) Glow plug cable
7.1.5 ROCKER ARM AND PUSH-RODS
ENGINE - SERVICING
