CK22/CK22H

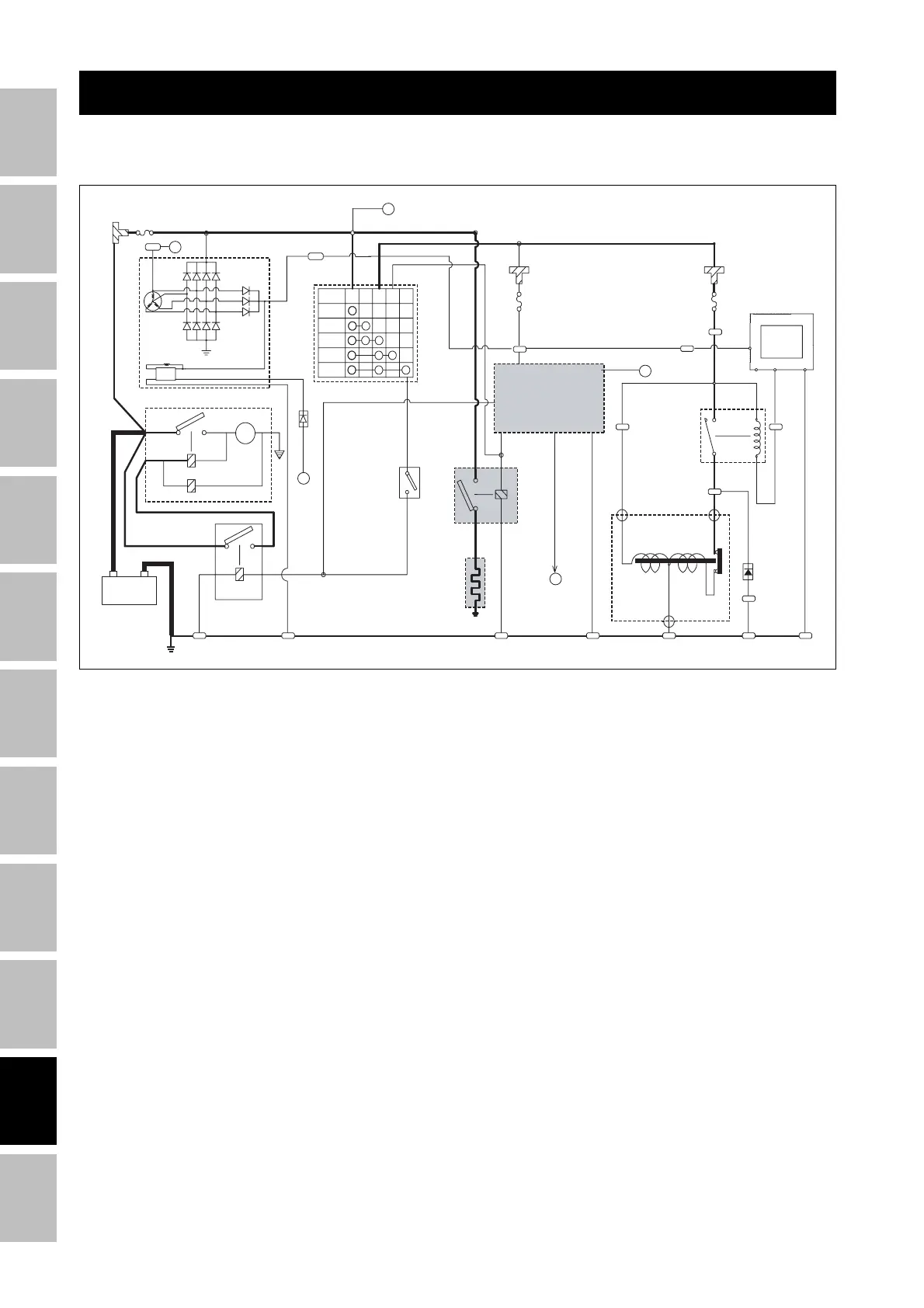

2. OPERATION PRINCIPLE
2.1 PREHEATING
196WA01B
When the ignition key is turned to the “ON” position, the
preheat controller and timer controller are supplied with
power. The preheat controller turns on the preheat lamp
on the instrument panel for up to 8 seconds and oper-
ates the preheat relay for up to 9 seconds for
preheating. However, the preheat lamp and preheat-
ing operation stop when the ignition key is turned to
the “START” position. When the ignition key is back to
the “ON” position after starting the engine, the preheat
controller operates the preheat relay again for 20 sec-
onds for after heating. This is to optimize fuel combus-
tion in the engine after starting.
If necessary, it is possible to preheat the glow plug
temporarily (manually) by setting the ignition key to the
“GL” position between the “ON” and “ST” positions. The
preheat lamp on the instrument panel does not come
on in case of after and manual heating.
60A
ALTERNATOR
STARTER MOTOR
To Charging
Lamp
To Preheating
Lamp
To Hour meter
M
BATTERY
RLY:STARTER
BATTERY CABLE(-)
BATTERY CABLE(+)
DIODE
AM
ACC
OFF
ACC
ON
GL
ST
ON GL ST
B+
+-
DIODE
GND
ENGINE STOP
SOLENOID
PULL COIL RELAY
ENGINE STOP SOLENOID
25A10A
UNITS/HOLD COIL
PREHEAT CONT
TIMER RELAY
SIGNAL LAMP GND
1HzON
ST
Holding
COMBIMETER
PREHEAT PLUG
RELAY: PREHEAT
SW: CLUCH
Pull-in
0.77A 32A
P2
11
3
P1
12
3 R 5.0
2 R 5.0
IC REG
71WR 0.5
57 PB 0.5
12 R 3.0
3 R 3.0
62 LR 0.85
62 LR 0.85
42 BY 0.85
62 LR 0.5
43 BR 3.0
3 R 3.0
6 RW 3.0
3 R 3.0
41 BR 0.85
66 RL 0.85
73 YL 0.5
41 BR 0.85
68 GY 0.5
0.85W
2.0 Or
0.5 BrR
0.85L
0.85W
0.85 B
2.0W
(+14.5V)
3 R 3.0
RERAY+
ON
GNDSIG
105
66
001 001 001 001 001 001
001
104
1037
66
7
66
001
ELECTRIC SYSTEM - OPERATION PRINCIPLE
