CK22/CK22H
1
3
2
196WA36B

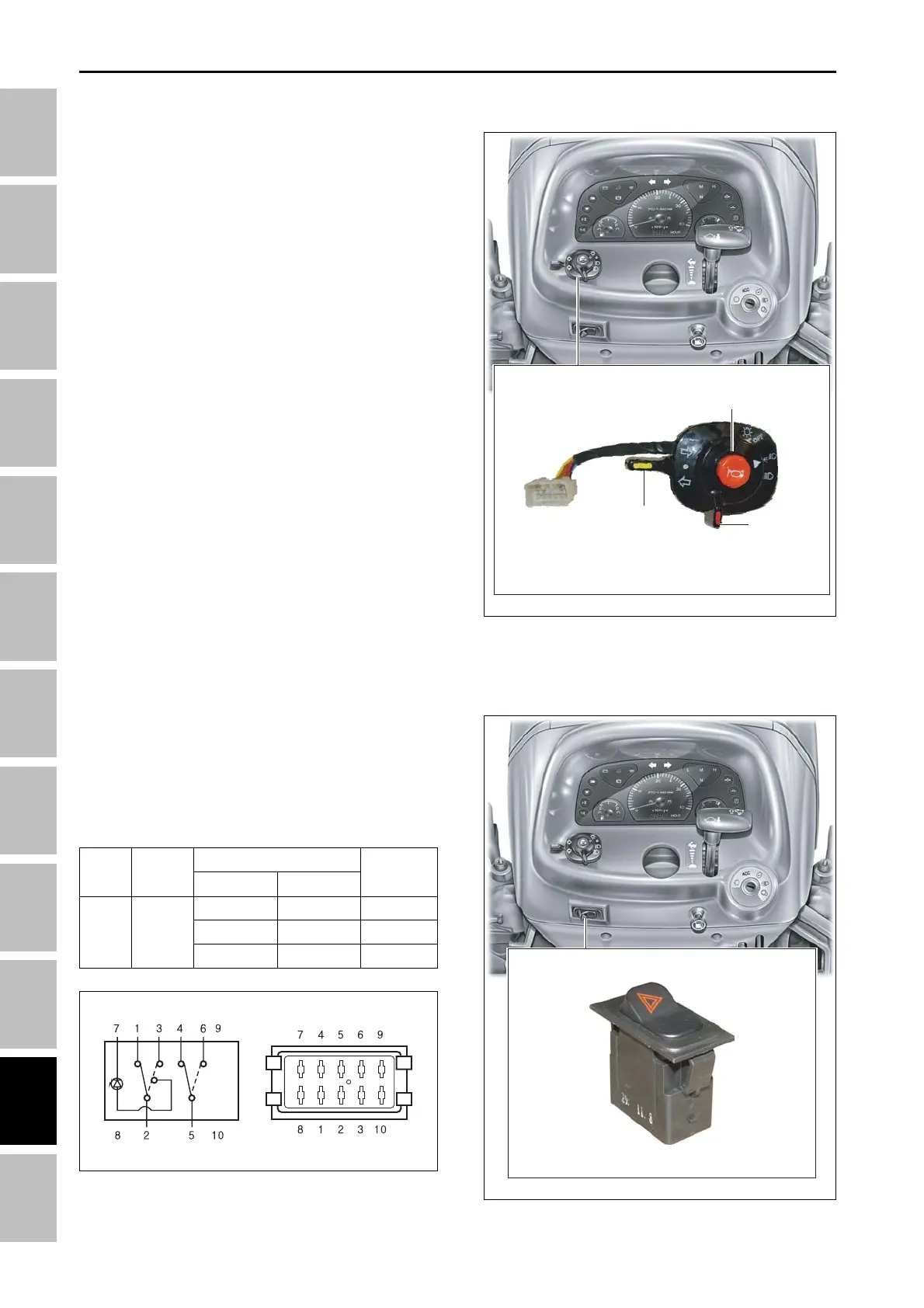

4.3 LIGHTING SYSTEM
4.3.1 HEADLAMP SWITCH
When operating the switch to the 1st position, the
headlamps (low beam) and tail lamps are turned on.
When operating the switch to the 2nd position, the
headlamps (high beam) and tail lamps are turned on.
When the switch is in “headlamp (high)” position, the
high beam indicator (blue lamp) illuminates on the in-
strument panel.
4.3.2 TURN SIGNAL SWITCH
The right turn signal lamp comes on when pushing the
switch up.
The left turn signal lamp comes on when pulling the
switch down.
(1) Headlamp switch (3) Horn switch
(2) Turn signal switch
196WA39B
4.3.3 HAZARD WARNING FLASHER SWITCH
The Hazard Warning Flasher Switch Is Installed
On The Left Side Of The Instrument Panel.
When operating the tractor on the road or in dangerous
situations, turn the switch ON. When the switch is ON,
the front combination lamps and tail lamps will flash.
Continuity
Continuity
Continuity
Range Result
Tester’s measuring point
Black lead
Connector 3
Connector 6
Connector 7
Resis-
tance
Red lead
Connector 2
Connector 5
Connector 2
Switch
operation
status
operation
ELECTRIC SYSTEM - SERVICING
