CK22/CK22H

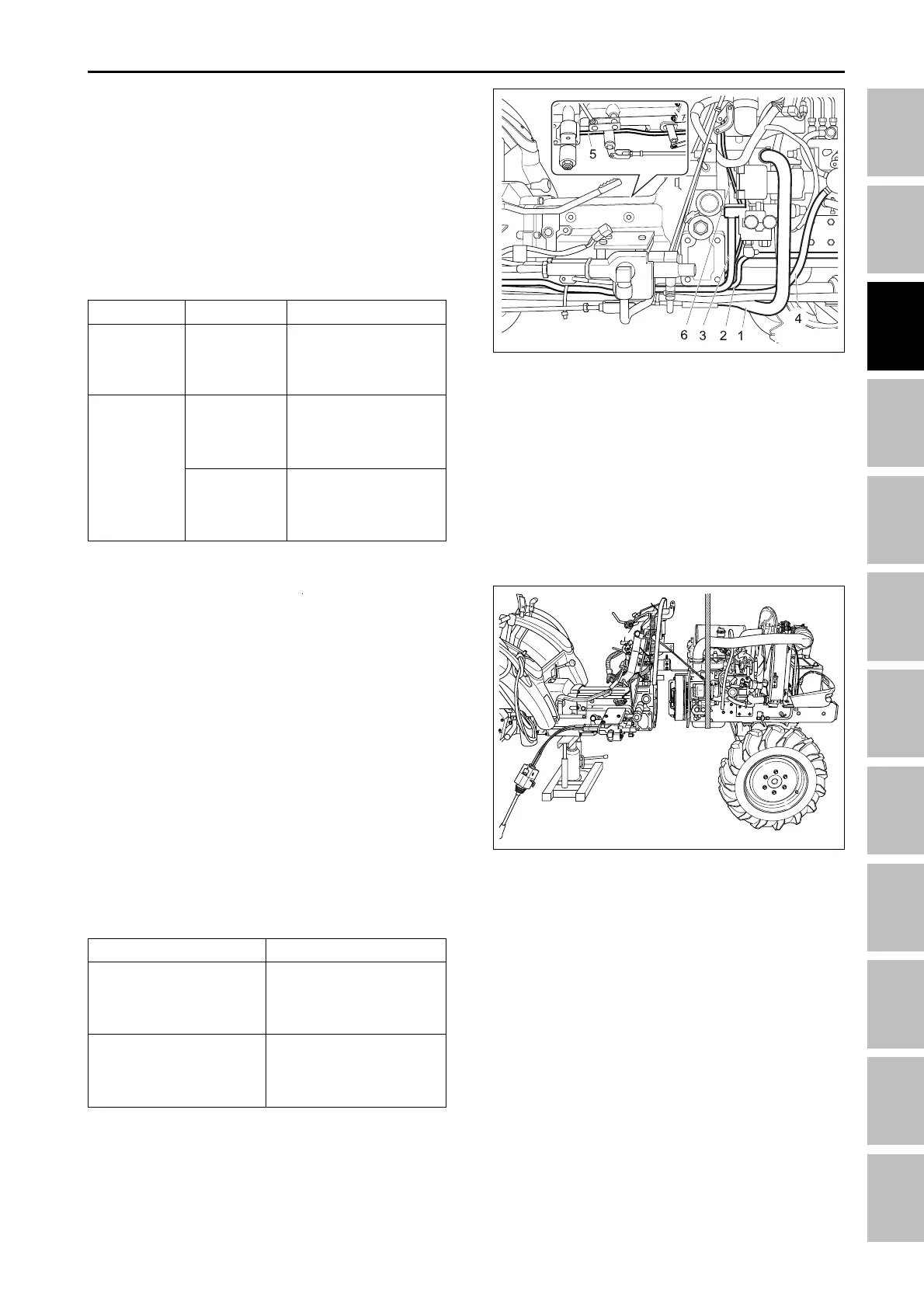

5.1.8 DISASSEMBLING ENGINE &
CLUTCH HOUSING
1. Disconnect the brake rod (RH/LH).
2. Remove the HST control bar.
3. Disconnect the bonnet wiring and the battery termi-
nal (+).
4. Place the jack to the bottom of the clutch housing.
5. Raise the engine and support the clutch housing.
6. Remove the starting motor, bolts & nuts and then
remove the engine by pulling it slowly.
(When reassembling)
• Apply grease to the splines.
• Apply liquid gasket (Three Bond 1,208D or equivalent)
to joint face of the engine and clutch housing.
Item
Engine and clutch
housing mounting
screws, nuts
Engine and clutch
housing mounting stud
bolts
Tightening torque
77.5 ~ 90.2 Nm
7.9 ~ 9.2 kgf-m
57.1 ~ 66.5 lb-ft
39.2 ~ 49.0 Nm
4.0 ~ 5.0 kgf-m
28.9 ~ 36.2 lb-ft
5.1.7 HYDRAULIC PIPES
1. Remove the suction pipe 3 (1), hydraulic pipe (3),
cooling pipe 4 (2), fuel pipe 2 (4), fuel pipe 3 (6) and
cooling pipe 3 (5).
(When reassembling)
• Make sure to clamp connecting rubber pipe of in-
take pipe to prevent air entered.
• Apply hydraulic pipe connecting O-ring with grease
and take a precaution not to be damage.
Item
Joint bolt
Tightening
Bolt
Spec.
M18
M8
M10
Tightening torque
49.0 ~ 58.8 Nm
5.0 ~ 6.0 kgf-m
36.1 ~ 43.4 lb-ft
23.6 ~ 27.4 Nm
2.4 ~ 2.8 kgf-m
17.4 ~ 20.2 lb-ft
23.6 ~ 27.4 Nm
2.4 ~ 2.8 kgf-m
17.4 ~ 20.2 lb-ft
(1) Suction pipe 3 (4) Fuel pipe 2
(2) Cooling pipe 4 (5) Cooling pipe 3
(3) Hydraulic pipe (P1) (6) Fuel pipe 3
196W311A
196W302A
