CK22/CK22H
[CK22]
1. Place the jack under the middle case.
2. Hoist the clutch housing by the nylon lift strap.
3. Remove the bolts (3), (4), nuts (6).
(When reassembling)
• Apply liquid gasket (Three bond 1280D or
equivalent) to joint face of mid case after eliminat-
ing the water and oil.

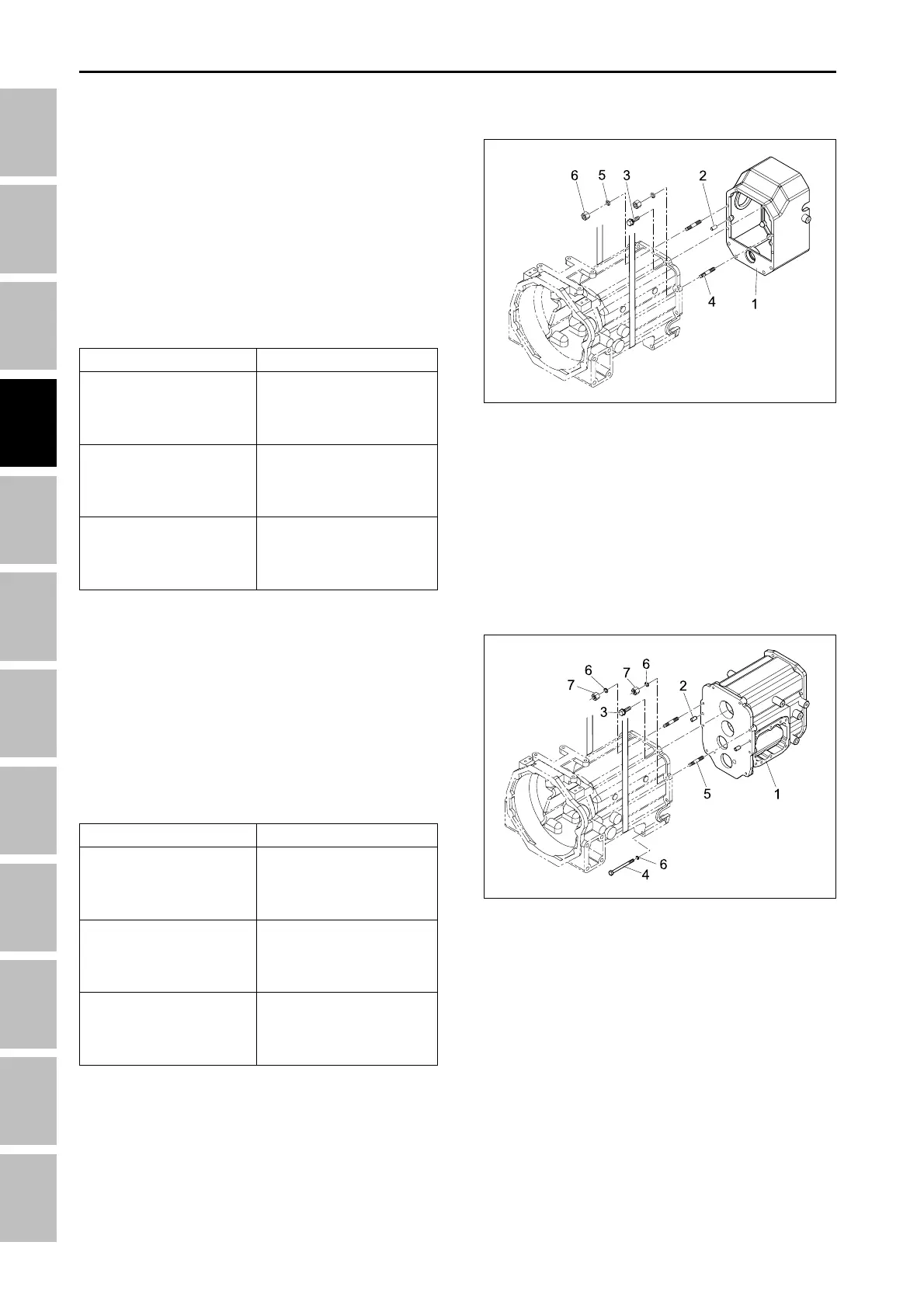

(1) Middle case (5) Stud
(2) Straight pin (6) Spring washer
(3) Bolt (7) Nut
(4) Bolt
196W451A
Item
Clutch housing and mid
case mounting screws
Clutch housing and mid
case mounting nuts.
Clutch housing and mid
case mounting stud
bolts
Tightening torque
77.5 ~ 90.2 Nm
7.9 ~ 9.2 kgf-m
57.1 ~ 66.5 lb-ft
102.9 ~ 117.6 Nm
10.5 ~ 12.0 kgf-m
76.9 ~ 86.8 lb-ft
39.2 ~ 49.0 Nm
4.0 ~ 5.0 kgf-m
28.9 ~ 36.2 lb-ft
(1) HST case (4) Stud
(2) Straight pin (5) Spring washer
(3) Bolt (6) Nut
196W450A
Item
Clutch housing and
HST case mounting
screws
Clutch housing and
HST case mounting
nuts
Clutch housing and
HST case mounting
stud bolts
Tightening torque
77.5 ~ 90.2 Nm
7.9 ~ 9.2 kgf-m
57.1 ~ 66.5 lb-ft
102.9 ~ 117.6 Nm
10.5 ~ 12.0 kgf-m
76.9 ~ 86.8 lb-ft
39.2 ~ 49.0 Nm
4.0 ~ 5.0 kgf-m
28.9 ~ 36.2 lb-ft
4.18 DISASSEMBLING THE CLUTCH
HOUSING AND MIDDLE CASE
[CK22H]
1. Place the jack under the HST case.
2. Hoist the clutch housing by the nylon lift strap.
3. Remove the bolts (3) and nuts (6).
(When reassembling)
• Apply liquid gasket (Three bond 1,208D or
equivalent) to joint face of clutch housing and case
after eliminating the water, oil and stuck liquid
gasket.
TRANSMISSION - SERVICING
