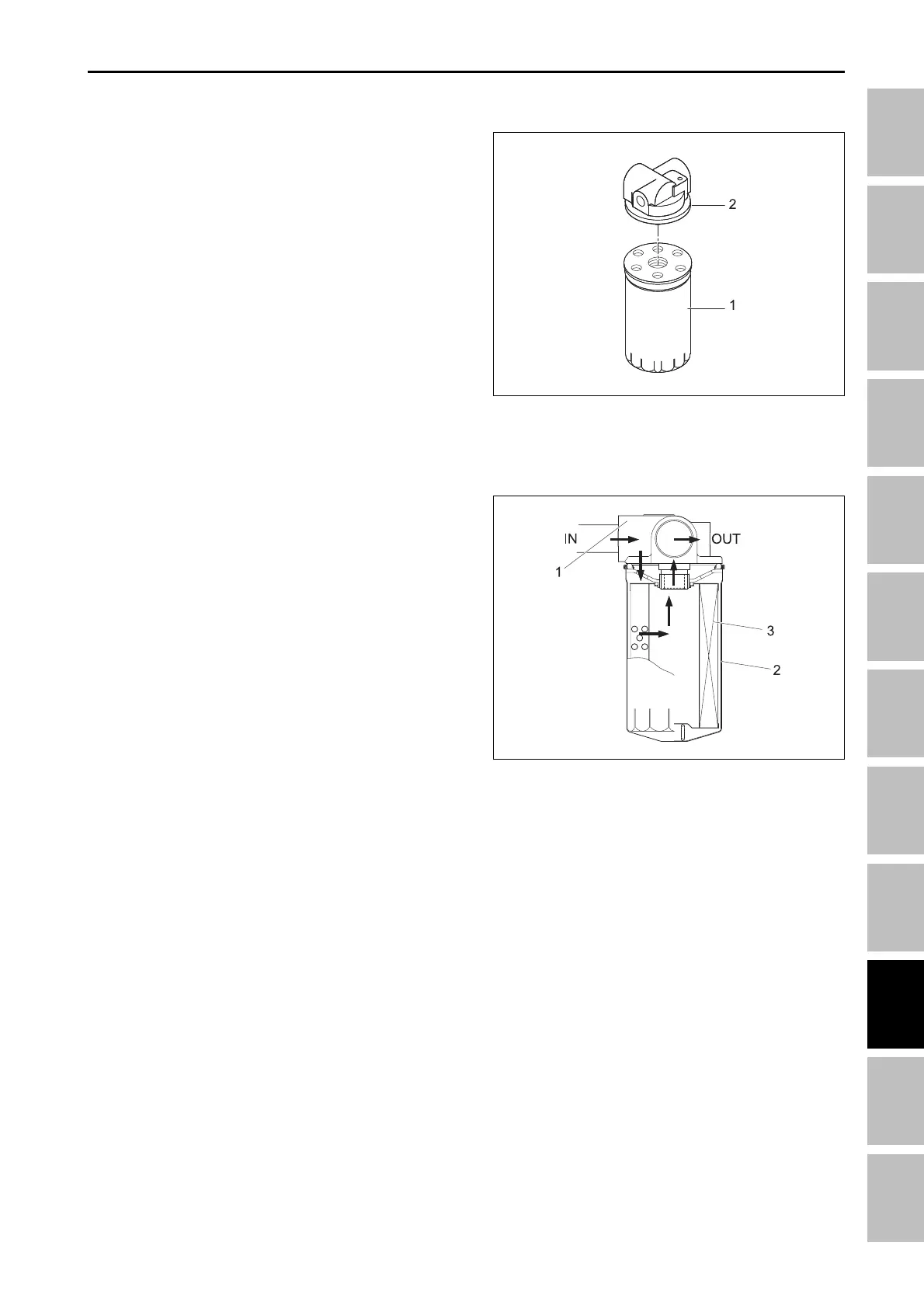

2.3 OIL FILTER
2.3.2 FUNCTION AND OPERATION
A. FUNCTION
It filters any particles or contamination.
B. OPERATION PRINCIPLE
The filtering system is composed of filter bracket and
element ass’y.
The filter used for CK series tractors is applicable to
both hydraulic lift and steering control circuits.
The hydraulic oil flows into the IN port of the filter
bracket. The transmission oil is delivered into the hy-
draulic element ass’y (3) and delivered out through the
outlet port to the hydraulic pump. All foreign substances
are filtered by the element at this time.
C. TO CHECK
The hydraulic filter shall be replaced every service term
of 200 hours.
(1) Filter bracket
(2) Hydraulic filter
(3) Hydraulic element ass’y
196W905B
2.3.1 STRUCTURE OF OIL FILTER
The suction filter (1) is a canister-type filter and should
be replace after 200 hour of use.
(1) Hydraulic filter
(2) Filter bracket
196W904B
