CK22/CK22H

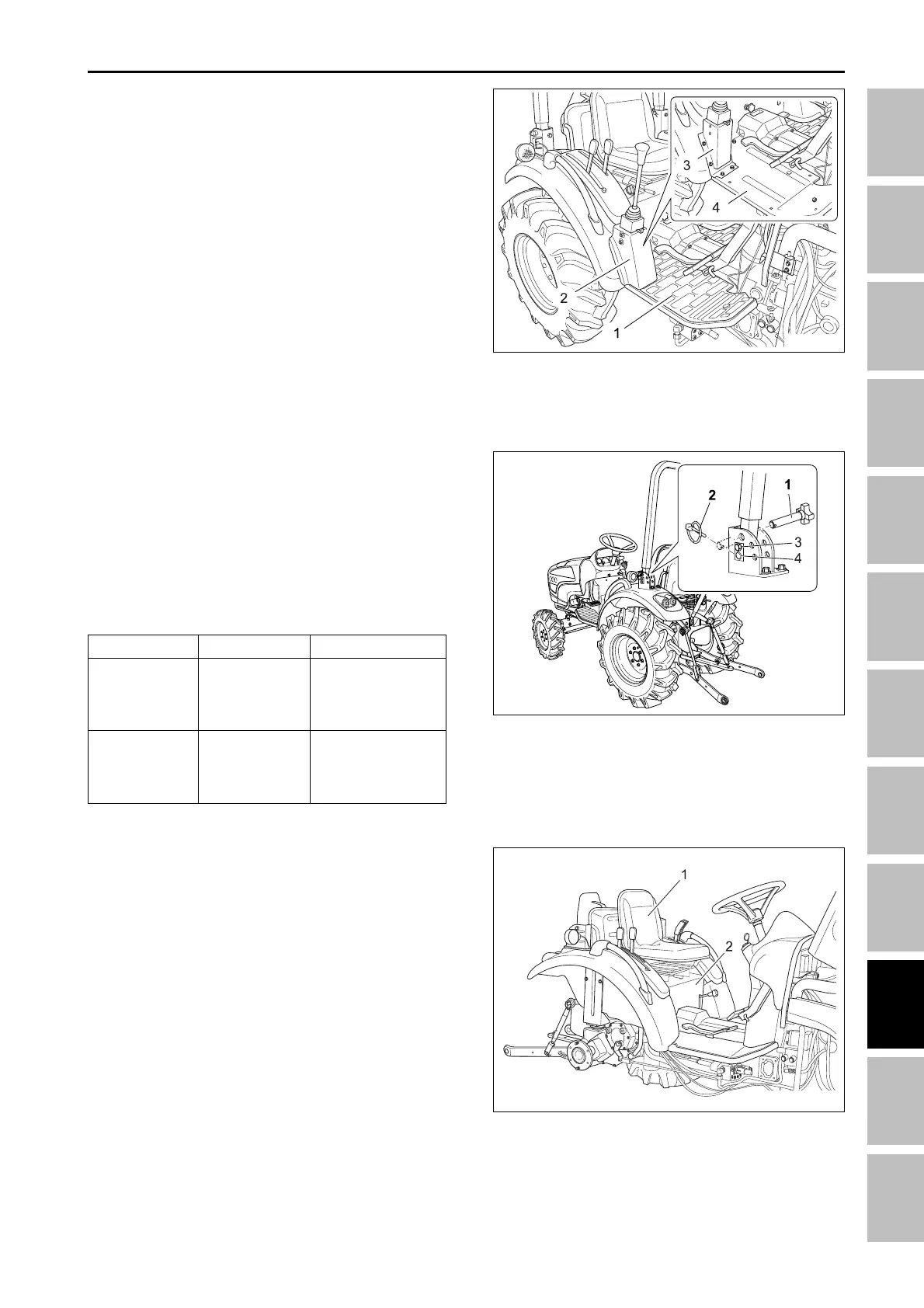

4.3.3 SEPARATING ROPS AND TIRES
1. Remove the lynch pin (2) and the lock pin (1) from
the ROPS frame.
2. Loosen the lock nuts (3) and remove the pin (4).
3. Remove ROPS.
4. Place a jack securely to the bottom of the rear axle.
5. Remove the nuts & bolts from the wheel.
6. Remove tire and wheel.
196W9A6A
4.3.2 PLATFORM
1. Remove the step mat (LH/RH) (1).
2. Remove the joystick mounting bolts and disconnect
the cover (2).
3. Remove the frame (3).
4. Remove the platform (LH/RH) (4).
196W9A5A
(1) Step mat (3) Frame
(2) Cover (4) step
(1) Lock pin (3) Bolt
(2) Lynch pin (4) Pin
4.3.4 SEAT
1. Remove the bolts under seat frame and then re-
move the seat (1).
(1) Seat
(2) Front cover
196W9A7A
Item
ROPS lock
bolt
Rear Wheel
Blot
Tightening torque
48.1 ~ 55.8 Nm
4.9 ~ 5.7 kgf-m
35.5 ~ 41.2 lb-ft
215 Nm
22 kgf-m
160 lb-ft
Spec.
M10
M16
