CK22/CK22H

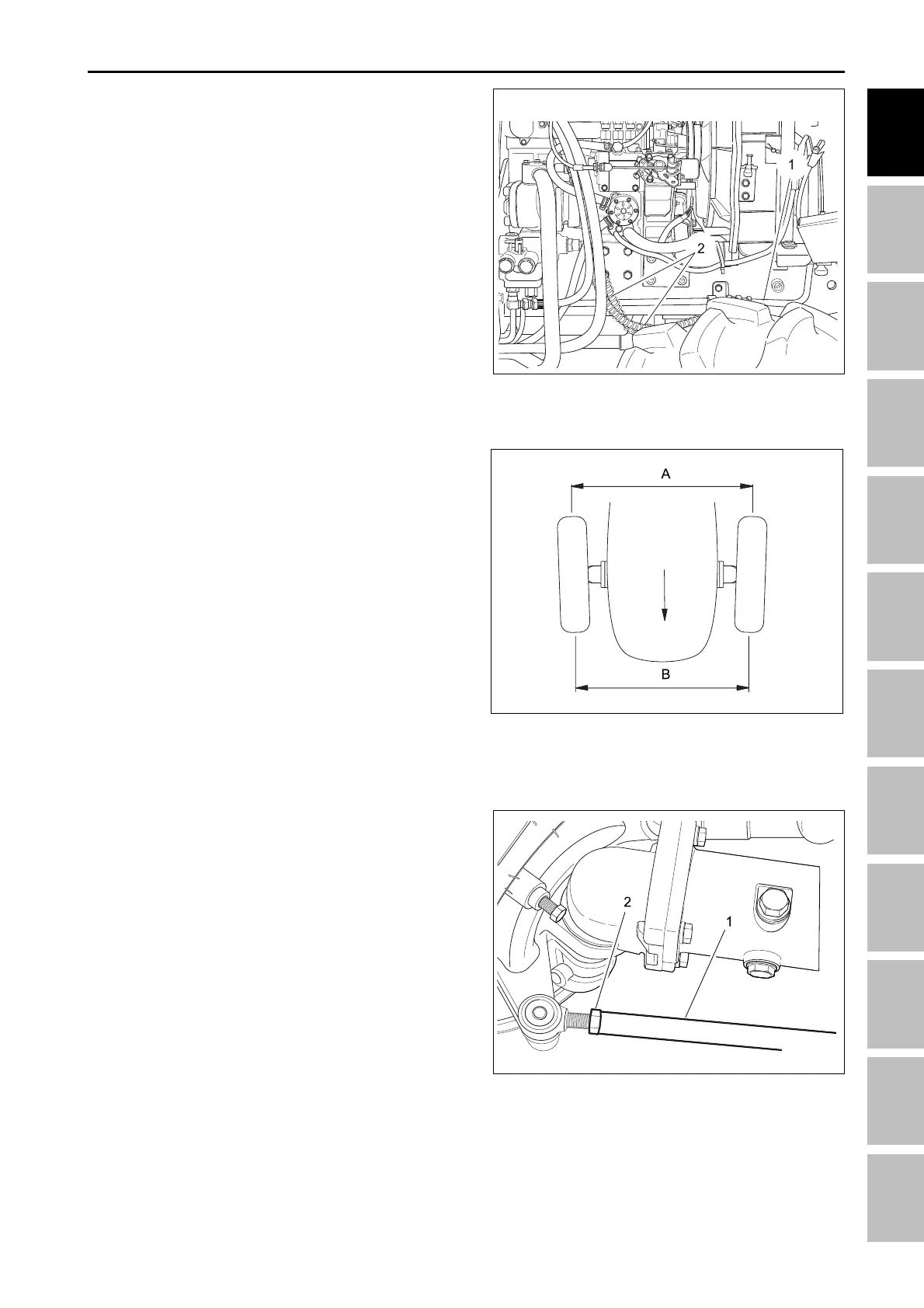

(A) Wheel - to - wheel distance at rear
(B) Wheel - to - wheel distance at front
8.4.6 ADJUSTING TOE-IN
1. Park tractor on a flat place.
2. Turn steering wheel so front wheels are in the
straight ahead position.
3. Lower the implement, lock the park brake and stop
the engine.
4. Measure distance between tire beads at front of tire,
hub height.
5. Measure distance between tire beads at rear of tire,
hub height.
6. Front distance should be 2 to 8 mm less than rear
distance. If not, adjust tie rod length.
196W144A
(1) Tie rod (2) Lock nuts
A. ADJUSTING PROCEDURE
1. Loosen the lock nut and turn the turnbuckle to ad-
just the rod length until the proper toe-in measure-
ment is obtained.
2. Retighten the lock nut.
196W145A
HST
(1) HST oil line (2) Power steering line
196W143B
8.4.5 CHECKING HST OIL LINE &
POWER STEERING LINE
1. Check to see that all hydraulic lines and hose
clamps are tight and undamaged.
2. If damage is found you should replace the hose or
clamp at once.
GENERAL - CHECK AND MAINIENANCE
