Daedong CK22 User Manual

6-12
DS35-W00 May. 2007
CLUTCHCLUTCH CLUTCHCLUTCH
CLUTCH
TRANSMISSIONTRANSMISSION TRANSMISSIONTRANSMISSION
TRANSMISSION
ENGINEENGINE ENGINEENGINE
ENGINE
HSTHST HSTHST
HST
FRONT AXLEFRONT AXLE FRONT AXLEFRONT AXLE
FRONT AXLE
STEERINGSTEERING STEERINGSTEERING
STEERING
BARKEBARKE BARKEBARKE
BARKE
ELECTRICELECTRIC ELECTRICELECTRIC
ELECTRIC
INDEXINDEX INDEXINDEX
INDEX
HYDRAULICHYDRAULIC HYDRAULICHYDRAULIC
HYDRAULIC
GENERALGENERAL GENERALGENERAL
GENERAL
REAR AXLEREAR AXLE REAR AXLEREAR AXLE
REAR AXLE
CK22/CK22H

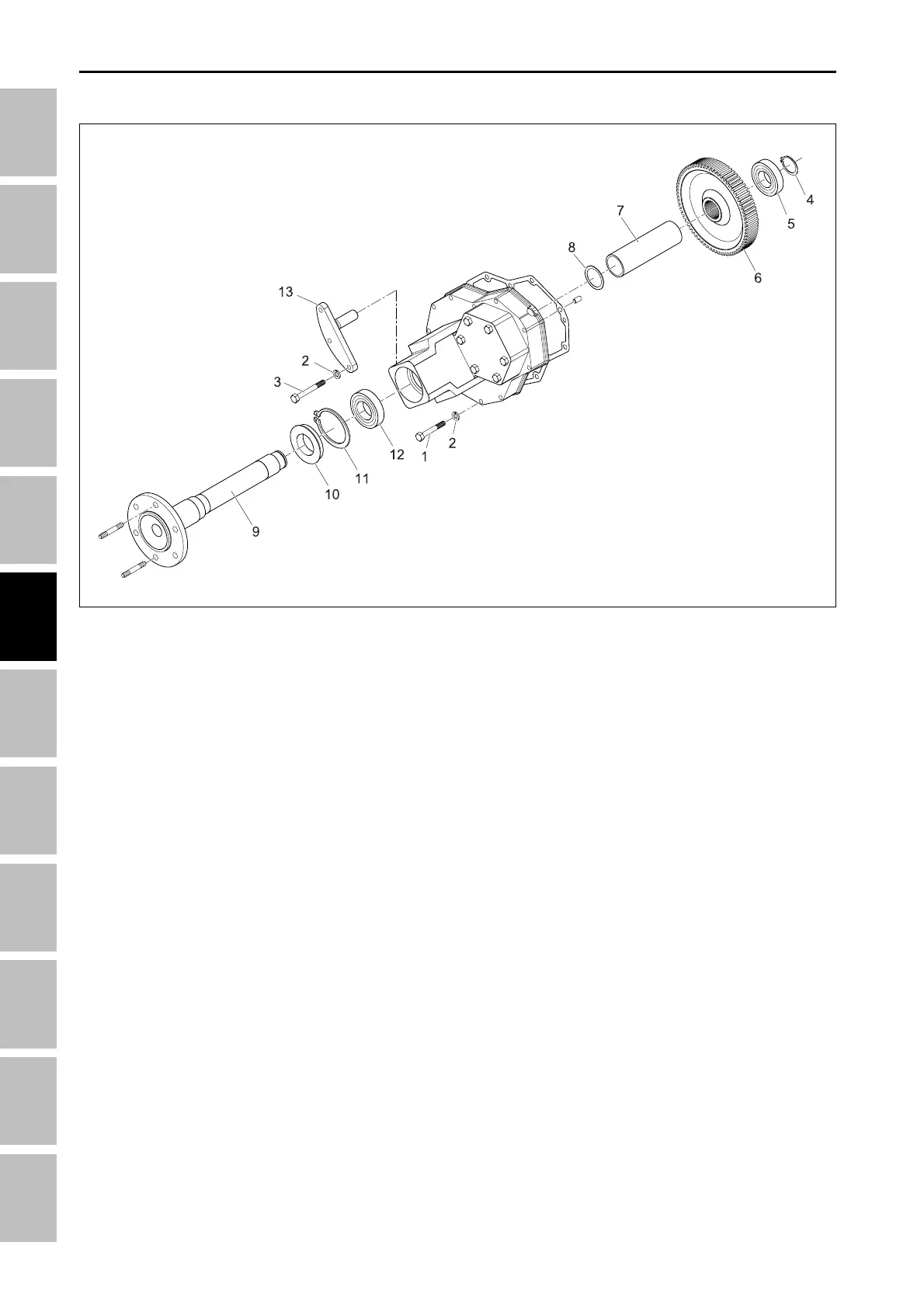

(1) Bolt
(2) Spring washer
(3) Bolt
(4) Cir-clip
(5) Ball bearing
196W510A
(6) 72T bear
(7) Spacer
(8) Collar
(9) Rear axle
(10) Oil seal
(11) Cir-clip
(12) Ball bearing
(13) Hitch bracket
1. Remove the cir-clip (6).
2. Remove the ball bearing (7), with a puller.
3. Take out the 72T gear (8), spacer (9), collar (10).
4. Tap out the rear axle (11) and oil seal (12).
5. Remove the cir-clip (13) and bearing (14).
(When reassembling)
• Replace the oil seal (12) with a new one and apply
grease to the oil seal (12) and install it, noting its
direction.
4.7 REAR AXLE
REAR AXLE - SERVICING
