CK22/CK22H

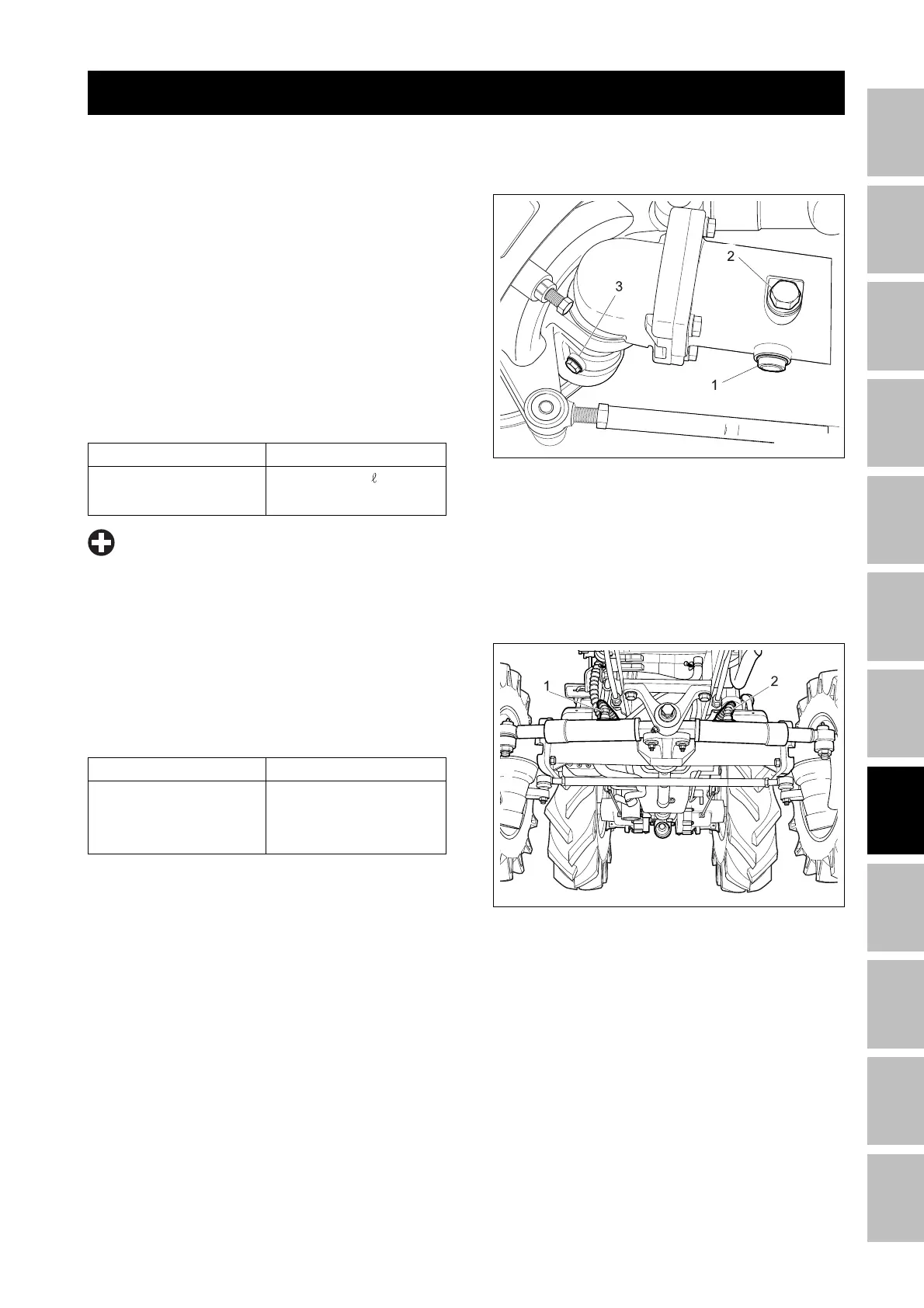

5.1.2 DISCONNECTING HYDRAULIC
HOSES
1. Remove the steering hoses.
(When reassembling)
(1) Steering hose (L) (2) Steering hose (R)
5.1 DISASSEMBLING AND ASSEM-
BLING
5.1.1 DRAINING FRONT AXLE CASE OIL
1. Place oil pans underneath the front axle case.
2. Remove the drain plug (3) both sides and filling
port plug (2) to drain the oil.
3. After draining, reinstall the drain plugs (3) and fill-
ing port plug (2).
(When refilling)
• Remove the filling port plug (2) and check gauge (1).
• Fill with the new oil up to the check plug port.
• After filling, reinstall the check gauge (1) and filling
port plug (2).
(1) Check plug (2) Filling port plug
(3) Drain plug
196W711A
196W714A
Item
Front axle case oil
Factory spec.
3.1
0.82 U.S.gal.
Item
Steering hoses
Tightening torque
24.5 ~ 29.4 Nm
2.5 ~ 3.0 kgf-m
18.1 ~ 21.7 lbs-ft
• Use SAE 90 gear oil. Refer to “LUBRICANTS,
FUEL AND COOLING WATER”.
IMPORTANT
5. SERVICING
FRONT AXLE - SERVICING
