CK22/CK22H
(Reference)
196W2F4B
At idle
speed
At
rated
speed
Item
Factory spec.
More than 49 kPa
0.5 kgf/cm
2
7.11 psi.
245 ~ 441 kPa
2.5 ~ 4.5 kgf/cm
2
36 ~ 64 psi.
Allowable limit
-
245 kPa
2.5 kgf/cm
2
36 psi.
Engine
oil
pressure
Item
Oil pressure switch
Tightening torque
14.7 ~ 19.6 Nm
1.5 ~ 2.0 kgf-m
10.8 ~ 14.5 lb-ft

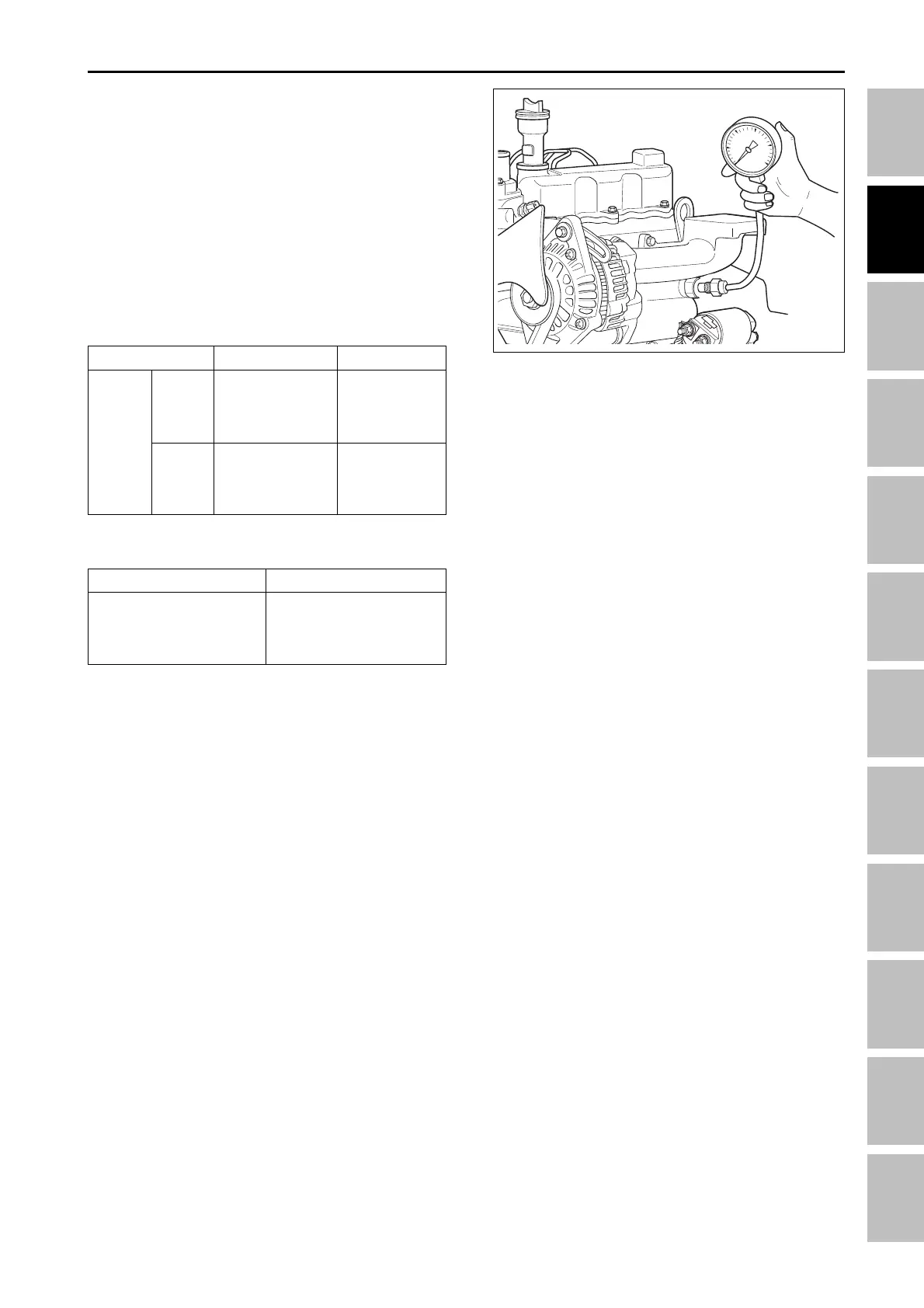

5.5 ENGINE OIL PRESSURE
1. Remove the oil pressure switch and install adap-
tors and pressure tester.
2. Start the engine and run it until it is warmed up, and
measure the oil pressure both at idling and rated
speed.
3. If the oil pressure is less than the allowable limit,
check the amount of oil, oil filter, oil pump relief
valve, oil passages and oil clearances.
(When reassembling)
• Supply the specified amount of recommended oil.
• The oil filter must not be clogged or broken.
ENGINE - MEASUREMENT AND ADJUSTMENT
