CK22/CK22H
2.3.3 TURNING TO LEFT
The operation for the left turn is same as that of right
turn except for the oil flow direction.

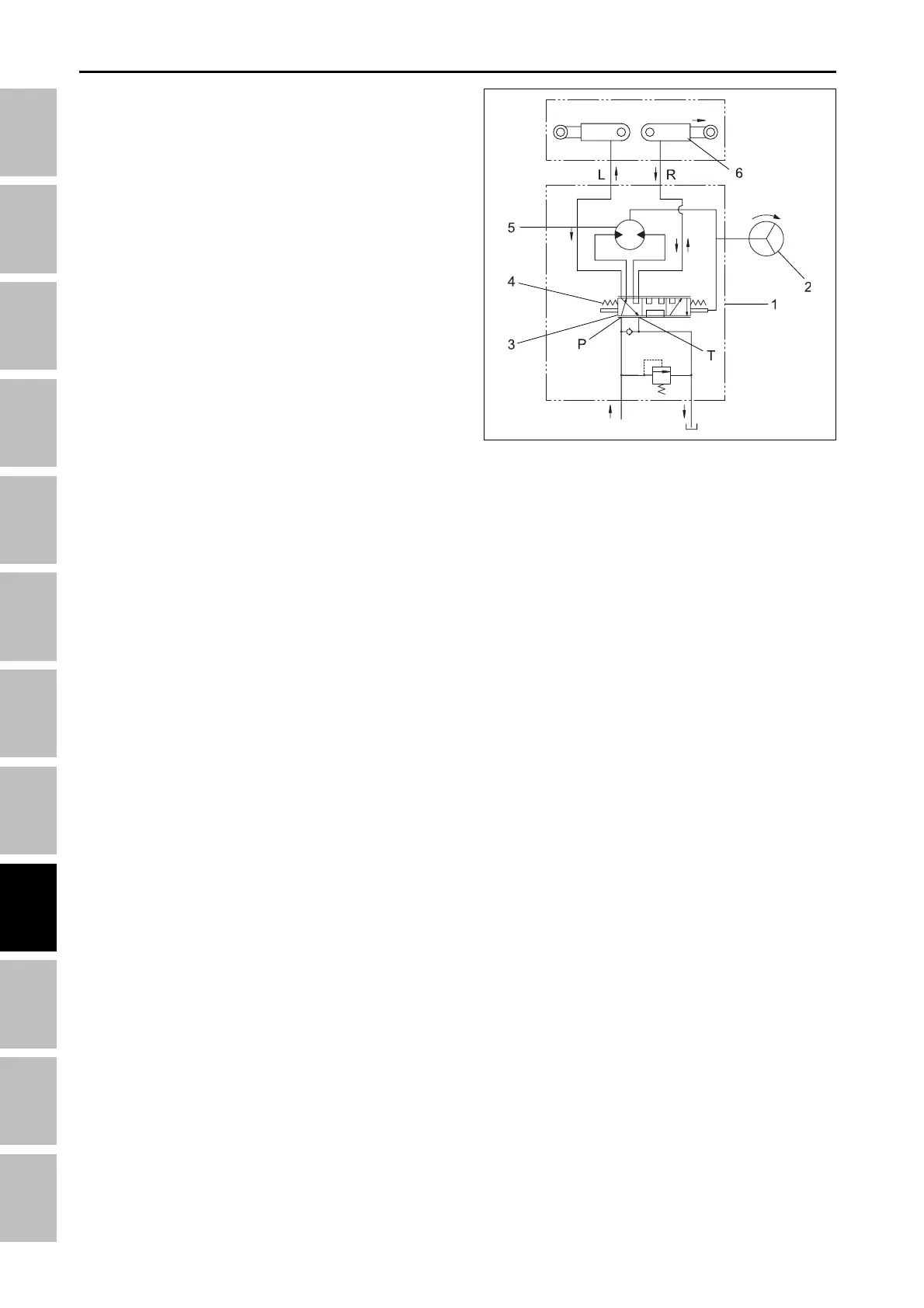

(1) Steering controller (4) Centering spring
(2) Steering wheel (5) Gerotor
(3) Control valve (6) Steering cylinder
2.3.4 MANUAL STEERING
In the case of manual steering due to the engine stop-
ping or hydraulic pump failure, the Gerotor operates as
manual trochoid pump.
If controlling the steering wheel, the rotor inside of the
Gerotor will be driven. Oil will flow through check valve
2 installed in housing from oil tank to port P, where it
operates the cylinder in the same passage as the power
steering control.
196W810B
STEERING SYSTEM - OPERATING PRINCIPLE
