CK22/CK22H

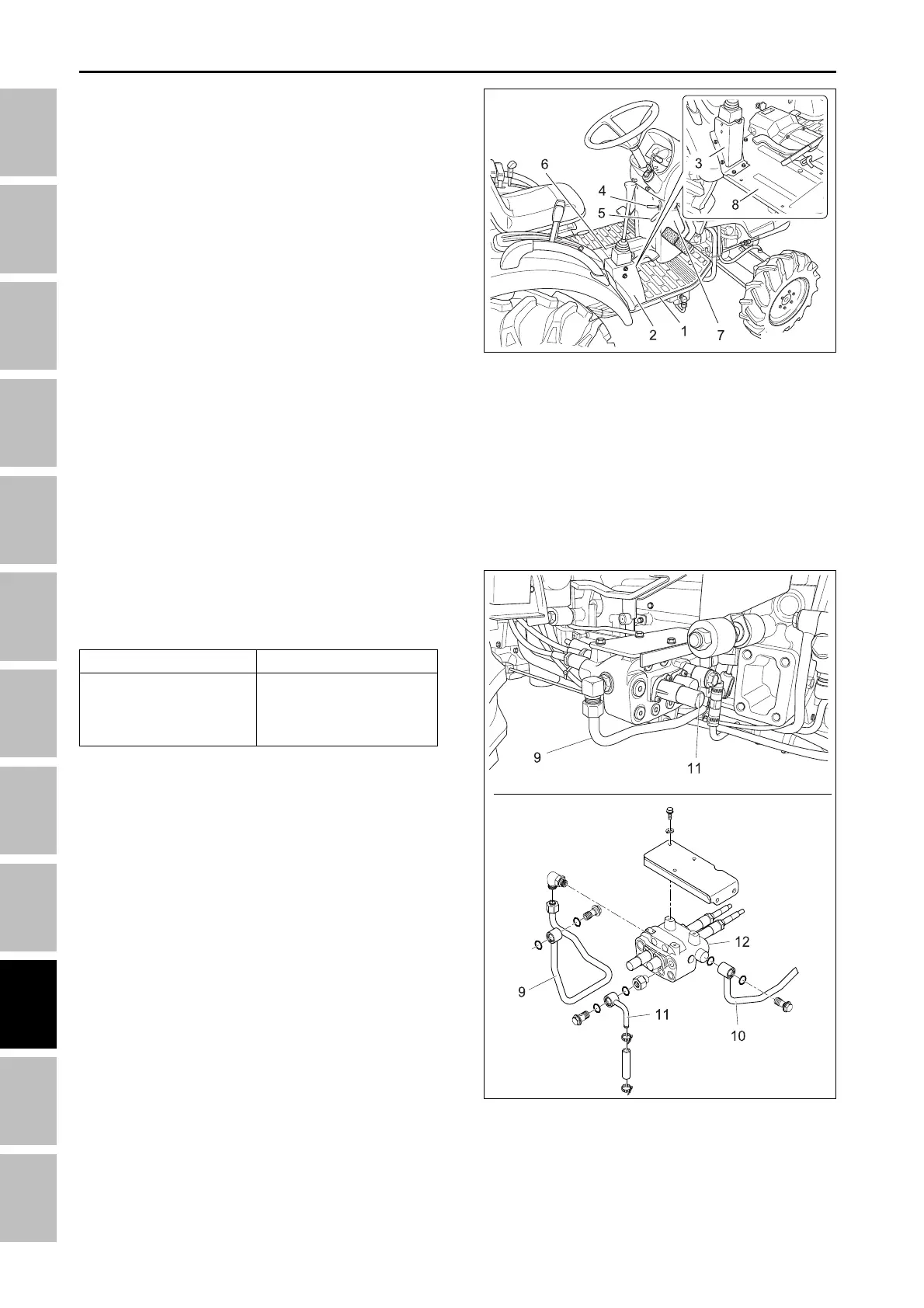

4.2 JOY-STICK VALVE DISASSEMBLY,
INSPECTION AND ASSEMBLY
4.2.1 JOY-STICK VALVE REMOVAL
1. Remove the step mat (1).
2. Loosen the joy-stick bolts and remove the cover (2).
3. Remove the frame (3) and push the joy-stick down.
4. Remove the parking brake lever grip (4) and the
speed set lever grip (5).
5. Remove the transmission cover (6) (CK22H).
6. Remove the instrument panel cover (down) (7).
7. Remove the step (RH) (8).
196W9A3A
(9) Hydraulic tube P1 (11) Return tube
(10) Hydraulic tube P2 (12) Valve
196W9B5A
(1) Step mat
(2) Cover
(3) Frame
(4) Parking brake lever grip
(5) Speed set lever grip
(6) Transmission cover
(7) Instrument panel cover
(8) Step
8. Remove the hydraulic tube P1 (9), hydraulic tube
P2 (10), and return tube (11).
9. Unscrew the bolts and remove the valve (12).
Item
Joint bolt
Tightening torque
44.1 Nm
4.5 kgf-m
32.5 lb-ft
HYDRAULIC SYSTME - SERVICING
