CK22/CK22H
196W246A

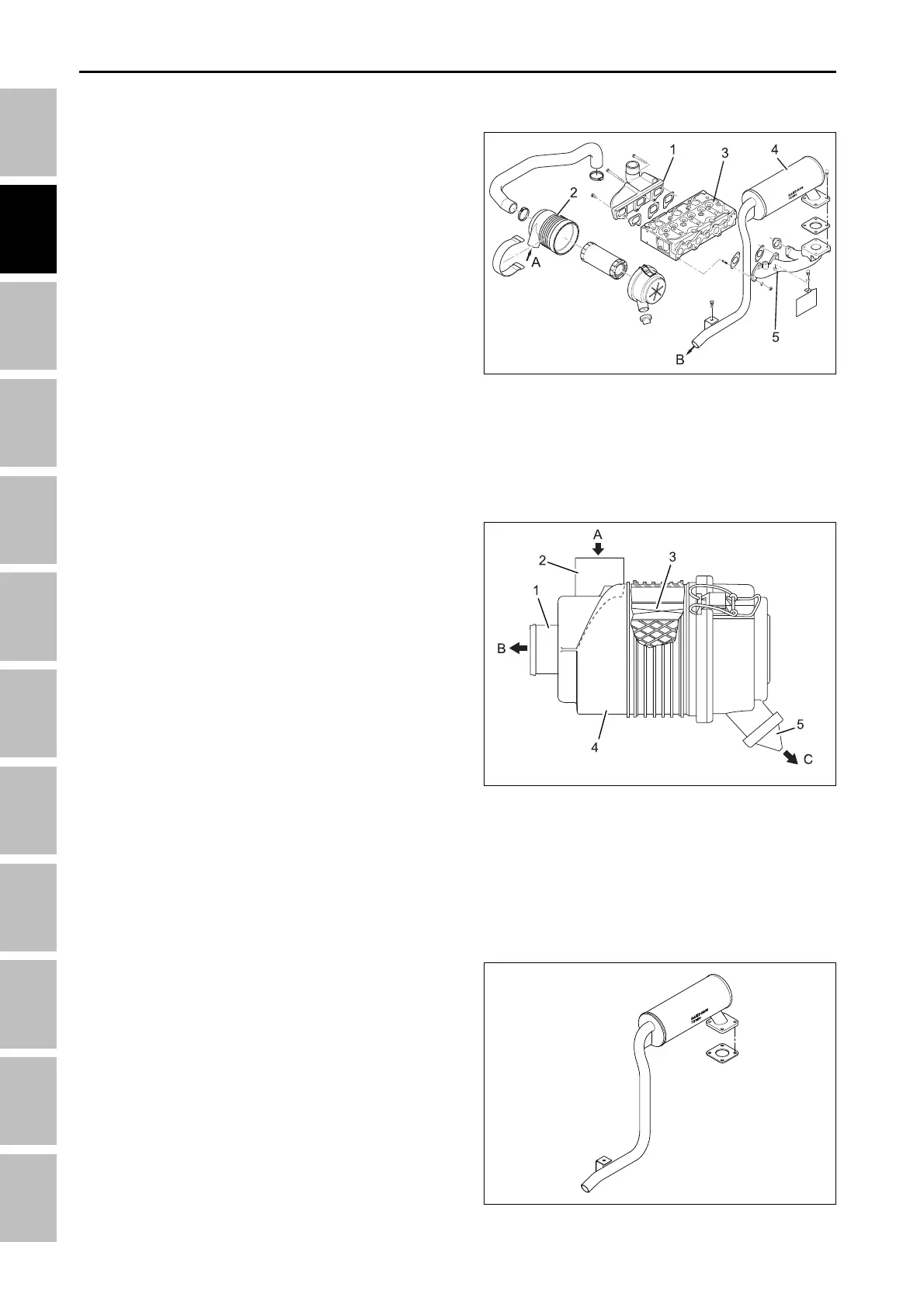

(A) Inlet air (3) Cylinder head
(B) Exhaust gas (4) Muffler
(1) Inlet manifold (5) Exhaust manifold
(2) Air cleaner
196W244B
196W245B
(A) Inlet air (1) Outlet port
(B) To inlet manifold (2) Inlet port
(C) Heavier dust (3) Air cleaner element
(4) Body
(5) Evacuator
3.6.2 AIR CLEANER
The air cleaner is dry-cyclone type and easy to maintain.
The air from the inlet port (2) circulated along the fin (3)
and around the air cleaner element (4) and the heavier
dust is carried to the evacuator (6), where the dusts
exhaust port. The fine dust in the air is filtered with the
air cleaner element (4), and the filtered air flows to the
outlet port (1).
3.6.3 MUFFLER
The exhaust noises are absorbed and dumped, while
the gas pass through a series of holes on the inner
tube and fiberglass wool of muffler.
3.6 INTAKE AND EXHAUST SYSTEM
3.6.1 FLOW OF INTAKE AIR AND EXHAUST
GAS
ENGINE - OPERATING PRINCIPLE
