CK22/CK22H

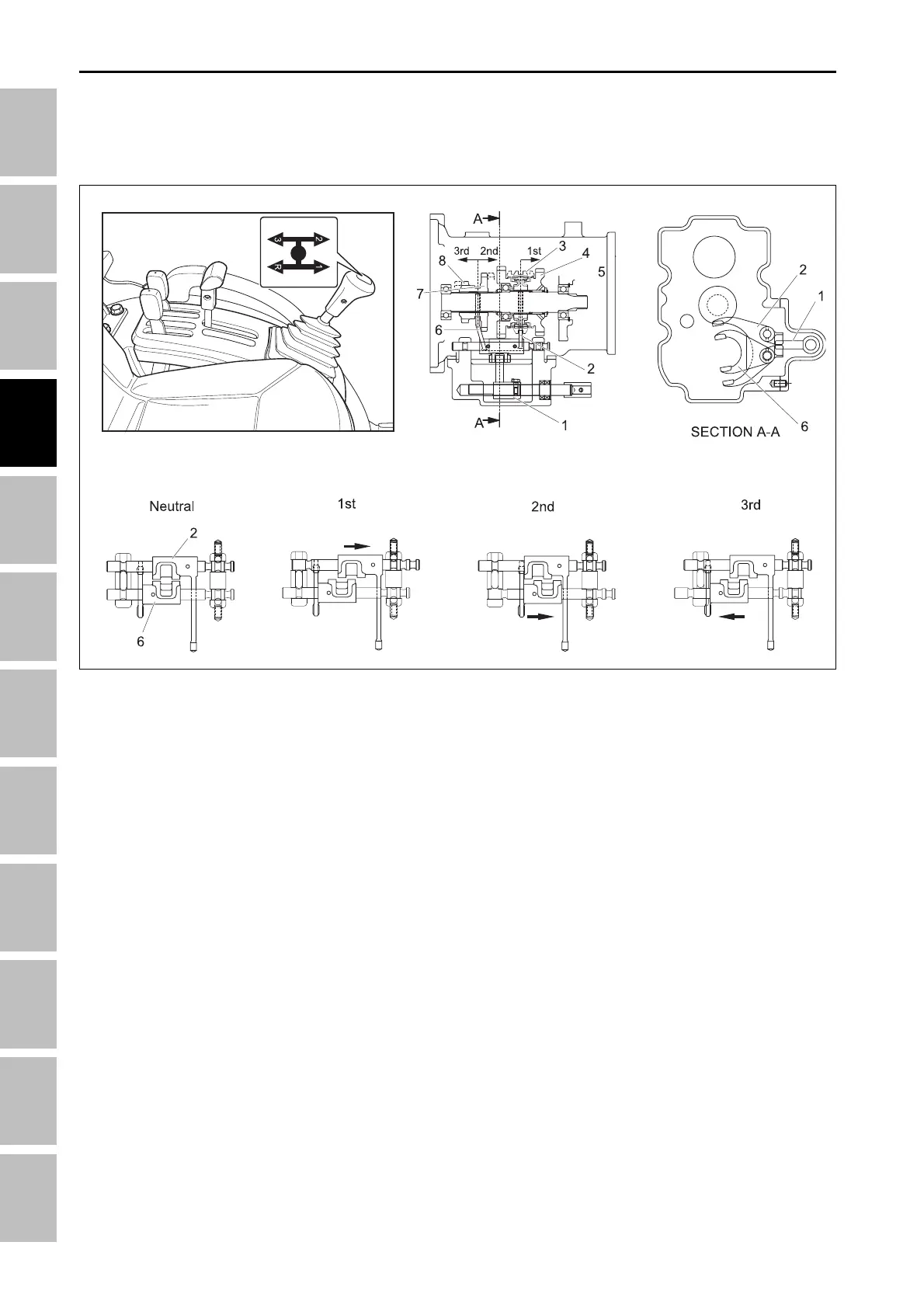

2.3 TRANSMISSION SHIFT LINKAGE STRUCTURE
2.3.1 MAIN SHIFT (CK22)
A. MAIN GEAR SHIFT (1ST, 2ND & 3RD)
(1) Main shift arm
(2) Main shift fork 1
(3) Shifter
(4) 37T gear
• The transmission shift lever is located in left of
driver’s seat and connected to main shift arm (1),
main shift fork 1 (2) and main shift fork 2 (6).
• One transmission shift lever is enable from 1st to
3rd stage and easy to operate.
• If the transmission shift lever moved to right, main
shift arm (1) will be engaged with main shift fork 1
(2) in 1st stage transmission shift will be enabled.
• If the transmission shift lever moved to left, main
shift arm (1) will be engaged with main shift fork 2
(6) in 2nd and 3rd stage.
If the lever moved to front or rear, 2nd and 3rd trans-
mission shift will be enabled.
196W413A
(5) Connecter shaft
(6) Main shift fork
(7) 32T gear
(8) 22T gear
