CK22/CK22H

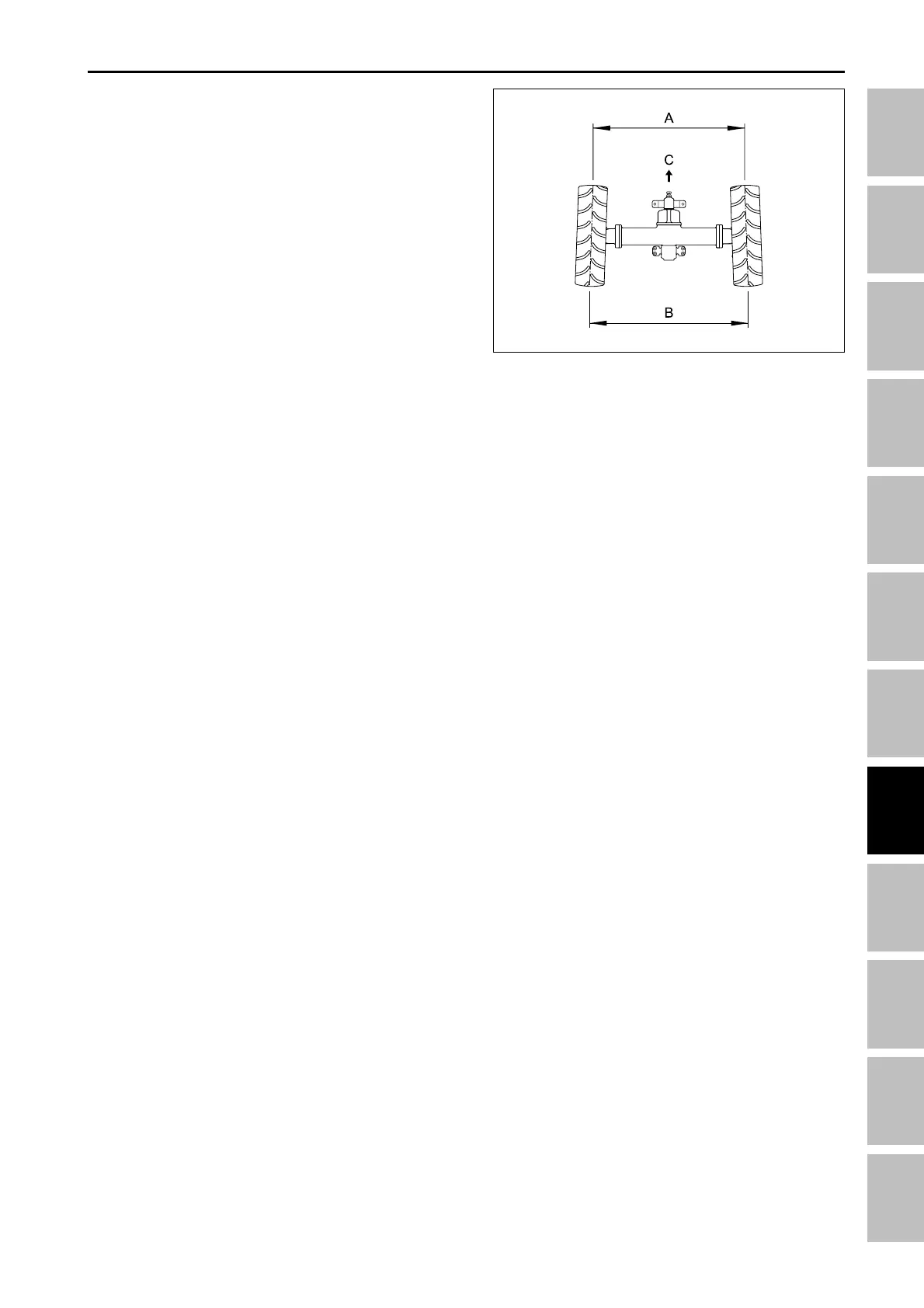

4. The front wheels tend to roll outward due to the
camber, but toe-in offsets it and ensures parallel
rolling of the front wheels. Another purpose of toe-
in is to prevent excessive and uneven wear of tires.
Tow-in
Tow-in (B-A) = 2 ~ 8 mm (0.079 ~ 0.315in.)
196W705A
(C) Front
2.3 DIFFERENTIAL SYSTEM
The differential pinion idles or rotates simultaneously
as well as rotates both differential side gears at the
same or different speed depending on the condition of
road or the tractor’s moving direction. It is the main
principle of the differential system.
For detail of differential system, please refer to 6-5 in
chapter “Rear axle”.
FRONT AXLE - OPERATING PRINCIPLE
