CK22/CK22H
196W720A
196W719B

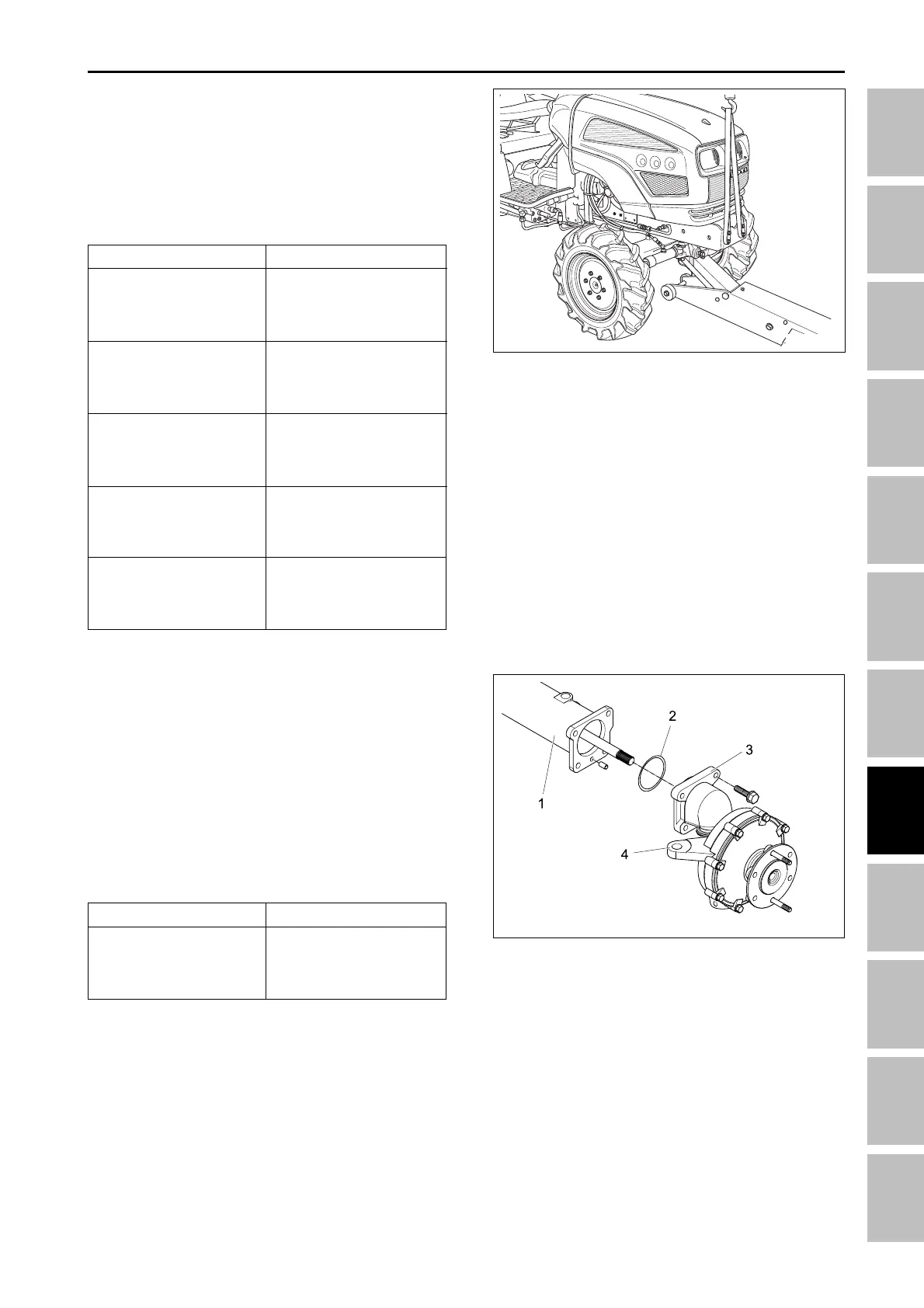

5.1.5 DISASSEMBLING FRONT AXLE
1. Place the jacks under the front axle, and hang up
the bumper by the hoist to support it.
2. Remove the shaft bracket 1 mounting screws and
shaft bracket 2 mounting screws.
3. Separate the front axle from the front support.
4. Remove the front wheels.
5.1.6 DISSEMBLING BEVEL GEAR CASE
AND FRONT GEAR CASE
1. Remove the bevel gear case mounting bolts.
2. Remove the bevel gear case (3) and front gear case
(4) as a unit from the front axle case (1).
(When reassembling)
• Apply grease to the O-ring (2) and take care not to
damage it.
• Do not interchange right and left bevel gear case
assemblies and front gear case assemblies.
(1) Front axle case (2) O-ring
(3) Bevel gear case (4) Front gear case
Item
Front bracket bolts
Rear bracket bolts
Front wheel mounting
nuts
Front wheel mounting
bolts
Front wheel mounting
stud
Tightening torque
123.6 ~ 147.1 Nm
12.6 ~ 15.0 kgf-m
91.1 ~ 108.5 lbs-ft
123.6 ~ 147.1 Nm
12.6 ~ 15.0 kgf-m
91.1 ~ 108.5 lbs-ft
62.8 ~ 72.5 Nm
6.4 ~ 7.4 kgf-m
46.3 ~ 53.5 lbs-ft
77.5 ~ 90.2 Nm
7.9 ~ 9.2 kgf-m
57.2 ~ 66.5 lbs-ft
29.5 ~ 49.0 Nm
3.0 ~ 5.0 kgf-m
21.7 ~ 36.1 lbs-ft
Item
Bevel gear case
mounting screw
Tightening torque
123.5 ~ 147.0 Nm
12.6 ~ 15.0 kgf-m
91.2 ~ 108.4 lbs-ft
FRONT AXLE - SERVICING
