Daedong CK22 - Hazard Warning Switch; Flasher Unit

11-12
DS35-W00 May. 2007
CLUTCHCLUTCH CLUTCHCLUTCH
CLUTCH
TRANSMISSIONTRANSMISSION TRANSMISSIONTRANSMISSION
TRANSMISSION
ENGINEENGINE ENGINEENGINE
ENGINE
HSTHST HSTHST
HST
FRONT AXLEFRONT AXLE FRONT AXLEFRONT AXLE
FRONT AXLE
STEERINGSTEERING STEERINGSTEERING
STEERING
BARKEBARKE BARKEBARKE
BARKE
ELECTRICELECTRIC ELECTRICELECTRIC
ELECTRIC
INDEXINDEX INDEXINDEX
INDEX
HYDRAULICHYDRAULIC HYDRAULICHYDRAULIC
HYDRAULIC
GENERALGENERAL GENERALGENERAL
GENERAL
REAR AXLEREAR AXLE REAR AXLEREAR AXLE
REAR AXLE
CK22/CK22H
196WA57A

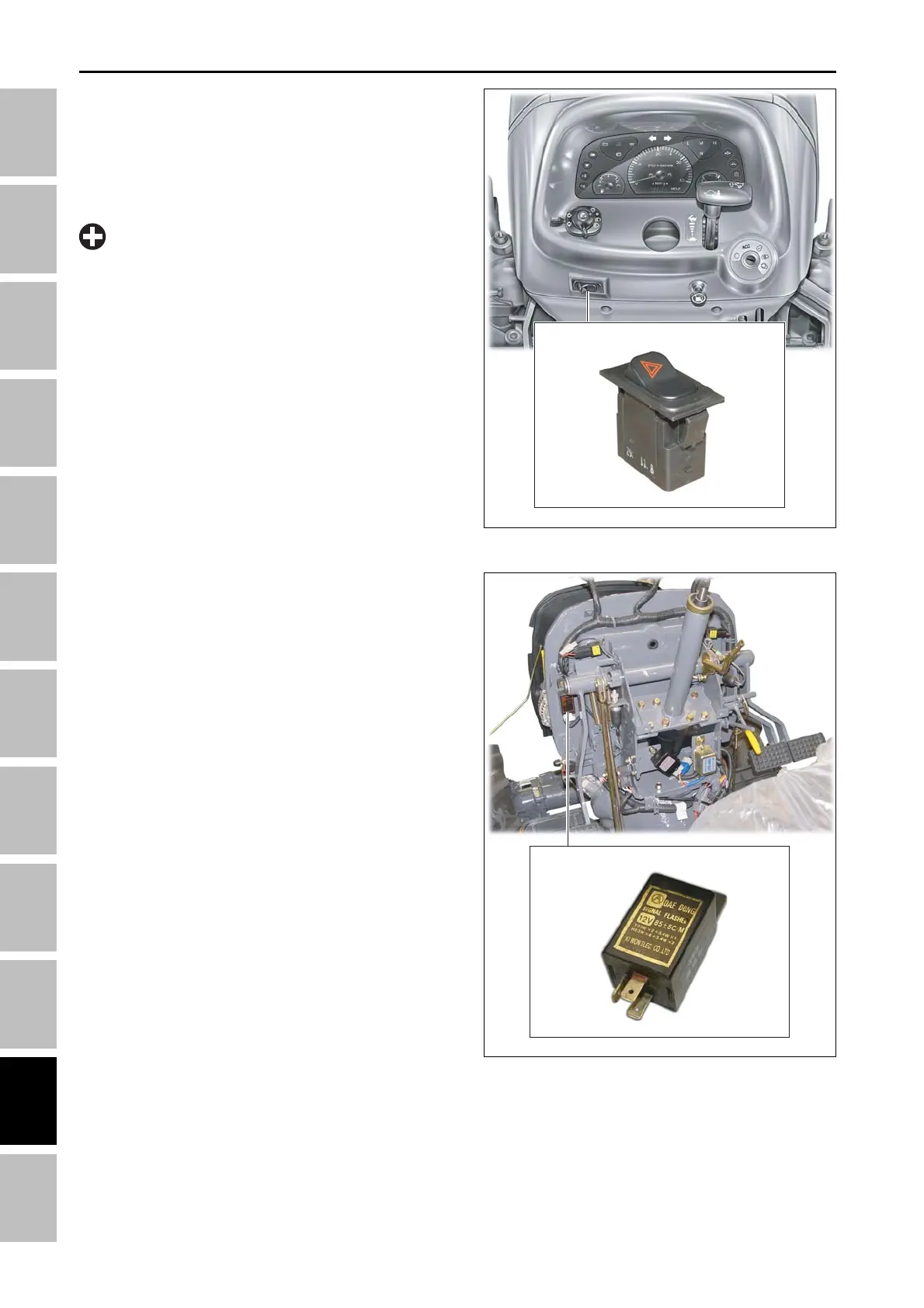

2.4.3 FLASHER UNIT
The flasher unit controls the flashing of the hazard
lights. This flasher unit is located inside of dash bezel.
196WA58A
2.4.2 HAZARD WARNING SWITCH
The hazard light switch is a rocker switch located on
the left-hand side of the dash.
When the hazard light switch is in the “ON” position,
both turn signal symbols located in combination meter
will illuminate green and flash.
• The hazard lights can be activated with the key
switch in the “OFF” position.
IMPORTANT
ELECTRIC SYSTEM - OPERATION PRINCIPLE
