CK22/CK22H

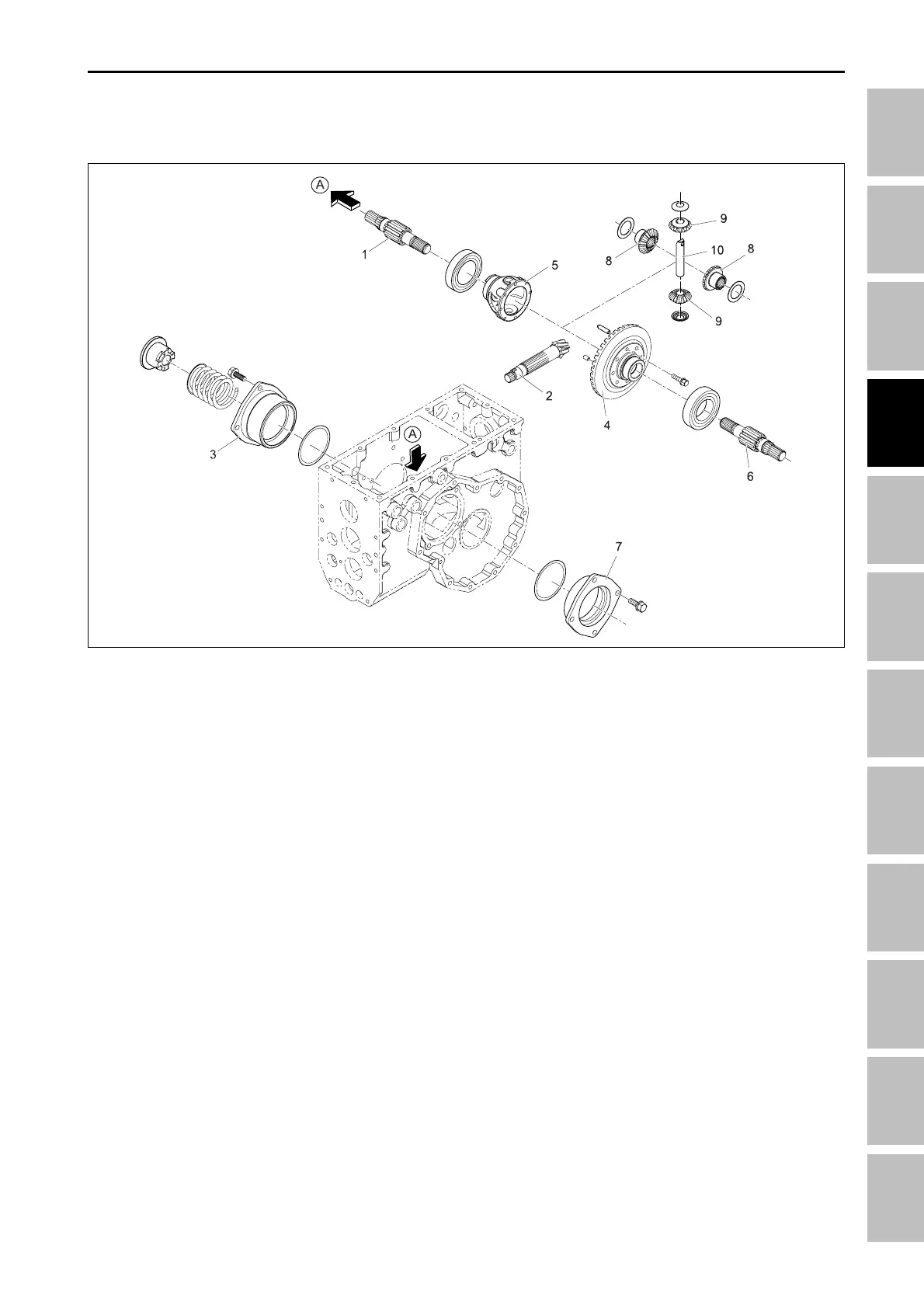

2.4 DIFFERENTIAL GEAR
2.4.1 STRUCTURE
(1) 11 gear shaft (RH)
(2) Spiral bevel pinion
(3) Differential bearing case (RH)
(4) Spiral bevel gear
(5) Rear differential case
(6) 11 gear shaft (LH)
(7) Differential bearing case (LH)
(8) Differential side gear
(9) Differential pinion
(10) Differential pinion shaft
• The differential gear assembly is a mechanism to
provide smooth steering. It automatically provides
different optimum torques to the right and left wheels
according to road resistance and braking friction at
the wheels.
• The differential gear assembly is composed of the
differential case (5), differential pinions (9), differ-
ential side gears (8), differential pinion shaft (10),
37 spiral bevel gear (4), etc.
196W424A
