CK22/CK22H

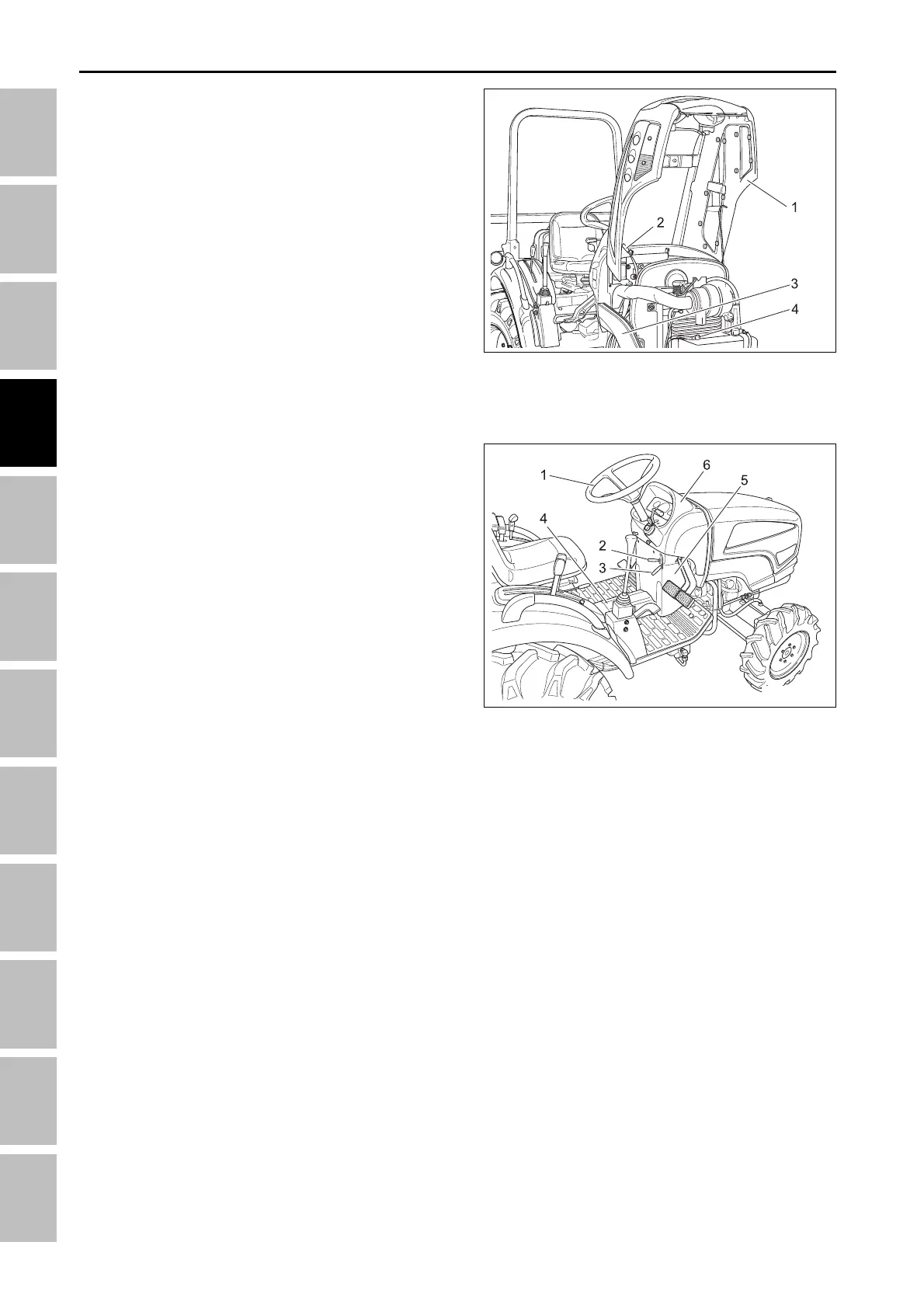

4.2 BONNET
1. After opening the bonnet (1) and disconnecting the
connector (2), remove the bolts and the bonnet.
2. Remove the side cover (LH/RH) (3).
3. Disconnect the battery terminal (-) (4).
(For assembly)
When connect the battery terminal (-), apply a little of
grease to it.
196W4C6A
196W4C7B
4.3 INSTRUMENT PANEL
1. Remove the steering wheel (1).
2. Remove the parking brake lever grip (2) and the
speed set lever grip (3).
3. Remove the transmission cover (4). (CK22)
4. Remove the instrument panel cover (down) (5).
5. Remove the engine stop wire & rotation cable from
the engine side.
6. Remove the bolt and raise the instrument panel
assembly (6) up slowly.
Disconnect the connectors at 5 points and remove
the instrument panel by pulling the wires.
(1) Bonnet (3) Side cover
(2) Connector (4) Battery terminal (-)
(1) Steering wheel
(2) Parking brake lever grip
(3) Speed set lever grip
(4) Transmission cover
(5) Instrument panel cover
(6) Instrument panel assembly
