CK22/CK22H
A. FRONT END WEIGHTS
The front end weights can be attached to the bumper.
See your implement operator’s manual for required
number of weights or consult your local DAEDONG
Dealer to use.
9.3.2 REAR BALLAST
Add weight to rear wheels if needed to improve traction
or for stability. The amount of rear ballast should be
matched to the job and the ballast should be removed
when it is not needed.
Weight should be added to the tractor in the form of
liquid ballast, rear wheel weights or a combination of
both.

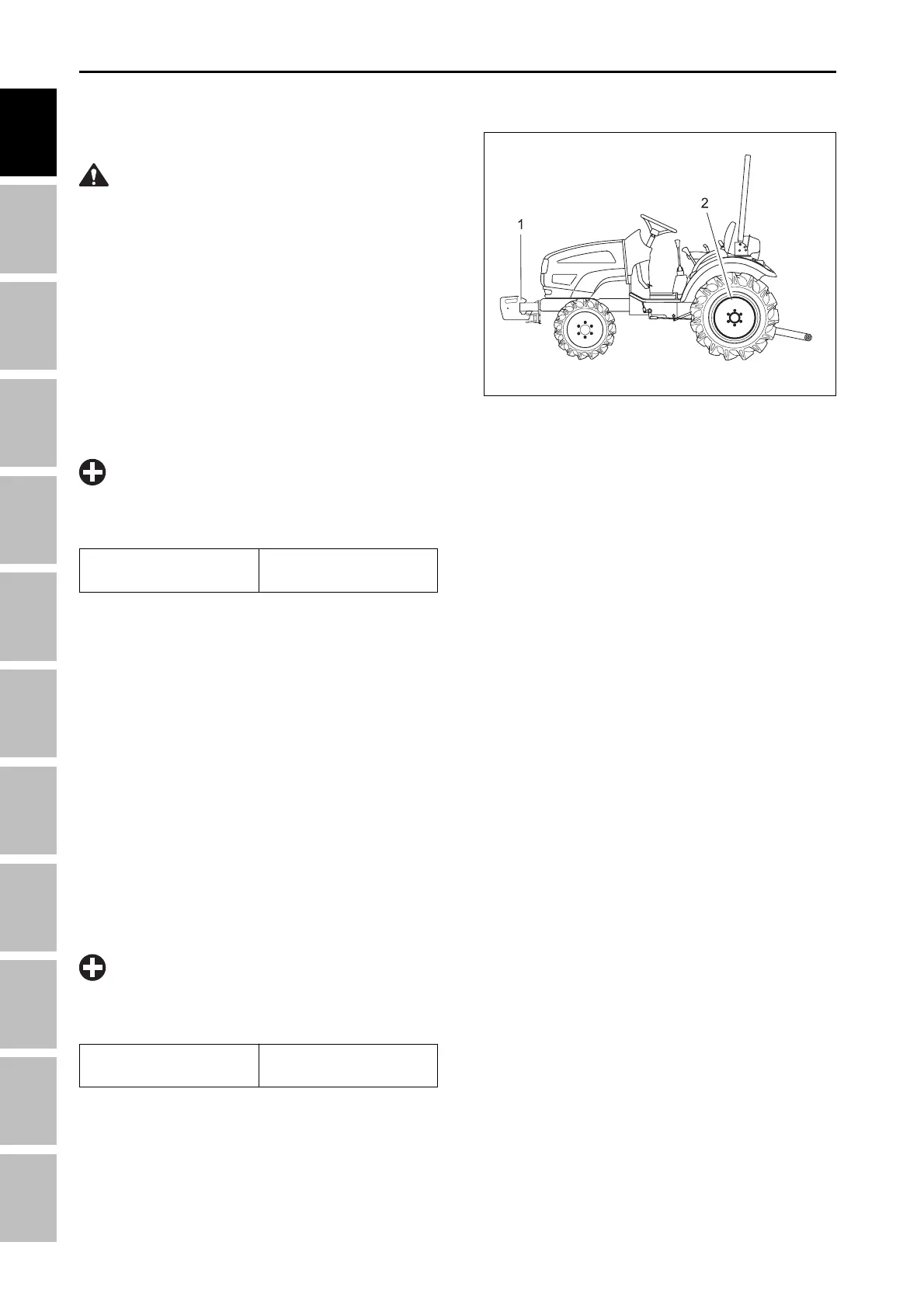

9.3 BALLAST
(1) Front end weights
(2) Rear wheel weights
196W163A
9.3.1 FRONT BALLAST
To avoid personal injury:
•
Additional ballast may be needed for transport-
ing heavy implements. When the implement is
raised, drive slowly over rough ground, regard-
less of how much ballast is used.
•
Do not fill the front wheel with ballast to maintain
steering control.
CAUTION
•
Do not overload tires.
•
Add no more weight than indicated in chart.
IMPORTANT
•
Do not overload tires.
•
Add no more weight than indicated in chart.
IMPORTANT
Maximum weight per
wheel
20 kg x 2 Pieces
(88 lbs.)
A. REAR WHEEL WEIGHTS (OPTION)
The rear wheel weights can be attached to the rear
wheel.
See your implement operator’s manual for required
number of weights or consult your local DAEDONG
Dealer to use.
Maximum weight
17 kg x 3 Pieces
(112 lbs.)
GENERAL - TIRES
