CK22/CK22H
E
B CAD
F
1
G
H

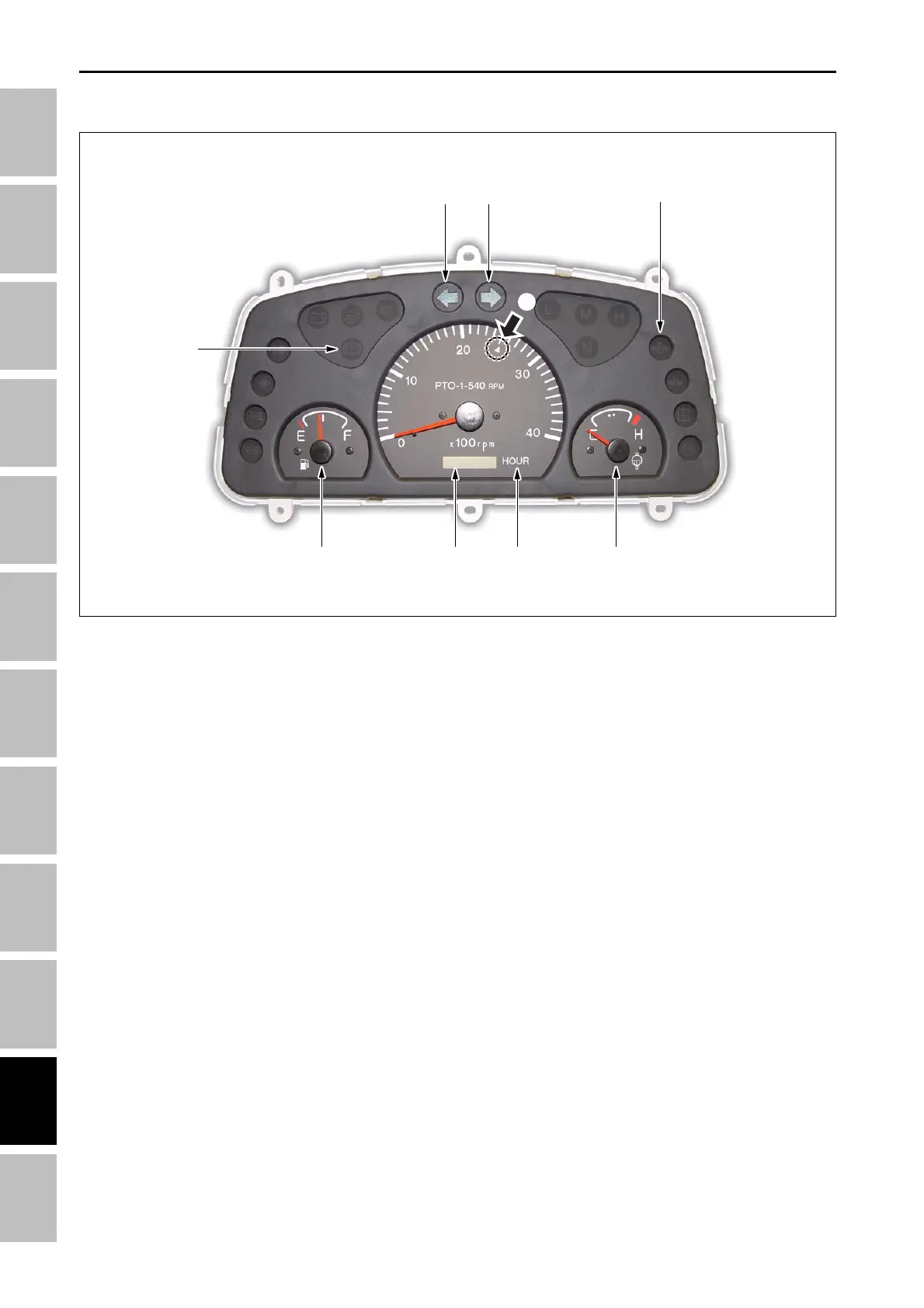

A. TACHOMETER
This shows the engine RPM electrically by the signal
from alterator. The mark(1) at 2,500 rpm indicates
that the PTO speed is 540 rpm.
B. FUEL GAUGE
This gauge indicates the amount of fuel remaining in
the tank.
C. ENGINE COOLANT TEMP. GAUGE
This gauge indicates the temperature of the engine
coolant. When the gauge enters the red zone, please
shut tractor OFF immediately. Never operate the tractor
while the gauge is in the red zone.
D. HOUR METER
1 Hz signal (1 wave for 1 second) is sent to the hour
meter on the instrument panel as 14 V of voltage is
supplied to the ON terminal of the preheat controller
while the alternator operates. Then, the hour meter on
the instrument panel can register correct time regard-
less of the engine rpm.
When 12 V of voltage is supplied to the ON terminal of
the preheat controller as the alternator stops, 1 Hz sig-
nal is no longer sent to the hour meter and the hour
meter stops operation.
ff
ff
f
196WA59A
ELECTRIC SYSTEM - OPERATION PRINCIPLE
2.5.1 GAUGES AND INDICATORS
E. TURN SIGNAL INDICATOR (LH)
F. TURN SIGNAL INDICATOR (RH)
G. PARKING BRAKE OPERATION INDICATOR
H. ENGINE OIL LOW PRESSURE WARNING
LAMP
Light will illuminate when the engine oil pressure is
below the set value. (0.5 ± 0.1 kgf/cm
2
) As soon as the
light illuminates, stop the engine and investigate the
cause.
(And contact the nearest DAEDONG Dealer.)
