CK22/CK22H

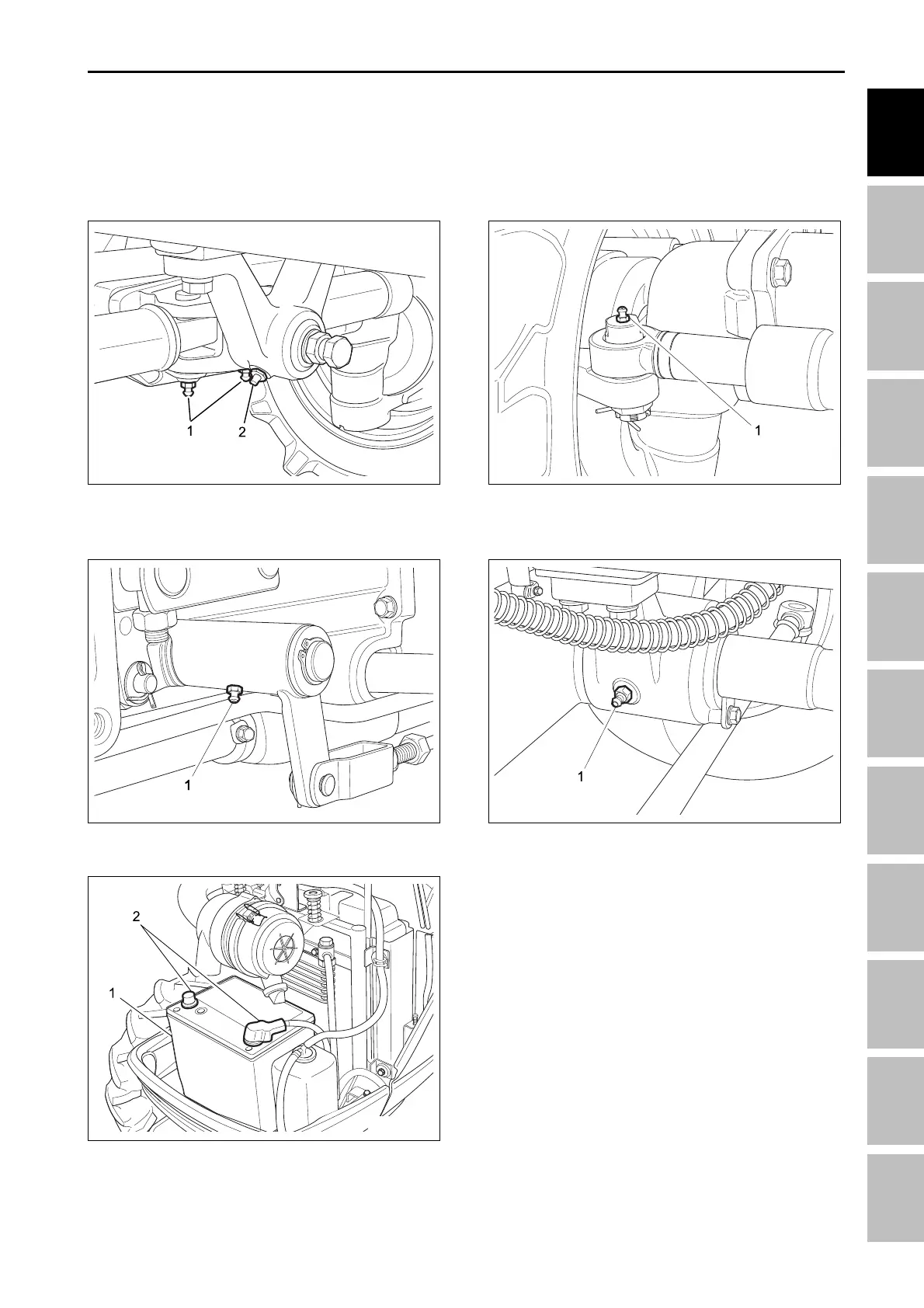

(1) Grease fitting (brake lever) (RH, LH)
(1) Grease fitting (rear bracket)
(1) Battery (2) Battery terminals
196W119 A 196W121A
8.2.1 LUBRICATING GREASE FITTINGS
Apply a small amount of multipurpose grease to the following points every 50 hours:
If you operated the machine in extremely wet and muddy conditions, lubricate grease fittings more often.
(1) Grease fitting (power steering cylinder) (RH, LH)
(2) Grease fitting (front bracket)
(1) Grease fitting (power steering cylinder) (RH, LH)
8.2 EVERY 50 HOURS
196W120A
196W118A
196W123A
GENERAL - CHECK AND MAINIENANCE
