4.2.2 START RELAY AND PREHEAT RELAY
If they have the same number of poles and the same
capacity, they are interchangeable.

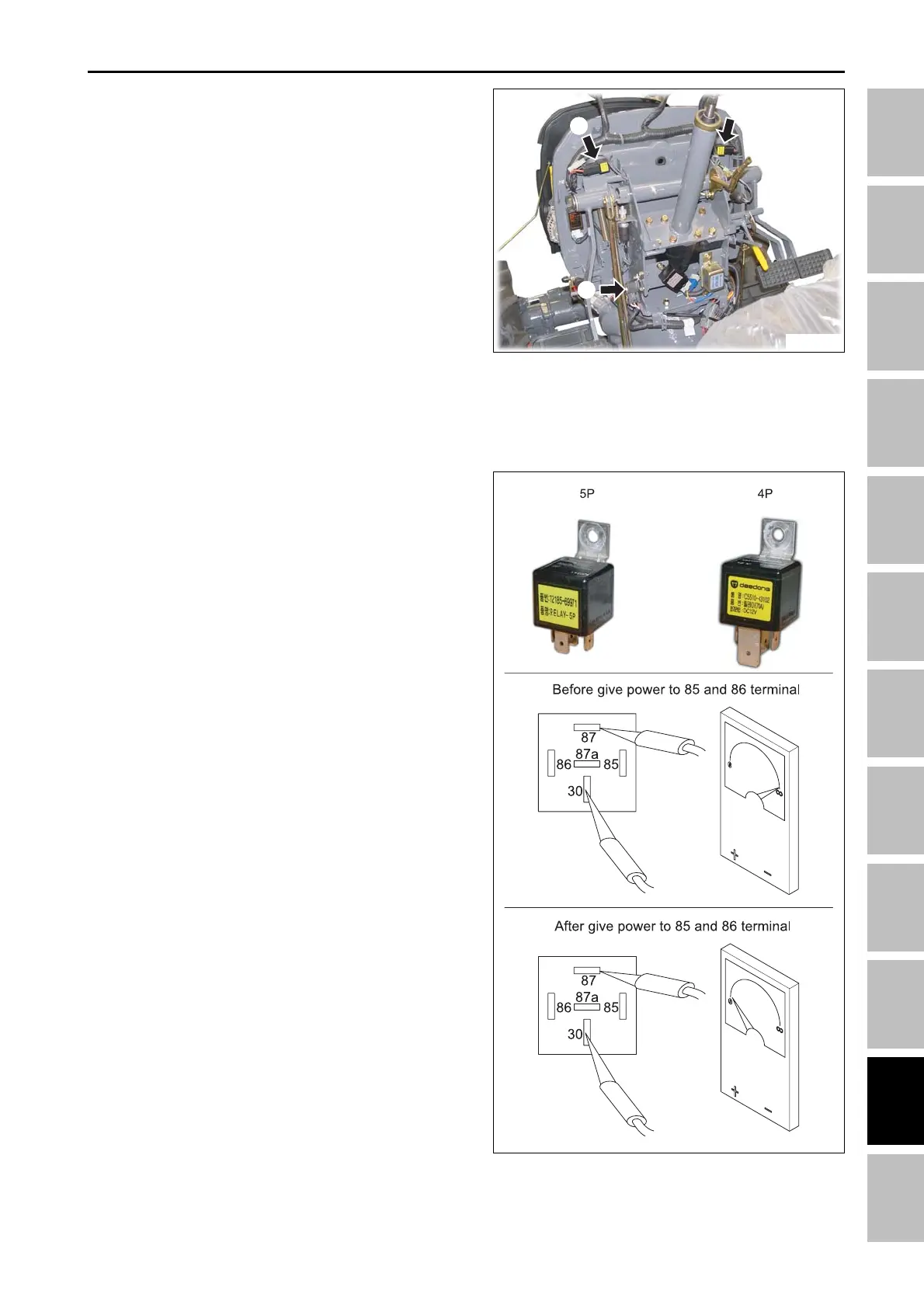

196WA21A
A. RELAY TESTING
To test a relay, disconnect it from the circuit. Use an
ohmmeter to verify non-energized conditions. Connect
the ohmmeter leads to terminals 87 and 30.
• There will be no continuity between terminals 87
and 30 if the relay is working properly.
There should be continuity across terminals 86
and 85.
Next use the ohmmeter to verify energized conditions.
Energize the coil by applying 12 volts of current across
terminals 85 and 86. Connect the ohmmeter leads to
terminals 87 and 30.
• There will be continuity between terminals 87 and
30 if the relay is working properly. Connect the ohm-
meter leads to terminals 87a and 30.
• There will be no continuity between terminals 87a
and 30 if the relay is functioning properly.
• If continuity readings do not match those stated in
the above test procedures, replace the relay.
196WA21B
(1) Start Relay (4P)
(2) Preheat Relay (5P)
(3) Pull-Coil Relay (4P)
