Daedong CK22 - Flasher Warning Light(CK22-USA); Flasher Warning Light(CK22-EU); Brake and Tail Lights(CK22-EU)

11-29
DS35-W00 May. 2007
TRANSMISSIONTRANSMISSION TRANSMISSIONTRANSMISSION
TRANSMISSION
ENGINEENGINE ENGINEENGINE
ENGINE
HSTHST HSTHST
HST
FRONT AXLEFRONT AXLE FRONT AXLEFRONT AXLE
FRONT AXLE
STEERINGSTEERING STEERINGSTEERING
STEERING
BARKEBARKE BARKEBARKE
BARKE
ELECTRICELECTRIC ELECTRICELECTRIC
ELECTRIC
INDEXINDEX INDEXINDEX
INDEX
HYDRAULICHYDRAULIC HYDRAULICHYDRAULIC
HYDRAULIC
GENERALGENERAL GENERALGENERAL
GENERAL
REAR AXLEREAR AXLE REAR AXLEREAR AXLE
REAR AXLE
CLUTCHCLUTCH CLUTCHCLUTCH
CLUTCH
CK22/CK22H
196WA54A
(1) Body (6) Bulb (12 V 21 W)
(2) Front lens (7) Bulb (12 V 5 W)
(3) Rear lens (8) Bulb (12 V 21 / 5 W)
(4) Screw (9) Bulb (12 V 21 W)
(5) Screw
4.3.5 FLASHER WARNING LIGHT(CK22-EU)
To replace a flasher warning light bulb:
1. Remove the two screws 4 and 5, then remove the
lens 2 and 3.
2. Push in on the bulb 6 and 9, and rotate counter-
clockwise in the socket to remove the old bulb.
3. Insert a new bulb into the socket and turn the bulb
clockwise until tightened.
4.3.6 BRAKE AND TAIL LIGHTS(CK22-EU)
To replace a faulty taillight bulb.
1. Release the rear lens (3).
2. Push in on the bulb (8) and rotate counterclockwise
in the socket to remove the old bulb.
3. Insert a new bulb into the socket and turn the bulb
clockwise until tightened.
• Replace the bulb with a new one of the same
capacity.
IMPORTANT
• Replace the bulb with a new one of the same
capacity.
IMPORTANT
196WA41A

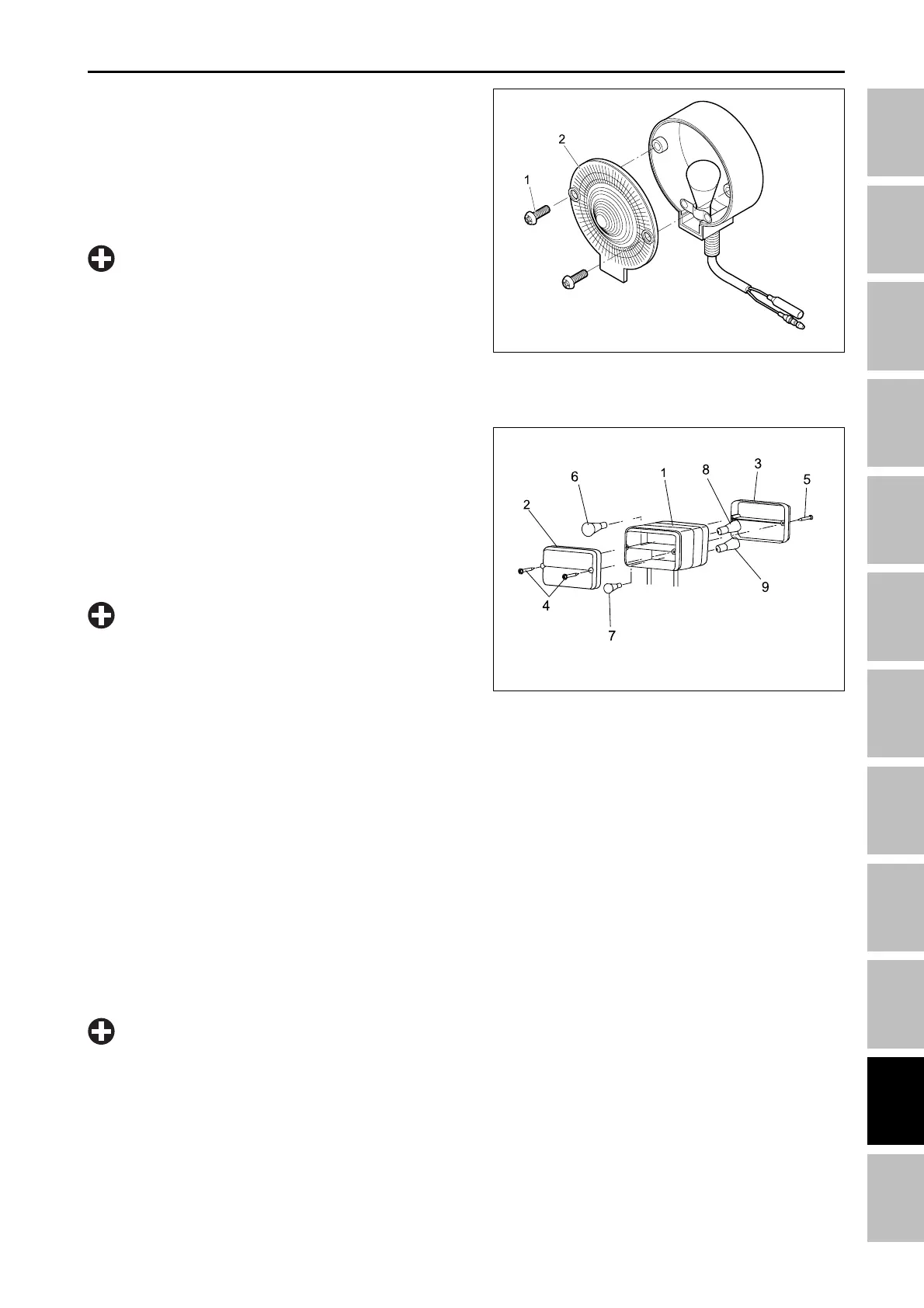

4.3.4 FLASHER WARNING LIGHT(CK22-USA)
To replace a flasher warning light bulb:
1. Remove the two screws, 1, then remove the lens, 2.
2. Push in on the bulb and rotate counterclockwise in
the socket to remove the old bulb.
3. Insert a new bulb into the socket and turn the bulb
clockwise until tightened.
(1) Screw (2) Lens
• Replace the bulb with a new one of the same
capacity.
IMPORTANT
ELECTRIC SYSTEM - SERVICING
