1-31
DS35-W00 May. 2007
CLUTCHCLUTCH
CLUTCHCLUTCH
CLUTCH
TRANSMISSIONTRANSMISSION
TRANSMISSIONTRANSMISSION
TRANSMISSION
ENGINEENGINE
ENGINEENGINE
ENGINE
HSTHST
HSTHST
HST
FRONT AXLEFRONT AXLE
FRONT AXLEFRONT AXLE
FRONT AXLE
STEERINGSTEERING
STEERINGSTEERING
STEERING
BARKEBARKE
BARKEBARKE
BARKE
ELECTRICELECTRIC
ELECTRICELECTRIC
ELECTRIC
INDEXINDEX
INDEXINDEX
INDEX
HYDRAULICHYDRAULIC
HYDRAULICHYDRAULIC
HYDRAULIC
GENERALGENERAL
GENERALGENERAL
GENERAL
REAR AXLEREAR AXLE
REAR AXLEREAR AXLE
REAR AXLE
CK22/CK22H
196W158B
PREHEAT
CONT/
TIMER
RELAY
CUST-
OMER
USE
WORK
LIGHT
HEAD
LAMP/
TAIL
LAMP
COMBI
METER
SPARE
SPARE SPARE
FUSE
PULLER
STOP
LAMP
TURN SIG-
NAL LAMP
/HORN
ENGINE
STOP
SOLENOID
10A 10A 10A 15A 5A 25A
10A 15A 25A
5A 10A 10A
196W157B
PROTECTED CIRCUIT
(1) Slow blow fuse
Capacity (A) Protected circuit
1
2
3
4
5
6
20
10
15
15
10
15
Flasher / Horn
Work light
Head lights / Tail light
Timer relay
Stop lights
Customer use
(1) Fuse box

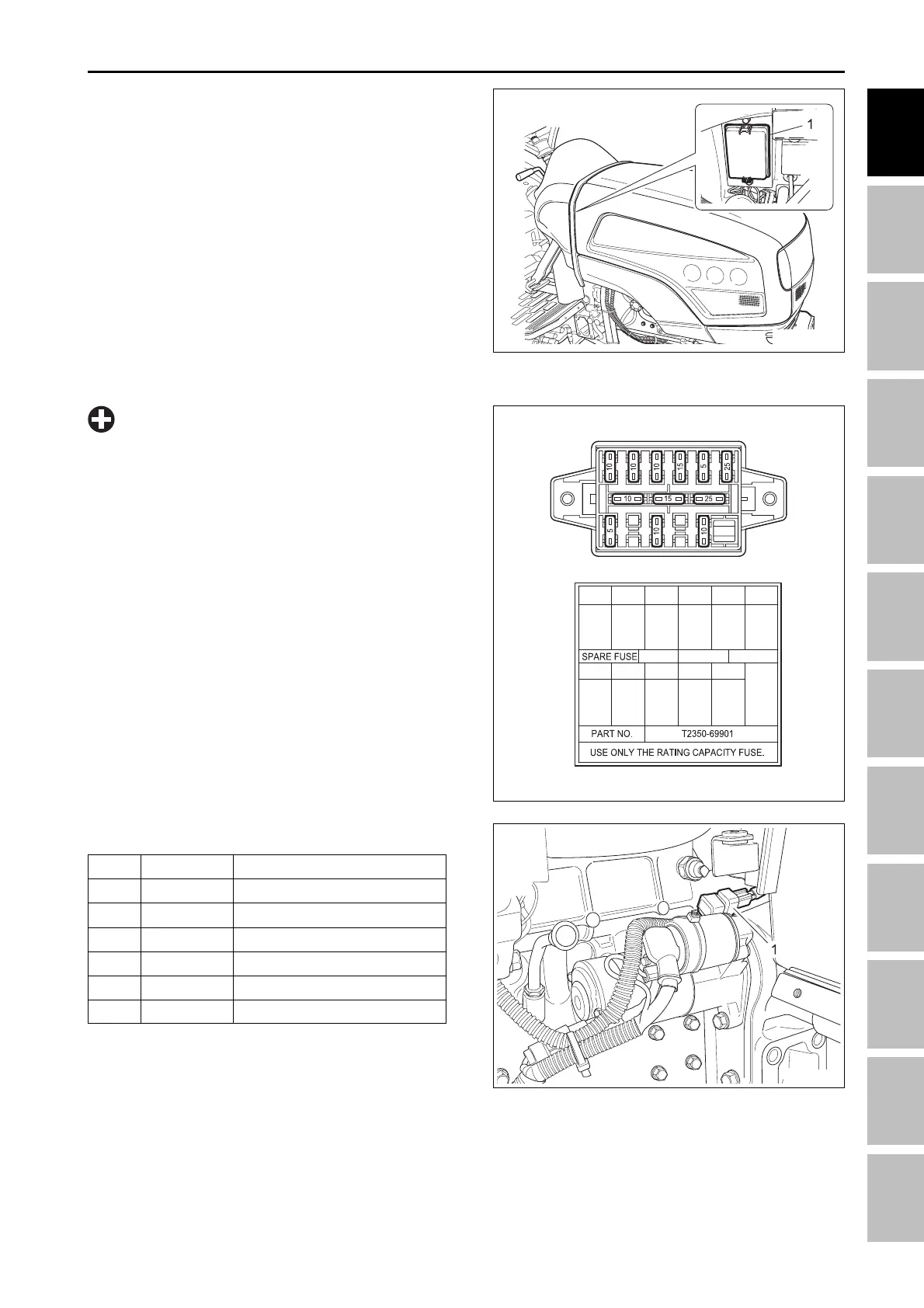

8.10.4 REPLACING FUSE
The tractor electrical system is protected from poten-
tial damage by fuses.
A blown fuse indicates that there is an overload or short
somewhere in the electrical system.
If any of the fuses should blow, replace with a new one
of the same capacity.
196W156B
•
Before replacing a blown fuse, determine why the
fuse blew and make any necessary repairs. Fail-
ure to follow this procedure may result in serious
damage to the tractor electrical system. Refer to
the troubleshooting section of this manual or your
local DAEDONG Dealer for specific information
dealing with electrical problems.
IMPORTANT
GENERAL - CHECK AND MAINIENANCE
