CK22/CK22H
(1) Front sheel drive shaft1
(2) 18T gear
(3) 38T gear
(4) 28T gear
(5) Front wheel shifter
(6) Front weel drive shaft 2
196W412A
B. CK22H
Four wheel drive or two wheel drive is selected by op-
erating the front wheel drive lever to shift the front wheel
shifter (14).
When the front wheel drive lever is set to disengaged,
front wheel gear is in neutral and power is not trans-
mitted to the front wheel drive shaft 2 (15).
When the front wheel drive lever is set to engaged,
front wheel shift (14) splined with front wheel drive shaft
2 (15) slides to the right side to engage with spline
Boss.
ff
ff

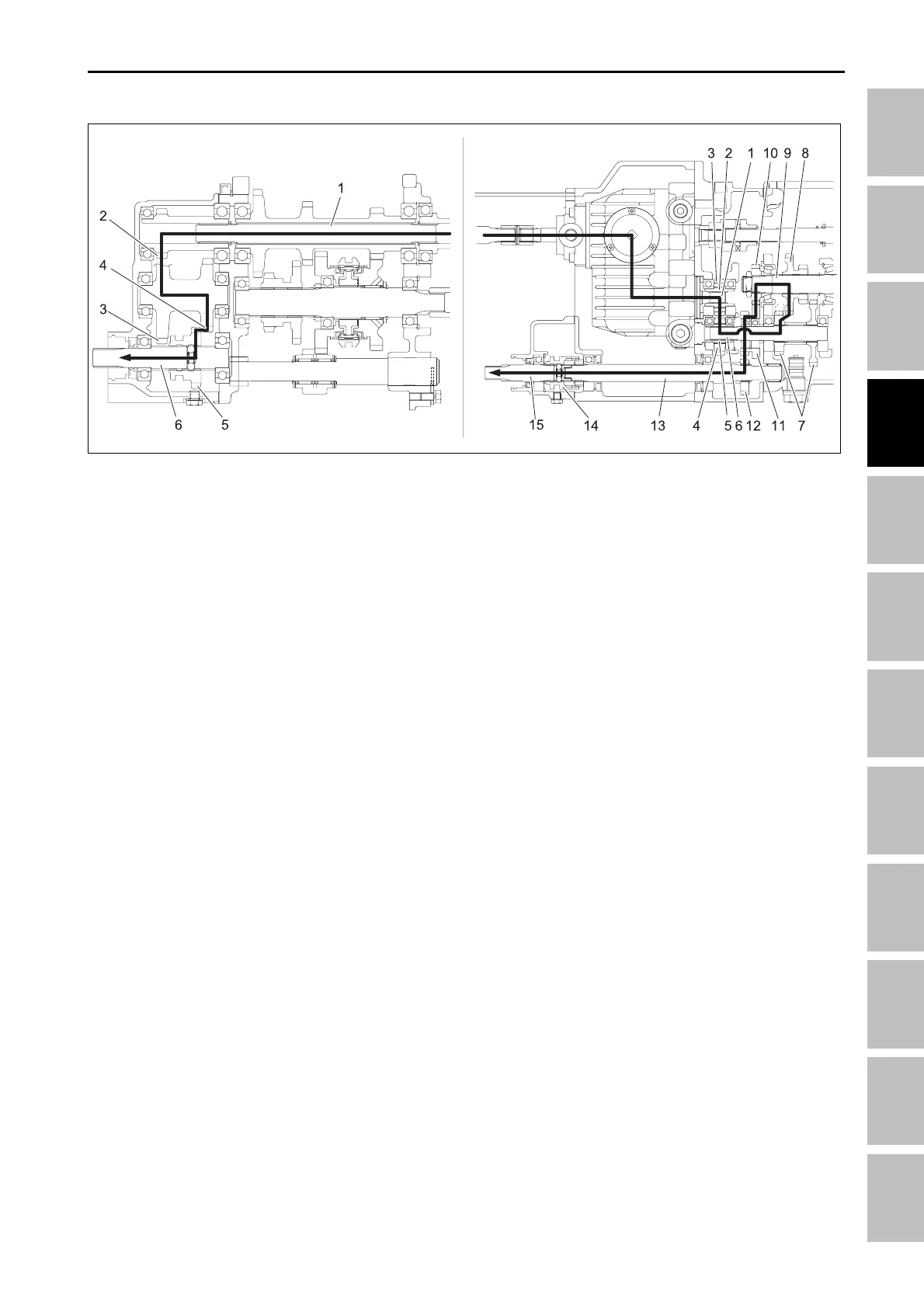

f FRONT WHEEL DRIVE ENGAGEMENT
HST output shaft (1) → Spline boss (2) → 19T gear (3)
→ 23 gear (4) → spline boss (5) → Range shaft (6) →
23T (36T) gear (7) → 20-33T gear (8) → Pinion shaft
(9) → 20T gear (10) → 23-35T gear (11) → 23T gear
(12) → Front wheel drive shaft 1 (13) → Front wheel
shaft (14) → Front wheel drive shaft 2 (15).
(1) HST output shaft (9) Pinion shaft
(2) Spline boss (10) 20T gear
(3) 19T gear (11) 23-35T gear
(4) 23 gear (12) 23T gear
(5) Spline boss (13) Front wheel drive shaft 1
(6) Range shaft (14) Front wheel shaft
(7) 23T (36T) gear (15) Front wheel drive shaft 2
(8) 20-33T gear
2.2.5 FRONT WHEEL DRIVE
A. CK22
Four wheel drive or two wheel drive is selected by op-
erating the front wheel drive lever to shift the front wheel
shifter (5).
When the front wheel drive lever is set to disengaged,
front wheel gear is in neutral and power is not trans-
mitted to the front wheel drive shaft 2 (6).
When the front wheel drive lever is set to engaged,
front wheel shift (5) splined with front wheel drive shaft
2 (6) slides to the right side to engage with 28T gear
(4).
ff
ff
f FRONT WHEEL DRIVE ENGAGEMENT
Front wheel drive shaft 1 (1) → 18T gear (2) → 38T
gear (3) → 28T gear (4) → Front wheel shifter (5) →
Front wheel drive shaft 2 (6).
CK22 CK22H
TRANSMISSION - OPERATING PRINCIPLE
