CK22/CK22H
8.2.2 CHECKING WHEEL BOLT TORQUE

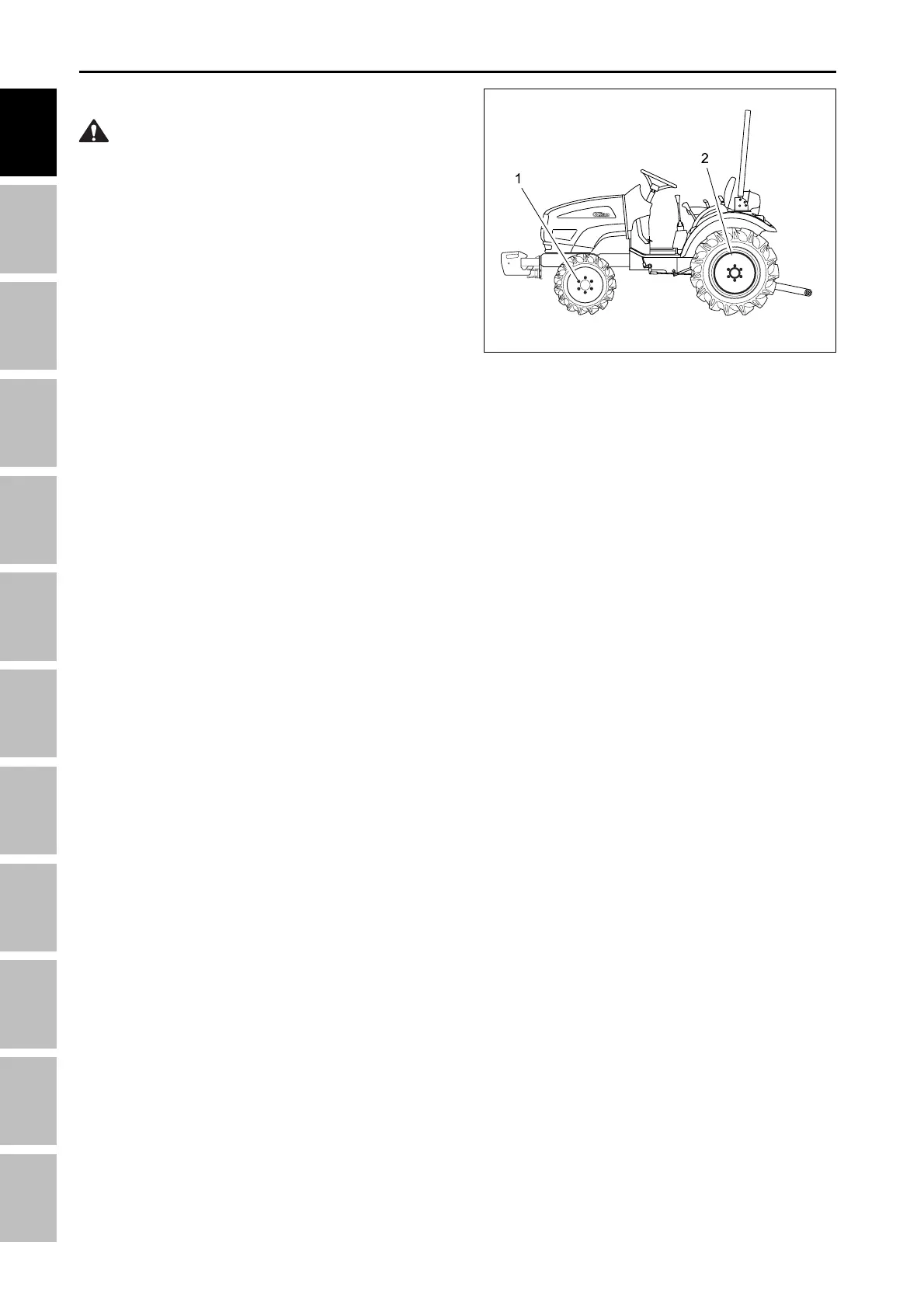

(1) Bolt: 83 Nm (8.5 kgf-m, 62 lb-ft)
Nut: 68 Nm (7 kgf-m, 50 lb-ft)
(2) Bolt, Nut: 215 Nm (22 kgf-m, 160 lb-ft)
Check wheel bolts and nuts regularly especially when
new. If they are loose, tighten them as follows.
196W124A
To avoid personal injury:
• Never operate tractor with a loose rim, wheel, or
axle.
• Any time bolts and nuts are loosened, retighten
to specified torque.
• Check all bolts and nuts frequently and keep them
tight.
CAUTION
GENERAL - CHECK AND MAINIENANCE
