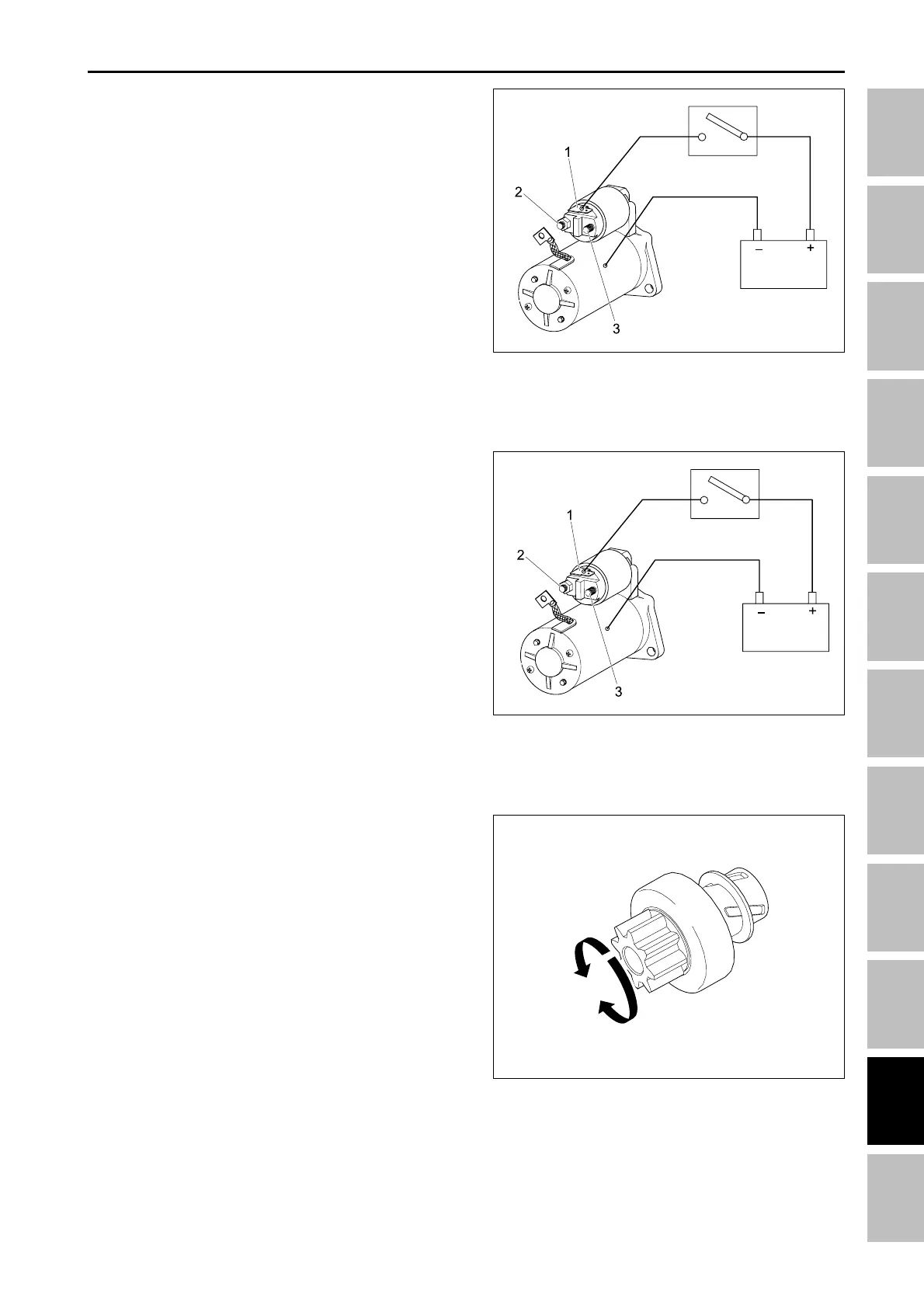

C. HOLD IN TEST OF MAGNETIC SWITCH
1. Disconnect M terminal of the starter.
2. Connect battery negative terminal to M terminal of
the starter motor.
3. Connect Battery positive terminal to S terminal with
a switch placed in the circuit.
4. Switch “ON”, the pinion will moves.
5. If the pinion does not move, change the magnetic
switch.
NOTES:
• Operating for more than 5 sec. could damage the
coil.
D. HOLD IN TEST OF SOLENOID
1. Disconnect M terminal of the starter.
2. Connect battery negative terminal to chassis of the
starter motor.
3. Connect battery positive terminal to S terminal use
a switch.
4. Pull the pinion out. If the pinion does not return
quickly, the solenoid is faulty.
NOTES:
• Operating for more than 5 sec. could damage the
coil.
(1) S terminal (3) B terminal
(2) M terminal
(1) S terminal (3) B terminal
(2) M terminal
E. TEST OF OVER RUN CLUTCH
1. Check the teeth of the pinion and spline. If there is
damage, replace the parts. Also check the teeth of
the flywheel.
2. Rotate the pinion. Only rotate the pinion clockwise
as it is one-way clutch type.
196WA34A
ELECTRIC SYSTEM - SERVICING
