CK22/CK22H

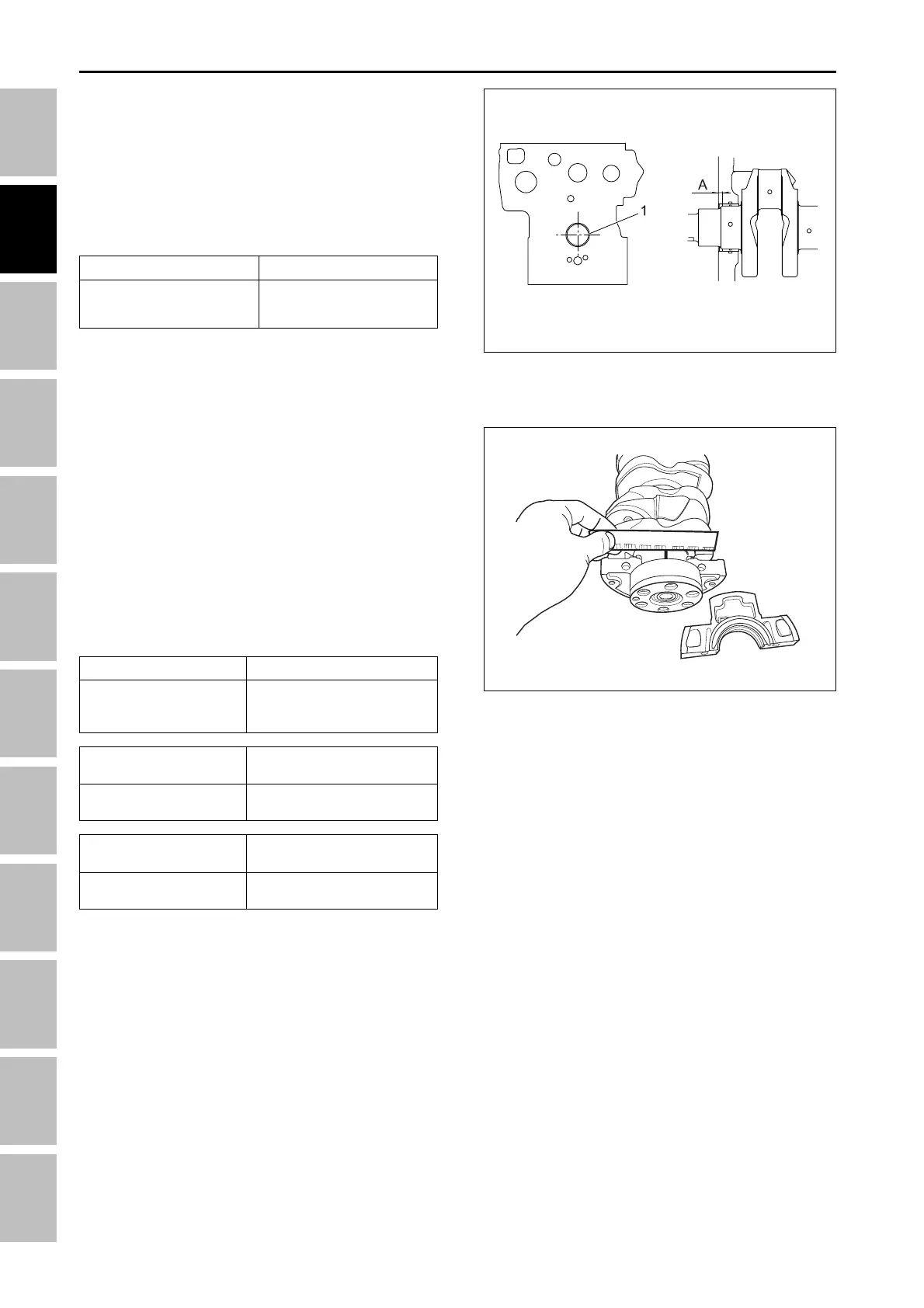

E. CRANKSHAFT JOURNAL AND BEARING 2
OIL CLEARANCE
1. Paste a press gauge with grease on the crankshaft
bearing
2. Install the bearing cap and tighten the screws to the
specified torque once, and remove the cap again.
3. Detach the bearing case slowly, and measure the
depression of the press gauge with a sheet of
gauge (paper).
4. If the clearance exceeds the allowable limit, replace
the bearing.
196W2E9A
Crankshaft journal O.D.
Crankshaft bearing 2 I.D.
43.934 ~ 43.950 mm
1.7297 ~ 1.7303 in.
43.984 ~ 44.026 mm
1.7317 ~ 1.7333 in.
Item
Bearing cap
Tightening torque
20 ~ 24 Nm
2.0 ~ 2.4 kgf-m
15 ~ 17 lb-ft
Reference value
Allowable limit
0.034 ~ 0.092 mm
0.0013 ~ 0.0036 in.
0.20 mm
0.0079 in.
D. REPLACING CRANKSHAFT BEARING 1
1. Press out the bearing 1 with crankshaft replacing
tool.
2. Clean a new bearing 1 and bore, and apply engine
oil to them.
3. Press fit a new bearing 1 using a inserting tool,
taking due care to see that the seam of bearing 1
faces the exhaust manifold side.
(1) Seam
196W2E8A
Item
Depressed depth of
bush at block
Factory spec.
4.2 ~ 4.5 mm
0.165 ~ 0.177 in.
ENGINE - SERVICING
