CK22/CK22H

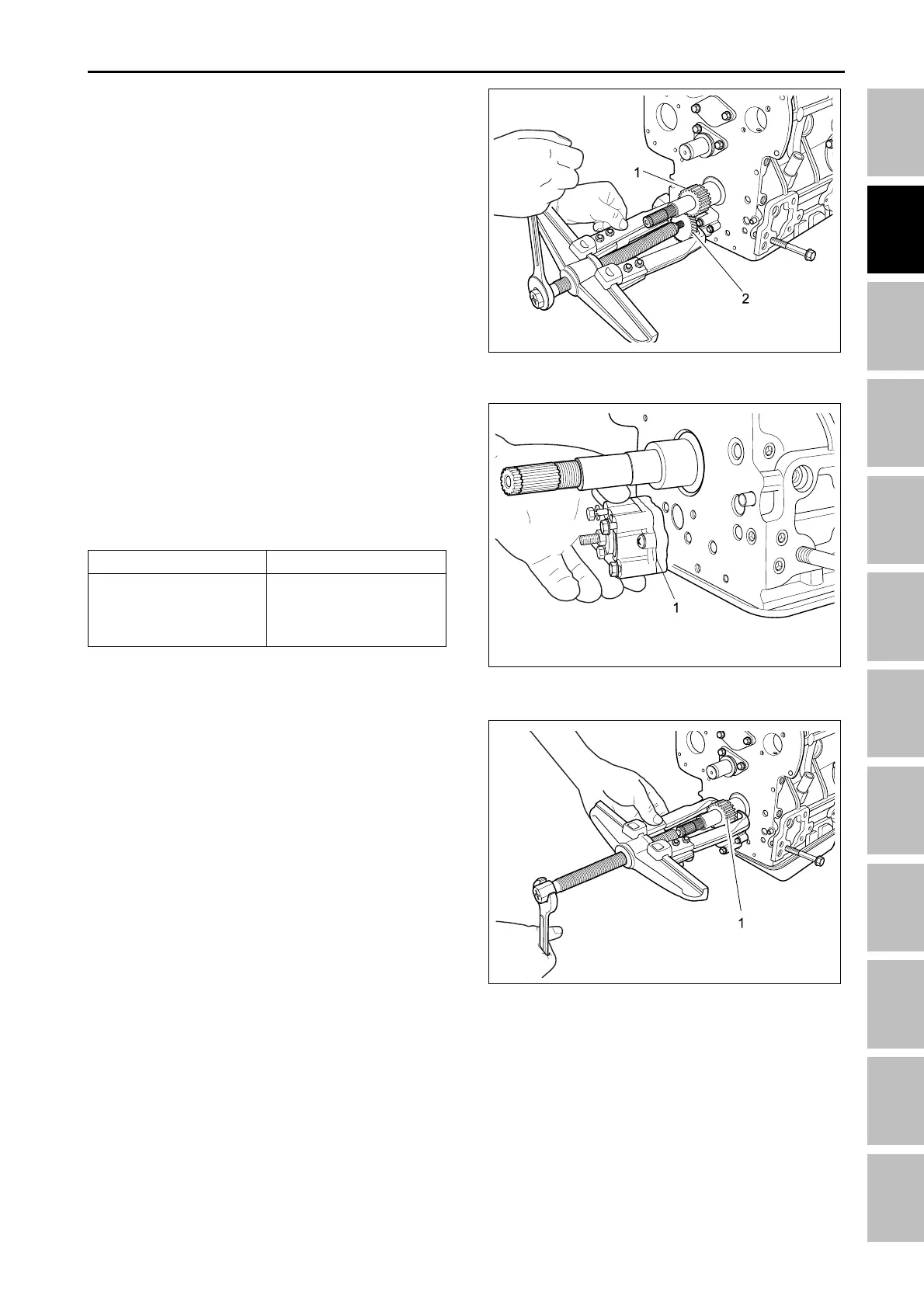

G. REMOVING OIL PUMP
Remove the four oil pump mounting bolts. Detach the
oil pump.
(Note for reassembling)
• Remove the gear with crank gear removal tool or
pulley removal tool.
(1) Oil pump assembly
(1) 13T gear (crank gear)
196W288A
196W289A
Item
Bolts of oil pump
Tightening torque
9.8 ~ 11.8 Nm
1.0 ~ 1.2 kgf-m
7.2 ~ 8.7 lb-ft
H. REMOVING CRANK GEAR
Remove the gear with crank gear removal tool or pulley
removal tool.
(Note for reassembling)
• Check to see that the key is on the crankshaft.
• Heat the crank gear to about 80°C (176°F), and fit
on the crankshaft. If there is fear of the shaft being
damaged, heat the gear more and fit.
(1) Crank gear (2) Oil pump drive gear
196W287A
F. REMOVING OIL PUMP DRIVE GEAR
1. Remove the nut from oil pump.
2. Draw out the oil pump drive gear with gear puller.
(Note for reassembling)
• Ensure there is a feather key.
ENGINE - SERVICING
