CK22/CK22H

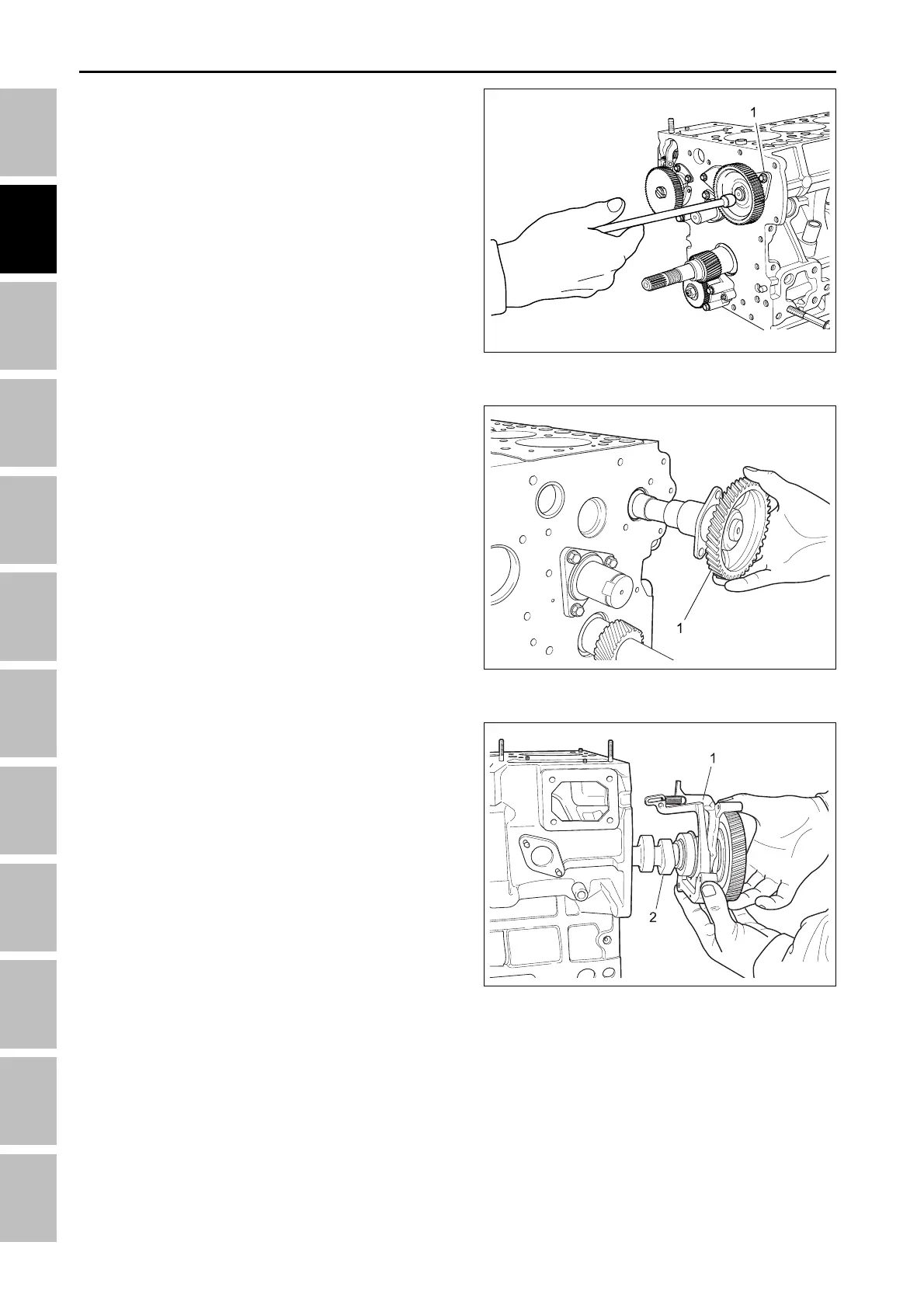

C. REMOVING CAMSHAFT STOPPER
1. Align the round hole on the cam gear with the cam-
shaft stopper mounting bolt position.
2. Remove the camshaft stopper mounting bolt.
3. Detach the camshaft stopper.
(1) Camshaft stopper
196W283A
D. REMOVING GEAR AND CAMSHAFT
Draw the camshaft and the cam gear.
(Note for reassembling)
• Apply a thin coat of engine oil to the camshaft be-
fore installation.
E. REMOVING FORK LEVER ASSEMBLY AND
FUEL INJECTION CAMSHAFT
1. Remove the fuel injection camshaft stopper.
2. Remove the two fork lever holder mounting bolts.
3. Detach the fork lever assembly and fuel camshaft.
(1) Fork lever assembly
(2) Fuel camshaft assembly
196W284A
196W285B
(1) Camshaft assembly
ENGINE - SERVICING
