CK22/CK22H
1. Remove the coupling (24), bolt (25), bolt (23) and
stopper (22).
2. Remove the bearing case (26).
3. Remove the Cir-clip (27).
4. Draw out the front wheel drive shaft 1 (28) to the
front side.

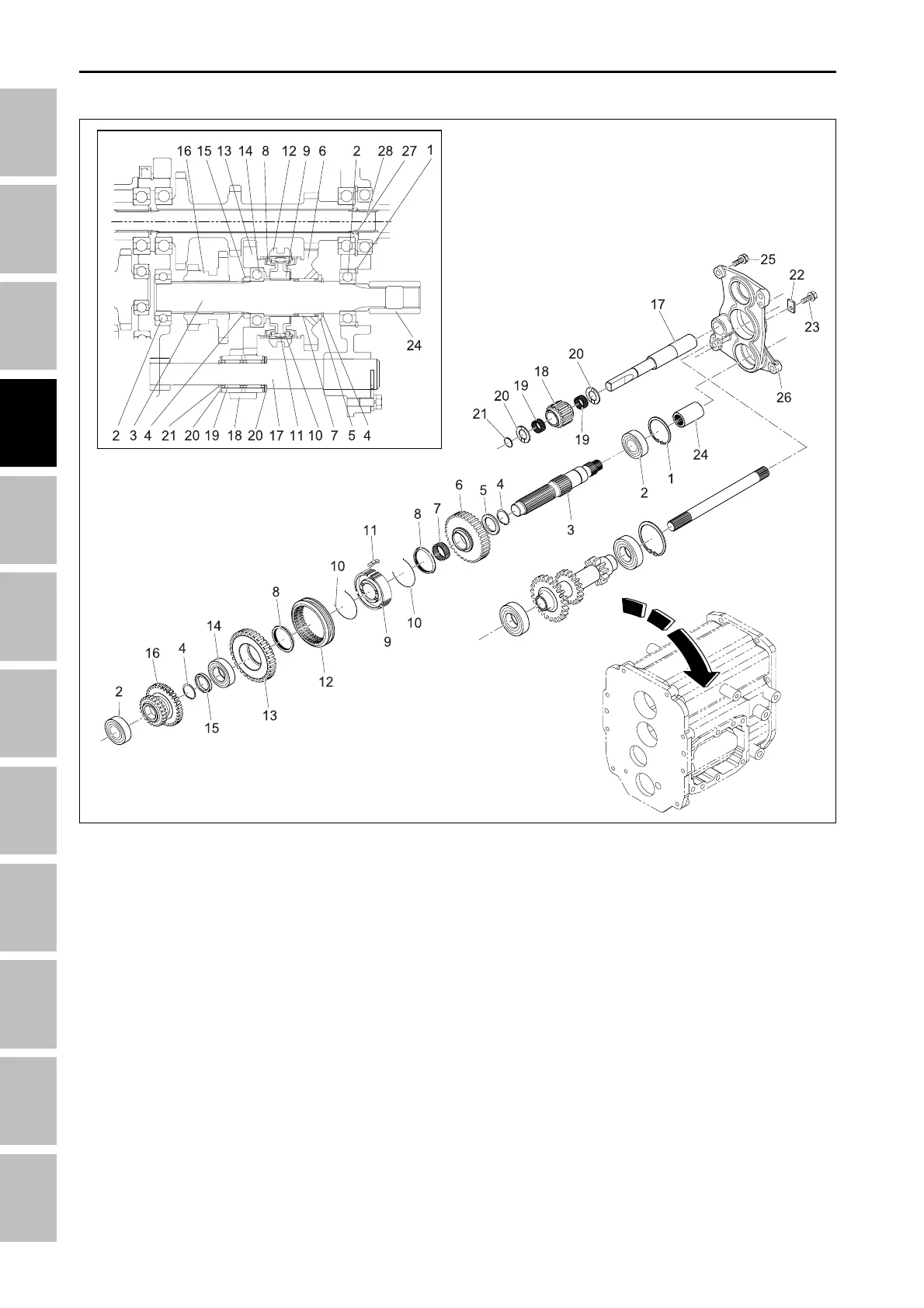

D. SEPARATING THE COUNTER SHAFT
(1) Cir-clip
(2) Ball bearing
(3) Counter shaft
(4) Cir-clip
(5) Collar
(6) 37T gear
(7) Needle bearing
196W465 A
(8) Synchronize ring
(9) Synchro hub
(10) Spring
(11) Synchronize key
(12) Shifter
(13) 40T gear
(14) Ball bearing
(15) Spacer
(16) 22T-32T gear
(17) Reverse shaft
(18) 16T gear
(19) Needle bearing
(20) Thrust collar
(21) Cir-clip
(22) Stopper
(23) Bolt
(24) Coupling
(25) Bolt
(26) Bearing case
(27) Cir-clip
(28) Front wheel drive
shaft 1
TRANSMISSION - SERVICING
