CK22/CK22H

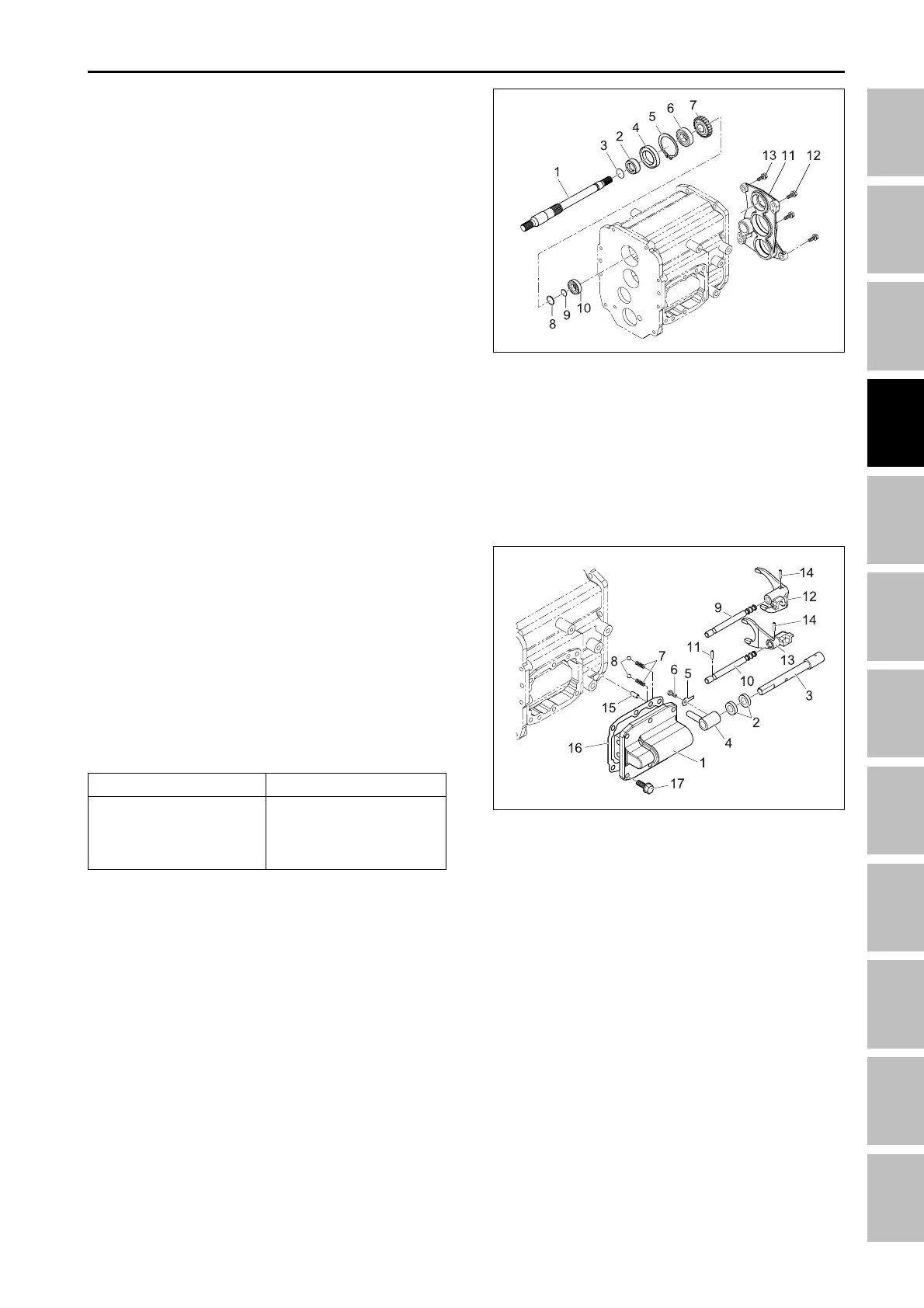

B. SEPARATING THE PTO DRIVE SHAFT 1
1. Remove the bolts (11) and bearing case (12).
2. Tap out the PTO drive shaft 1 with spacer 1 (2),
O-ring (3), ball bearing (6), 22T gear (7), Cir-
clip (8), Cir-clip (9), ball bearing (10) to the rear
side.
(1) PTO drive shaft 1 (8) Cir-clip
(2) Spacer 1 (9) Cir-clip
(3) O-ring (10) Ball bearing
(4) Oil seal (11) Bolt
(5) Cir-clip (12) Bearing case
(6) Ball bearing (13) Bolt
(7) 22T gear
196W464A
C. MAIN SHIFT LEVER
1. Remove the bolt (17) and main shift lever assembly.
2. Tap out the spring pin (14).
3. Remove the ball (8), spring (7), main fork rod 1 (9),
main fork rod 2 (10), pin (11), main shift fork (12)
and main shift fork 2 (13).
4. Remove the cocking on torque mounting washer
(5) and remove the bolt (6).
5. Remove the main shift rod (3), main shift arm (4)
and oil seal (2).
(1) Main shift cover (10) Main fork rod 2
(2) Oil seal (11) Pin
(3) Main shift rod (12) Main shift fork 1
(4) Main shift arm (13) Main shift fork 2
(5) Washer (14) Spring pin
(6) Lock bolt (15) Straight pin
(7) Spring (16) Gasket
(8) Ball (17) Bolt
(9) Main fork rod 1
196W467A
Item
Mounting bolt
Tightening torque
23.5 ~ 27.5 Nm
2.4 ~ 2.8 kgf-m
17.3 ~ 20.3 lb-ft
TRANSMISSION - SERVICING
