CK22/CK22H
1
1
Shaft to busing
clearance
Shaft, right O.D
Shaft, left O.D
Factory specification
0.075 ~ 0.114 mm
0.0030 ~ 0.0045 in.
40.020 ~ 40.040 mm
1.5756 ~ 1.5763 in.
35.020 ~ 35.040 mm
1.3787 ~ 1.3795 in.

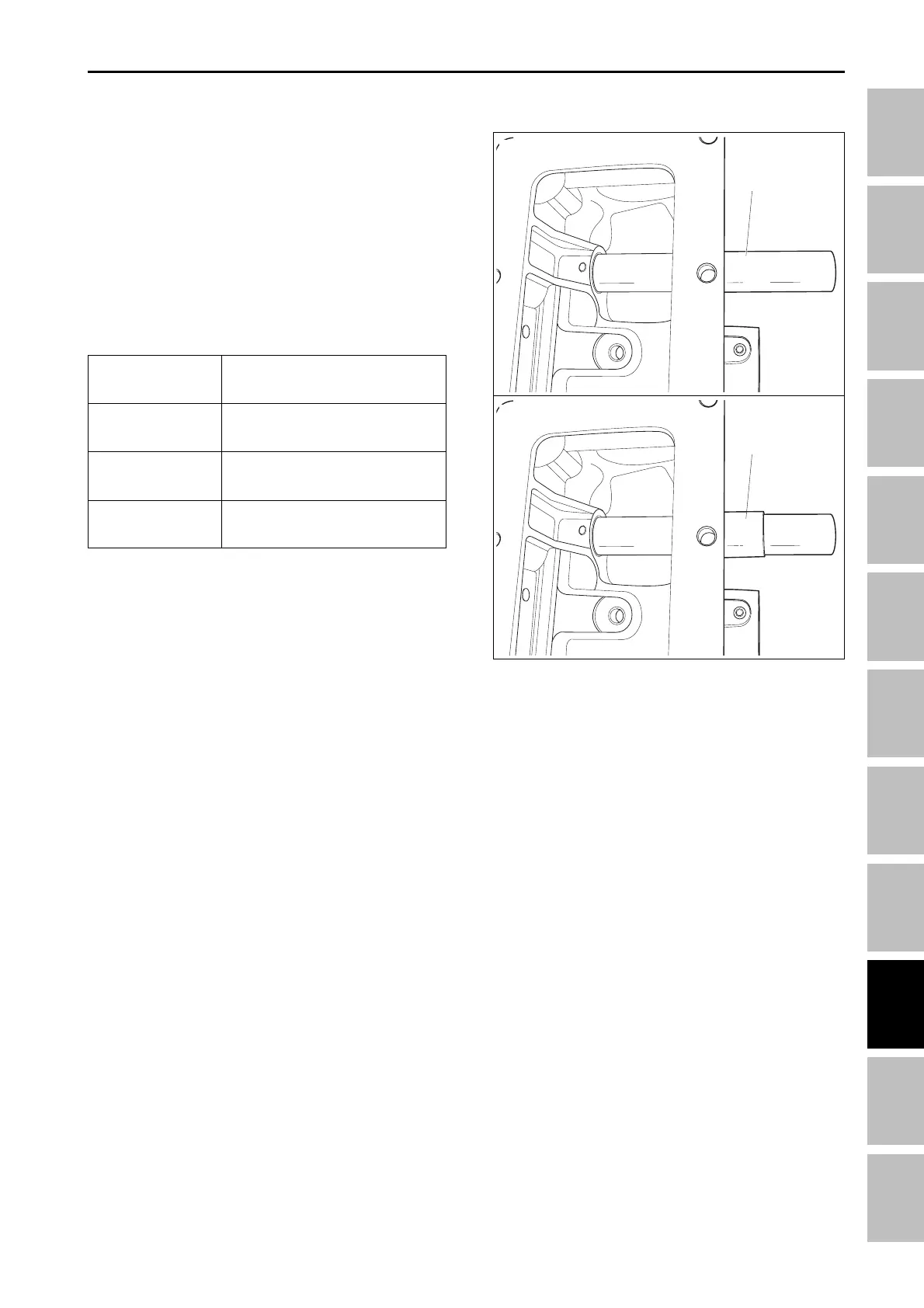

8. If bushings require replacement use appropriate
bushings driver to remove shaft bushings. Drive
busing out from inside of housing. Replace by driv-
ing in from outside of housing.
NOTE:
• THE FOLLOWING MESURMENTS ARE FOR NEW
COMPONENTS, AND DO NOT REFLECT WEAR
SPECIFICATIONS.
Rockshaft Specifications:
196W9C0A
Item
HYDRAULIC SYSTME - SERVICING
REMOVAL
196W980B
(1) Bushing driver
INSTALLATION
